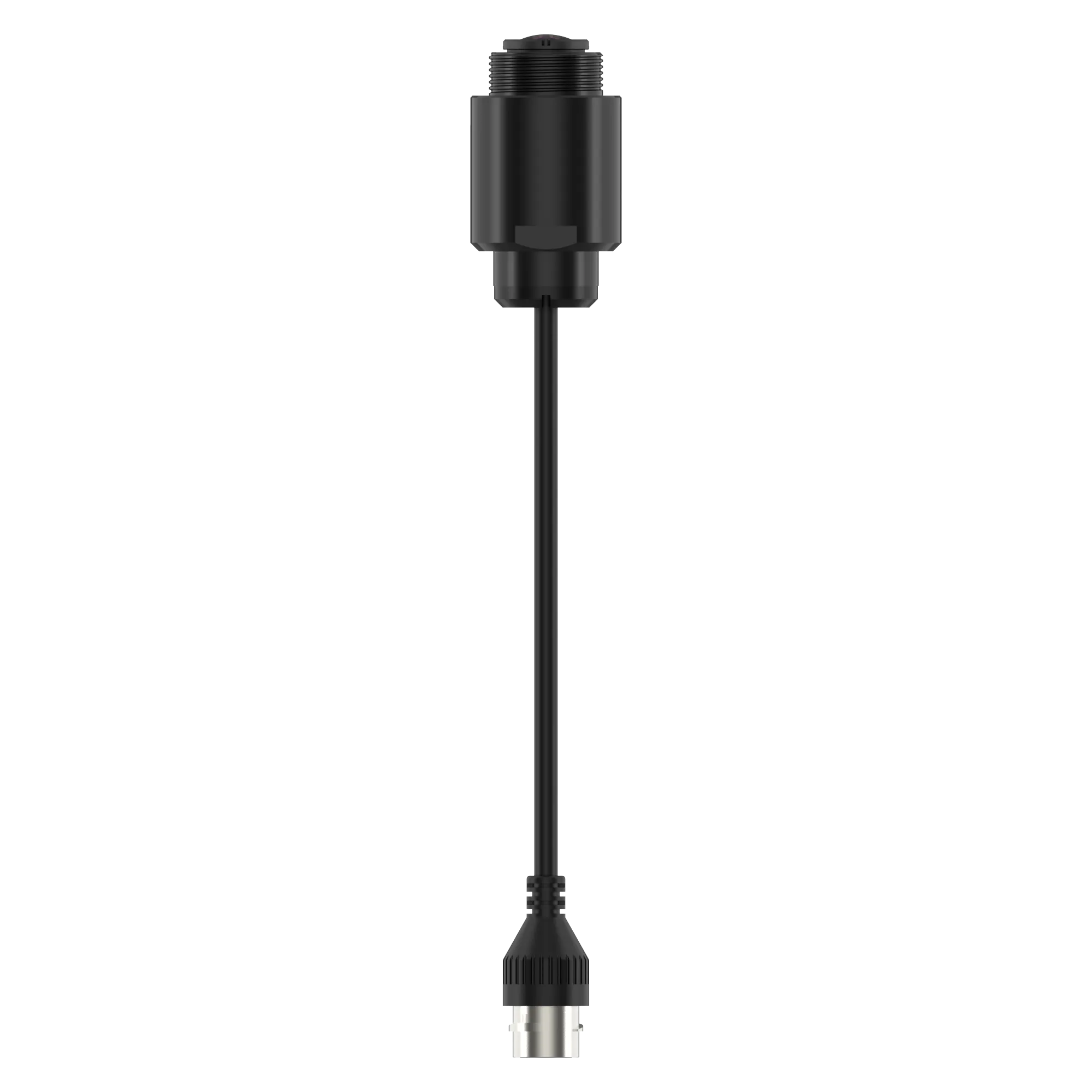

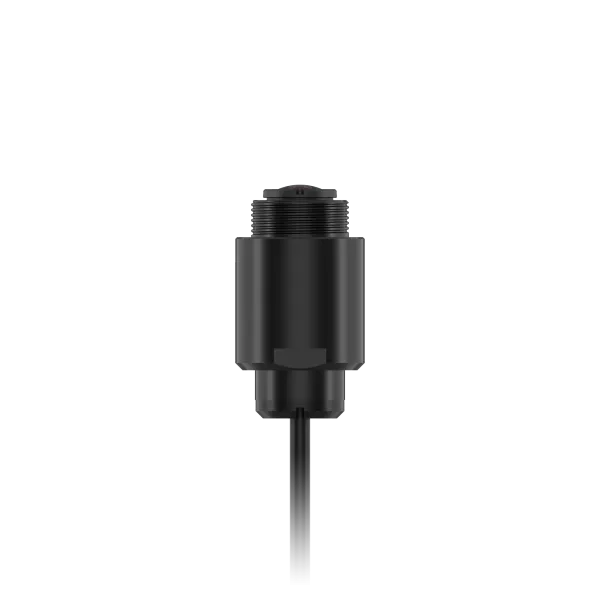

Hanwha - SLA-T2480WA - Outdoor rated 2.4mm fixed lens module, straight body style, compatible with PNM-9000QB and XNB-6002, 2MP @ 30fps, 0.45 Lux, 138º horizontal field of view, 8 meters/ 26 feet cable, IP66, NEMA 4X, IK10, Operating temperature -30°
Part number:
SLA-T2480WA
Price:
Outdoor rated 2.4mm fixed lens module, straight body style, compatible with PNM-9000QB and XNB-6002, 2MP @ 30fps, 0.45 Lux, 138º horizontal field of view, 8 meters/ 26 feet cable, IP66, NEMA 4X, IK10, Operating temperature -30°C~+55°C(-22°F ~+131°F)
Features:
- Outdoor rated 2.4mm fixed lens module
- Straight body style
- Compatible with PNM-9000QB and XNB-6002
- 2MP @ 30fps
- 0.45 Lux, 138º horizontal field of view
- 8 meters/ 26 feet cable
- IP66
- NEMA 4X
- IK10
- Operating temperature -30°C~+55°C(-22°F ~+131°F)
| Specifications | |
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Min. Illumination | Color: 0.045Lux(F2.0, 1/30sec, 30IRE) BW: 0.045Lux(F2.0, 1/30sec, 30IRE) * with PNM-9000QB, XNB-6002 |
| Lens | |
| Focal Length (Zoom Ratio) | 2.4mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 138° / V: 73° / D: 165° |
| Mount Type | RJ12 connected with main unit |
| Focus Control | Fixed |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~95% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66, NEMA 4X |
| Mechanical | |
| Color / Material | Black / Plastic |
| Product Dimensions / Weight | ø24x49.8mm(ø0.94x1.96"), 101g(0.22lb) Cable: 8m(26.2ft) |
