Trendnet - TPL-430AP - AC1200 WiFi Everywhere Powerline AP

Part number:

TPL-430AP

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

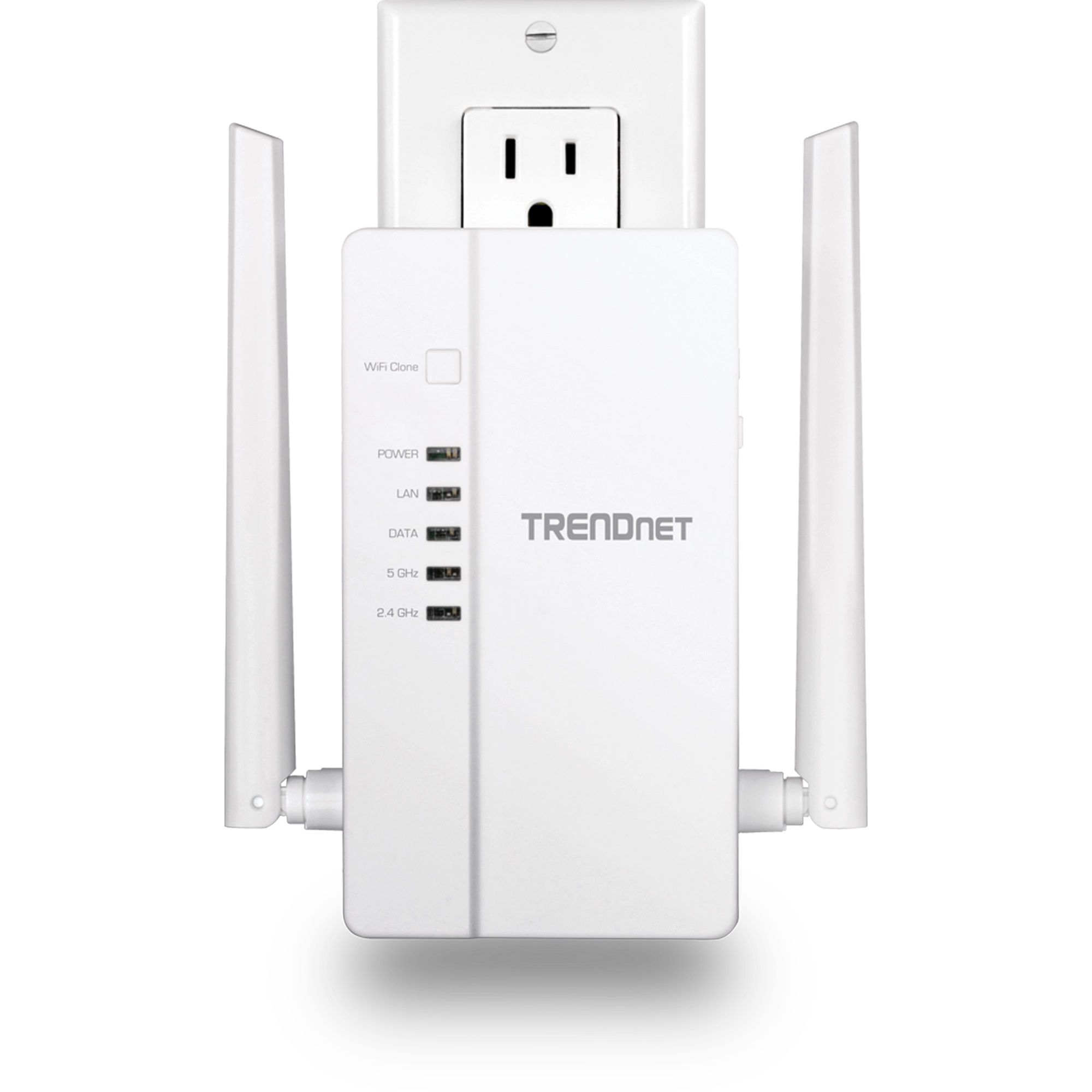

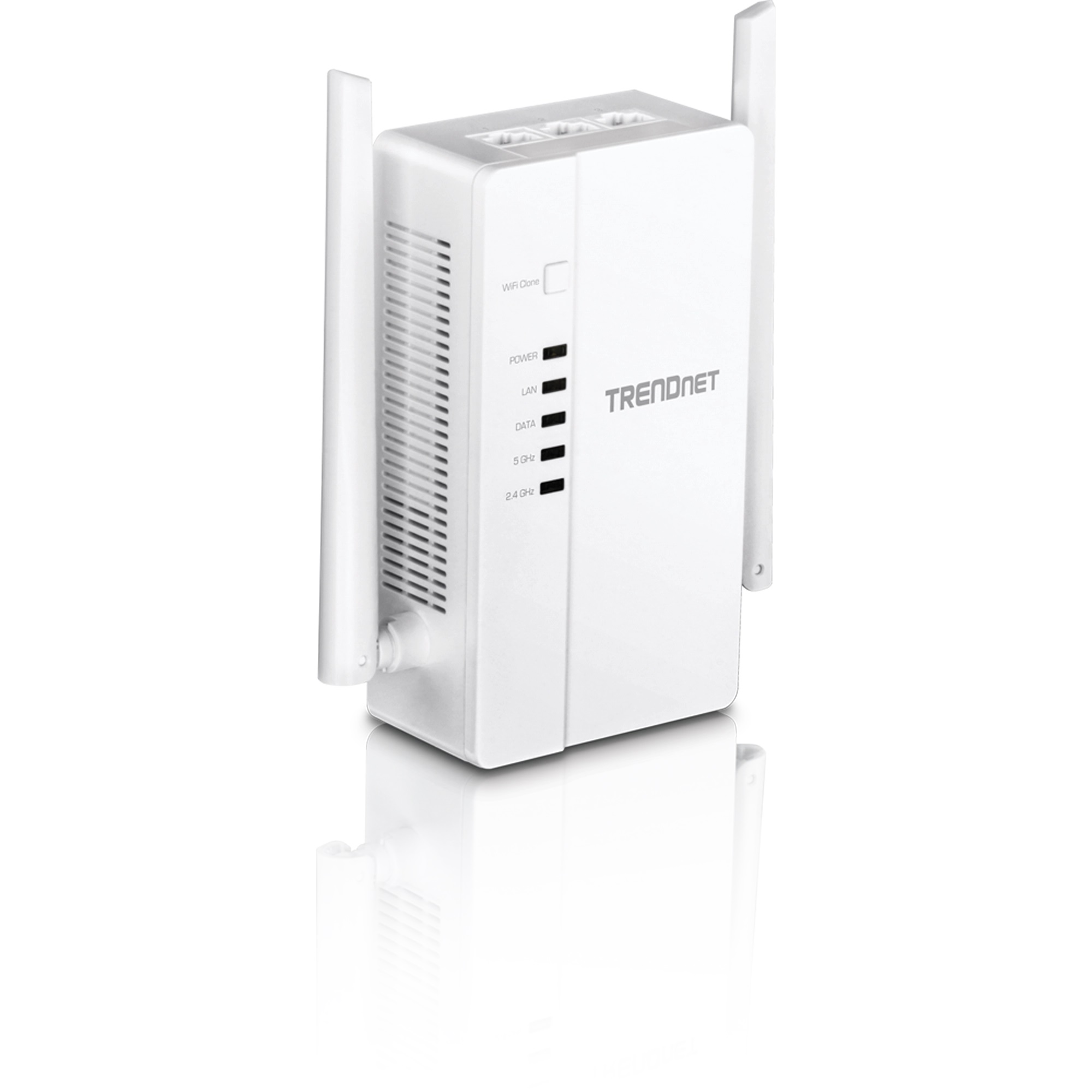

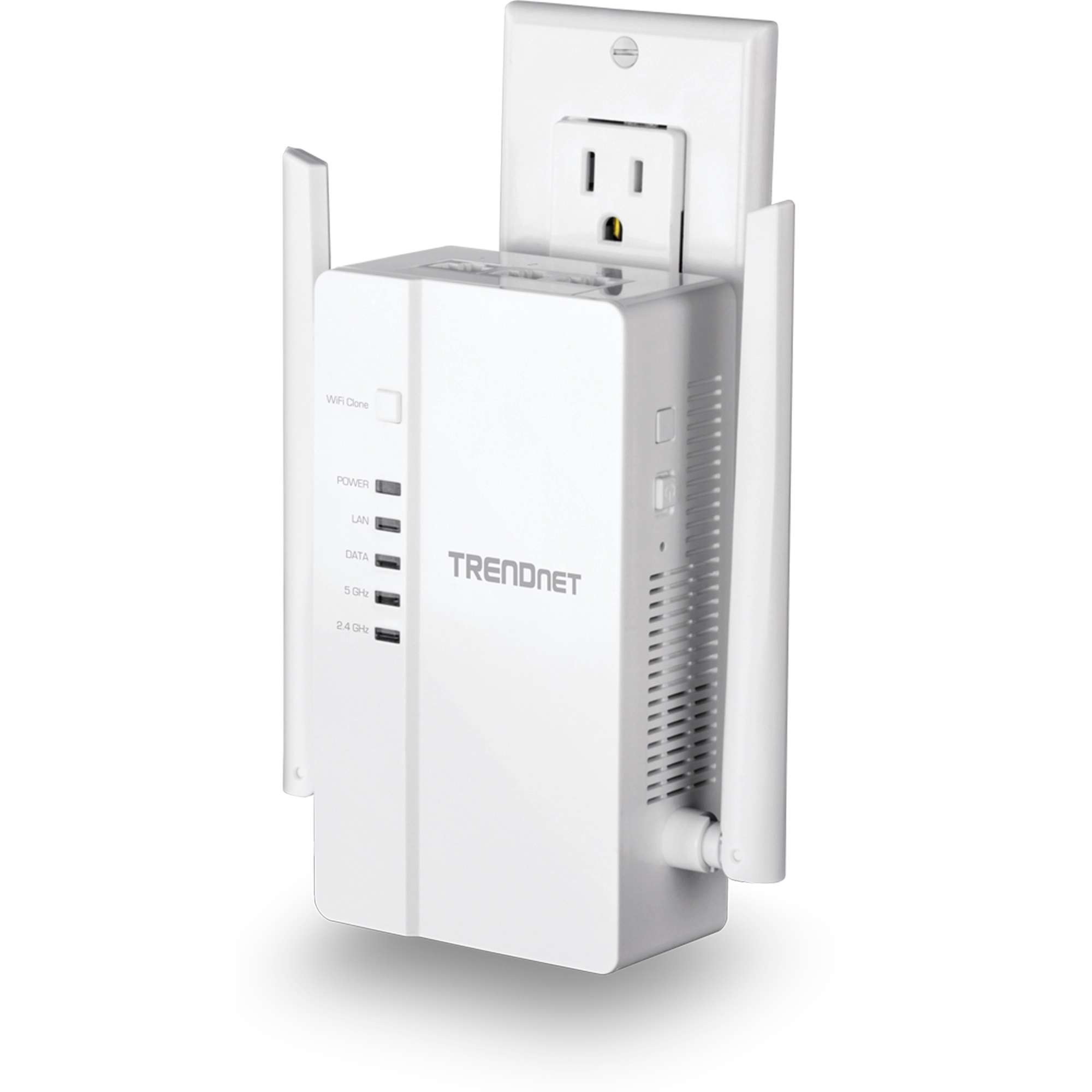

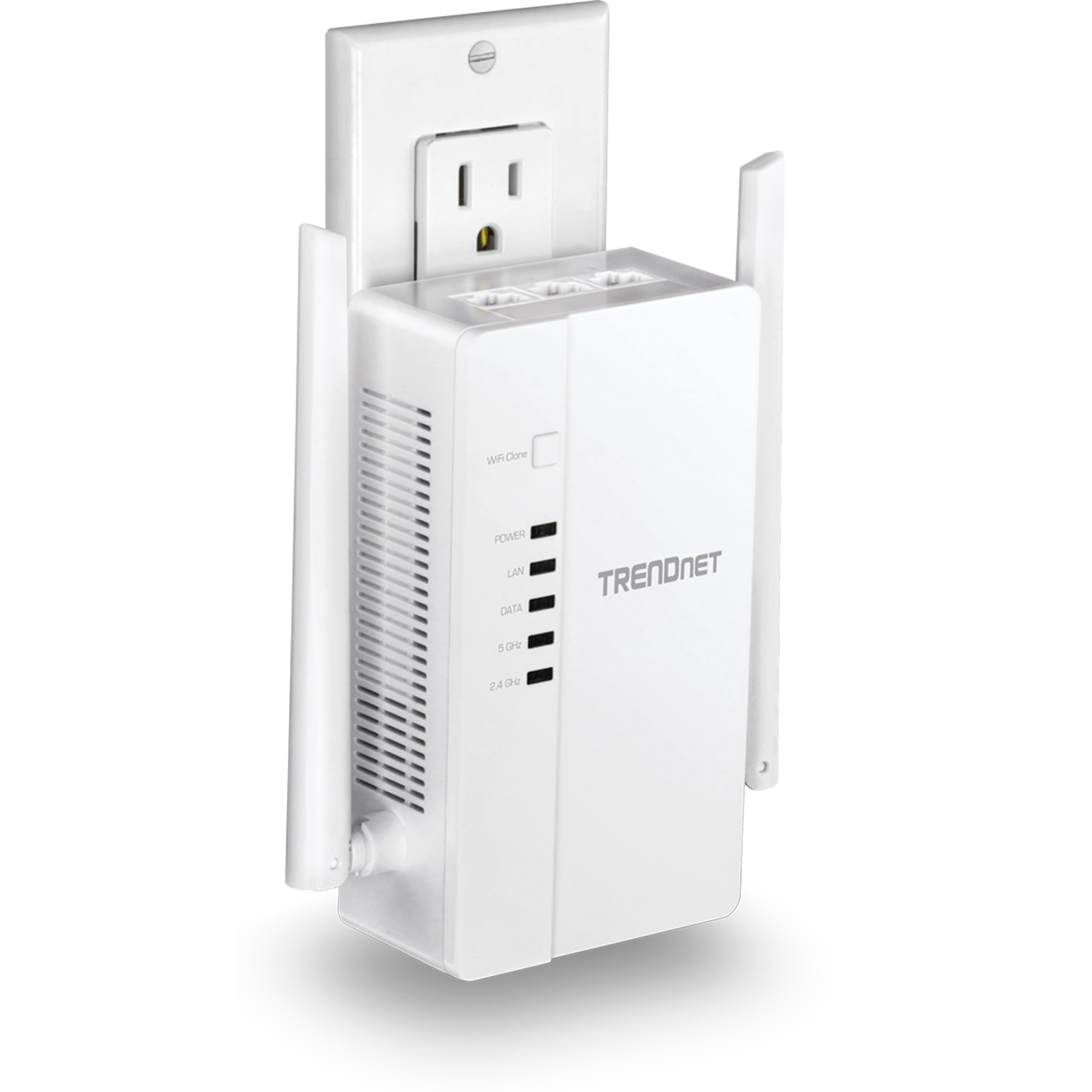

TRENDnet's WiFi Everywhere Powerline 1200 AV2 Access Point, model TPL-430AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one Powerline adapter to the router, and plug the TPL-430AP into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone feature conveniently copies your existing wireless network settings to the TPL-430AP for faster network integration.

Features:

Powerline 1200 networking over existing electrical lines
Built-in dual-band wireless AC1200 access point
Enhanced Powerline performance and range from MIMO with Beamforming technology
Easy installation – TRENDnet adapters auto-connect out of the box
Pre-encrypted for your convenience
Three gigabit ports for high performance wired networking
Powerline range of up to 300 m (984 ft.) over existing electrical lines
Two Powerline adapters are required to start a network
WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
NDAA compliant

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300Mbps) IEEE 802.11ac (up to 866Mbps) IEEE 1901

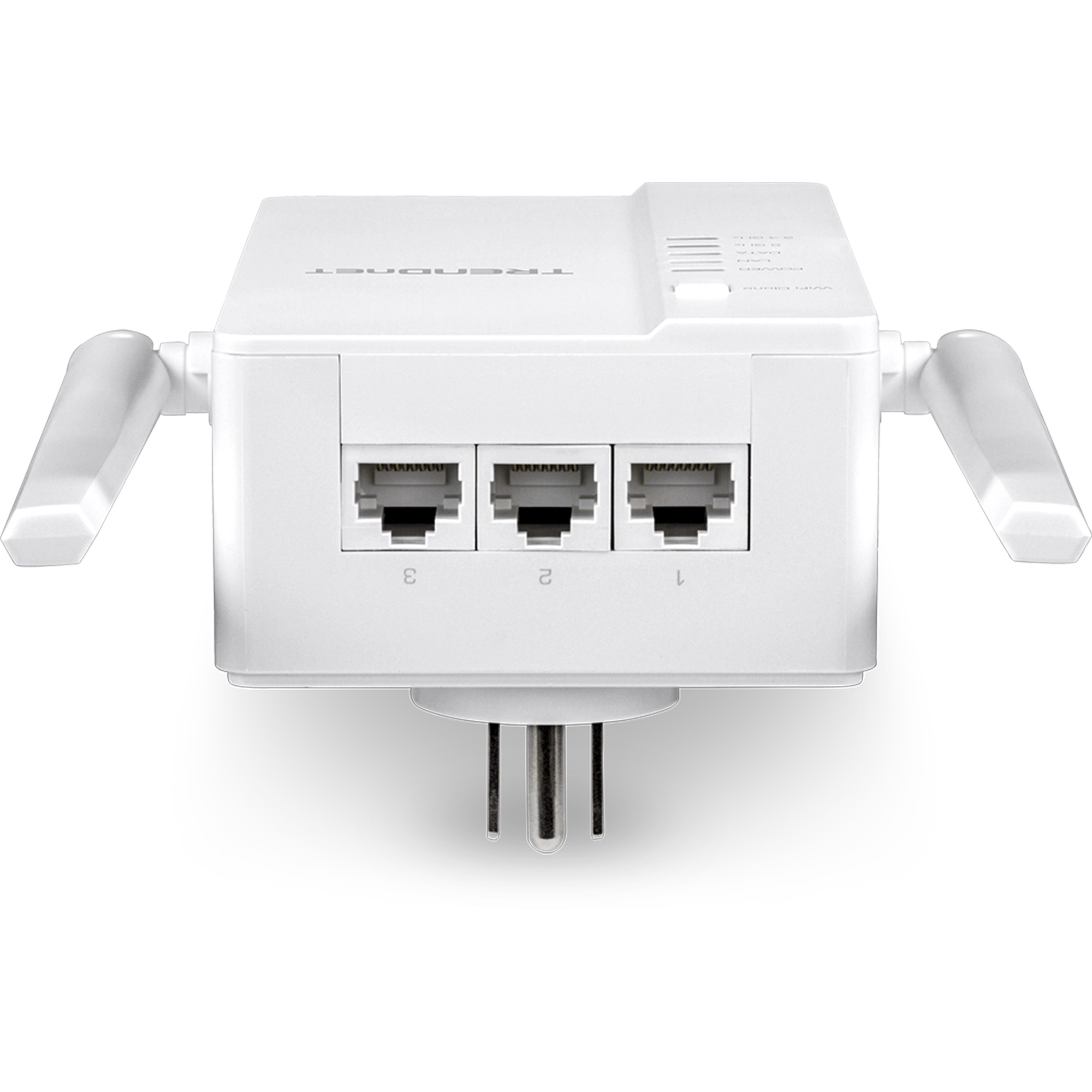

Device Interface	3 x Gigabit LAN ports WiFi Clone button Reset button Sync button Power switch LED indicators

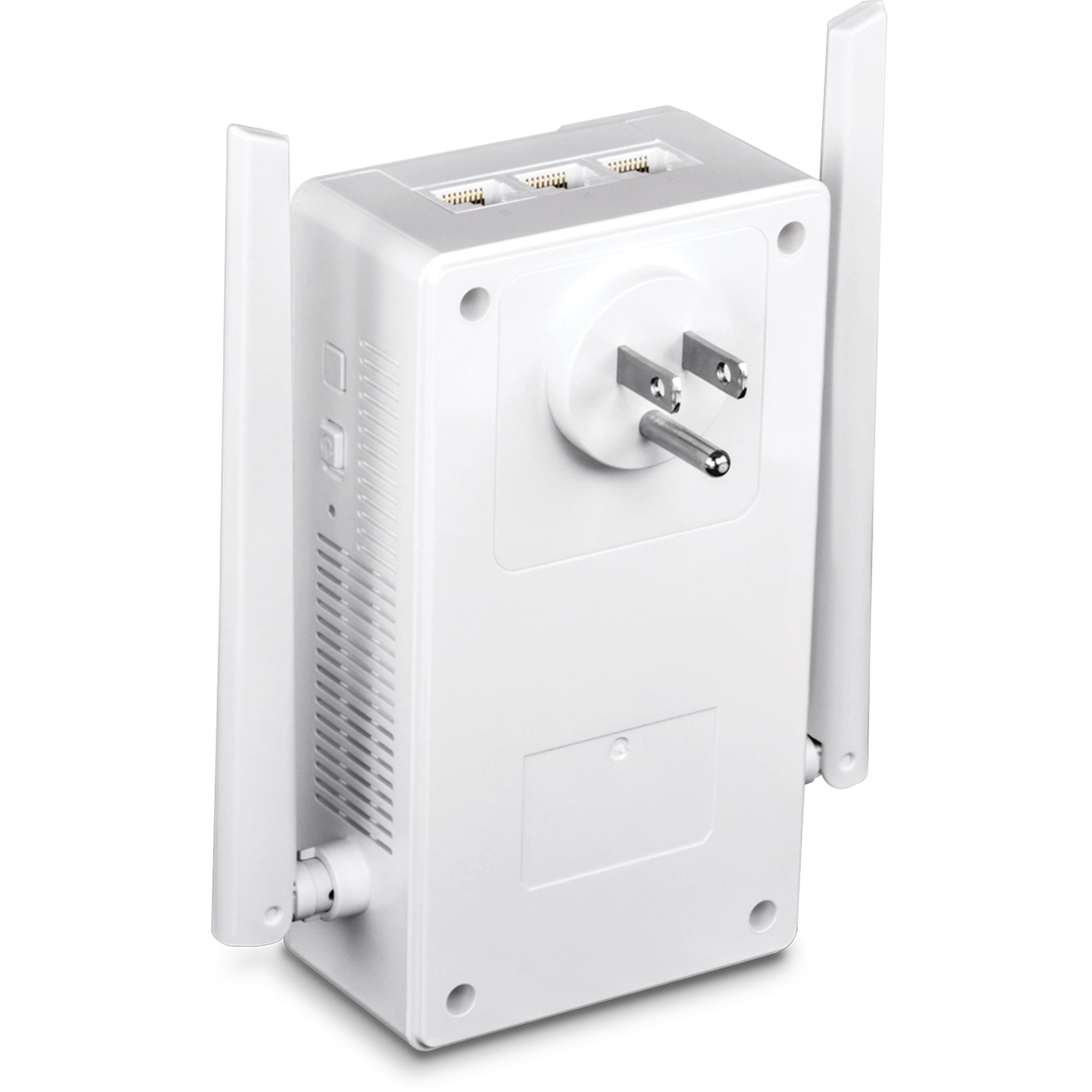

Power plug	A: North America Type B (NEMA 5–15) EU: European Type E/F Hybrid (CEE 7/7) UK : United Kingdom Type G (BS 1363)
Frequency Band	2 - 67MHz
Modulation/Protocol	OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier CSMA/CA Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
Encryption	Wireless: WPA2-PSK Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes	Up to 8 (max.)
Overlapping Powerline Networks	Up to 4 (per electrical system)
Special Features	Auto-connects to other TRENDnet Powerline adapters Additional Ethernet ports for wired connectivity Automatically clones the SSID and password of your WiFi network IPv6 support QoS Management IGMP / MLDv2 Streams
Antenna Gain	2.4GHz: 2 x 3.31dBi 5GHz: 2 x 4.51dBi
Wireless Output Power / Receiving Sensitivity	802.11a: 16 dBm (typical) / -65 dBm (typical) @ 54Mbps 802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps 802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps 802.11n (2.4 GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps 802.11n (5 GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps 802.11ac (5GHz): 15dBm (typical) / -60dBm (typical) @ 866Mbps
Power	Input: 100 - 240V AC, 50 - 60Hz, 0.2A Active mode consumption: 12W (max.)
Operating Temperature	0 - 40°C (32 – 104°F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC IC UL
Dimensions	255 x 130 x 75mm (10.04 x 5.11 x 2.95in.)
Weight	A: 332g (11.7oz.) EU: 342g (12oz.) UK: 332g (11.7oz.)
Warranty:	3 year

PACKAGE CONTENTS

TPL-430AP
Quick Installation Guide
Network cable (1.5m / 5 ft.)
