Trendnet - TPL-430APK - AC1200 WiFi Everywhere Powerline AP Powerline 1200 Kit
Trendnet - TPL-430APK - AC1200 WiFi Everywhere Powerline AP Powerline 1200 Kit
Part number:
TPL-430APK
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

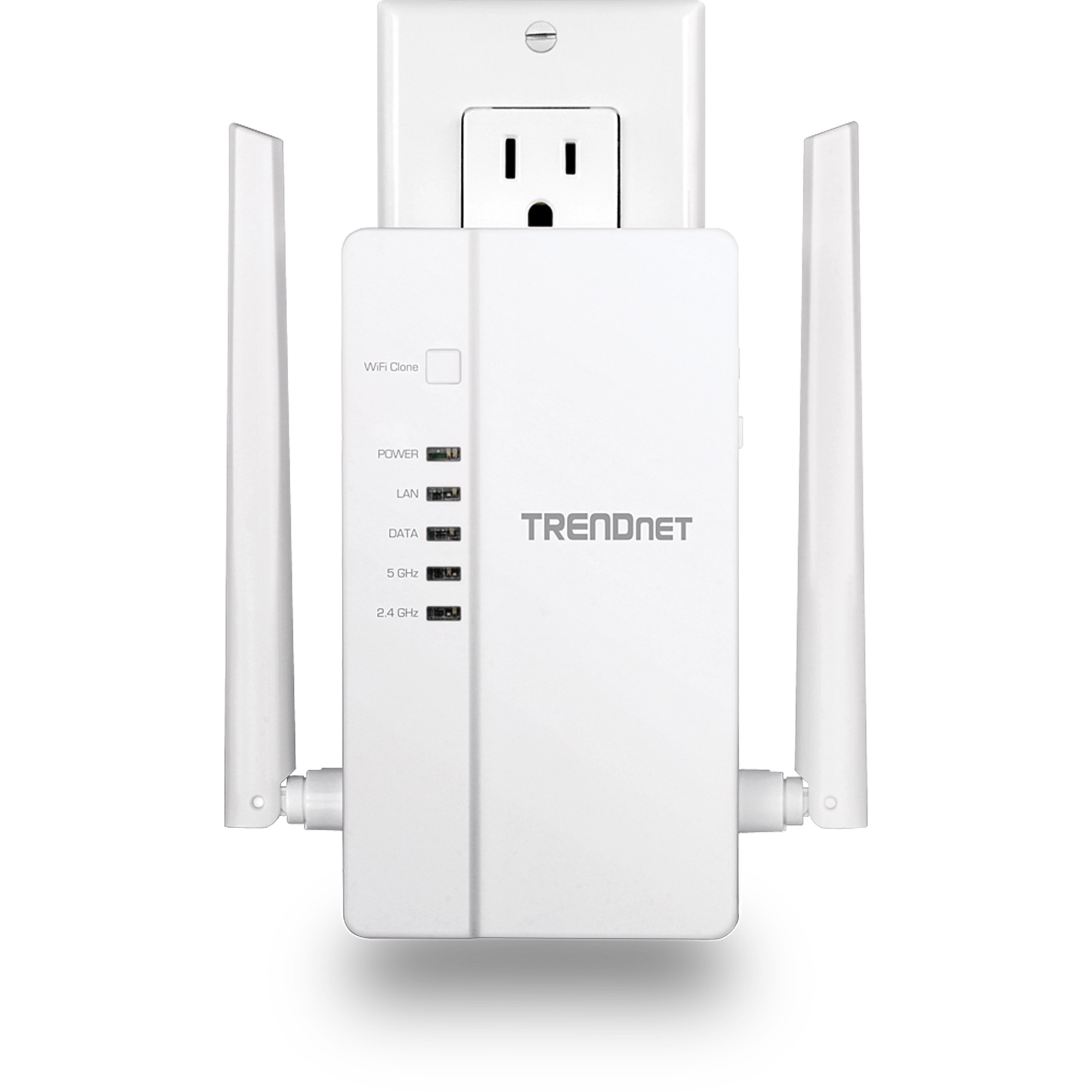

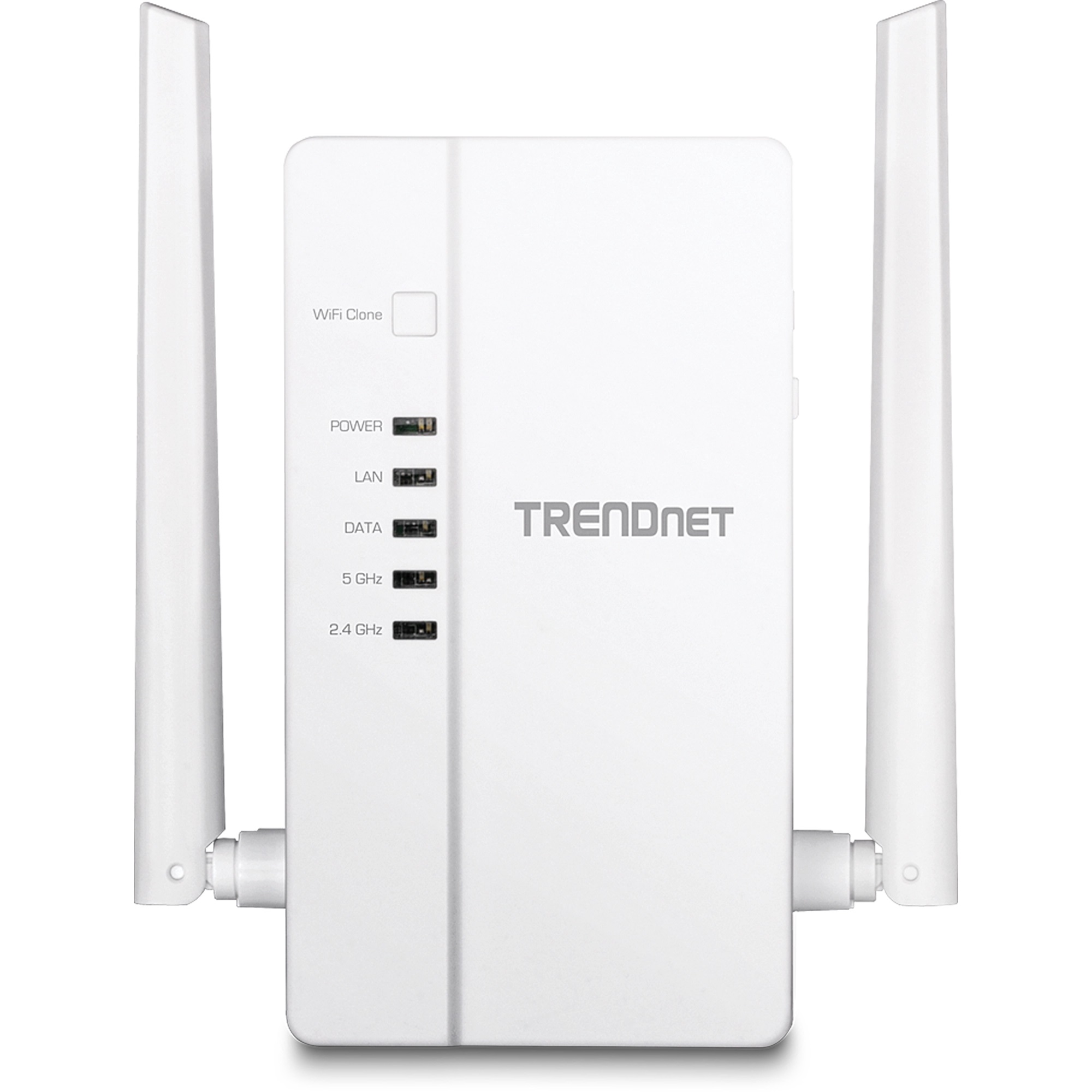

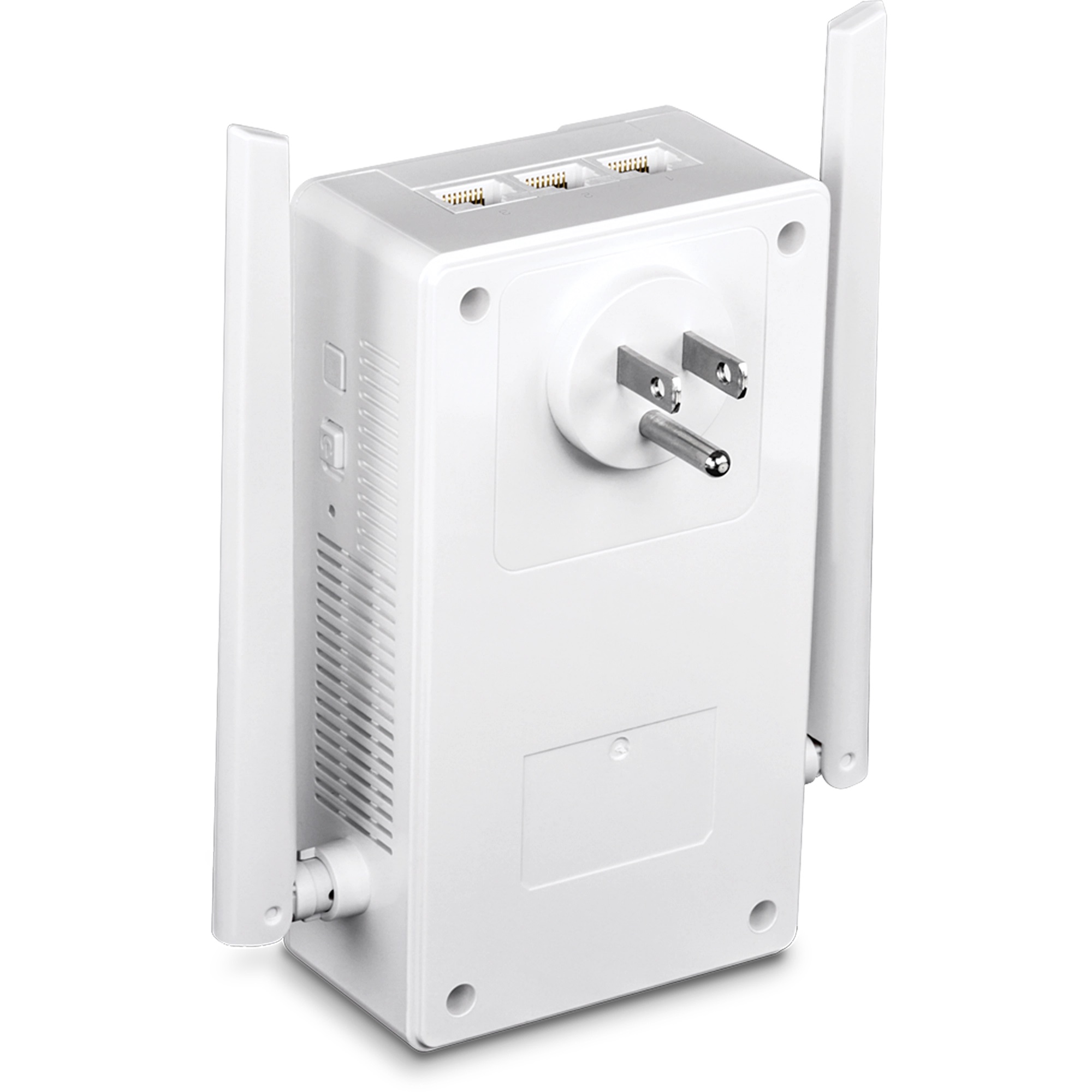

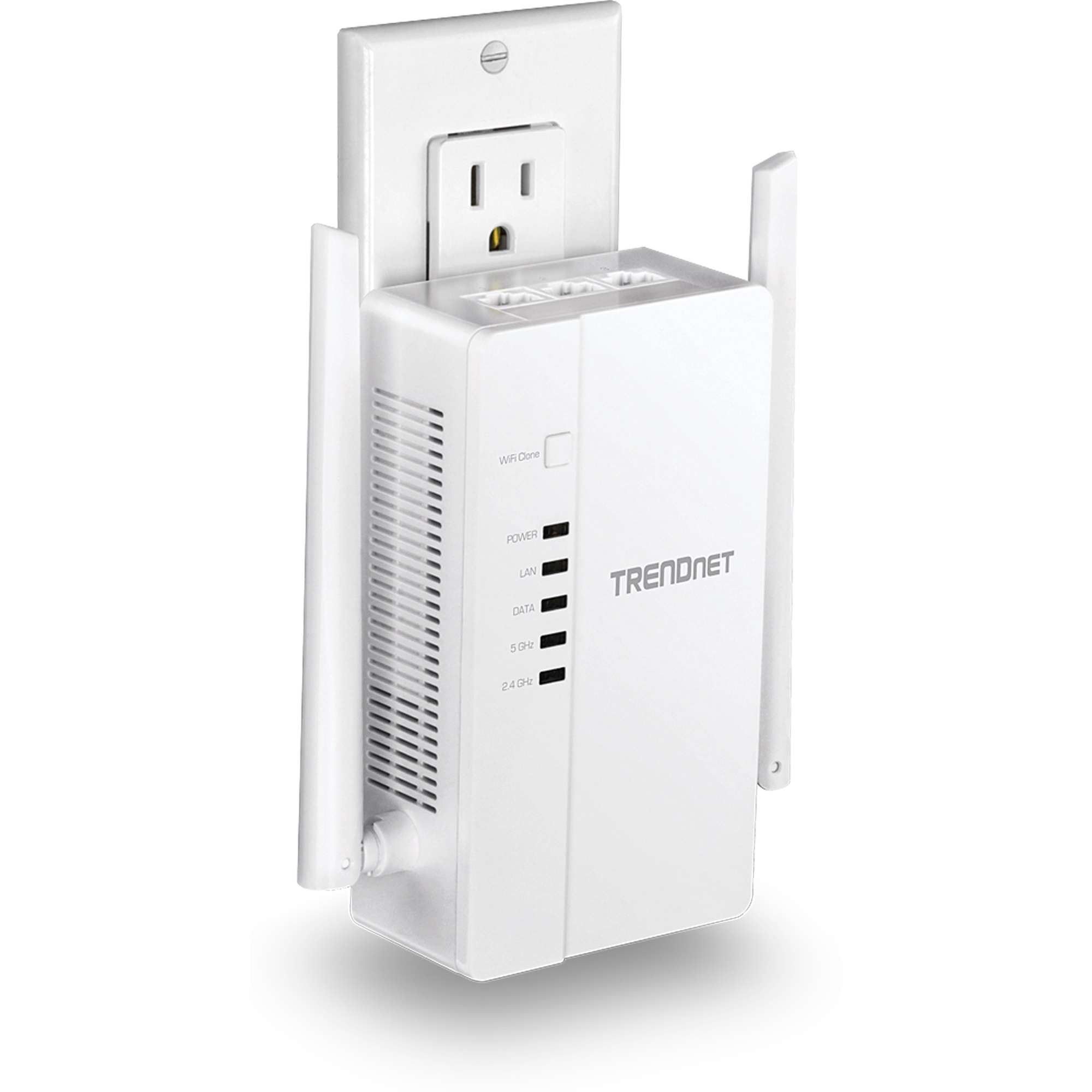

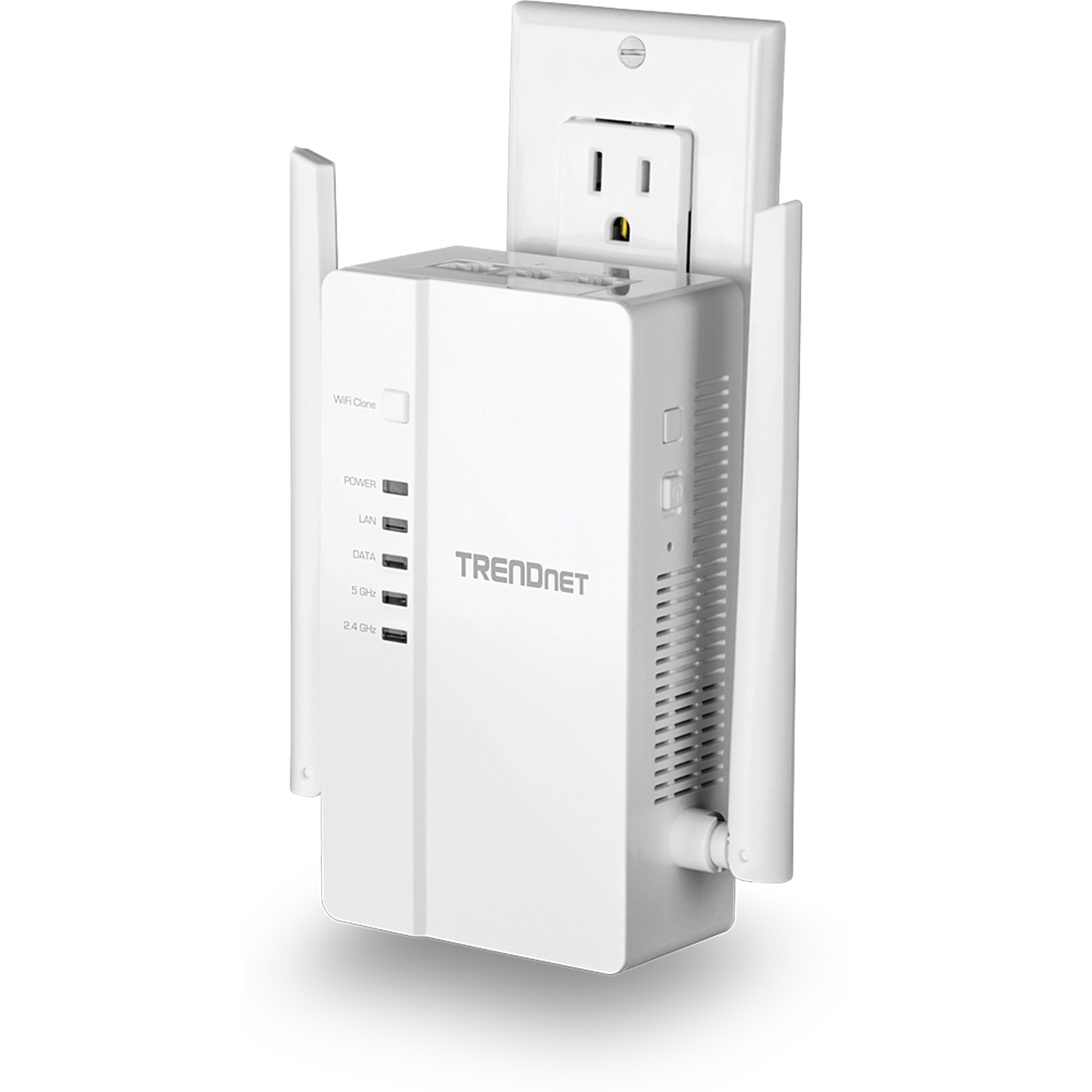

TRENDnet's WiFi Everywhere Powerline 1200 AV2 Wireless Kit, model TPL-430APK, uses your existing electrical outlets to create or expand a wireless network. Easily install the included TRENDnet Powerline adapters to create a high-speed powerline network. Connect the TPL-423E Powerline adapter to the router and plug the TPL-430AP WiFi Powerline adapter into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone button conveniently copies your existing wireless network settings to the TPL-430AP WiFi Powerline adapter for faster network integration.



Features:

  • Powerline 1200 networking over existing electrical lines

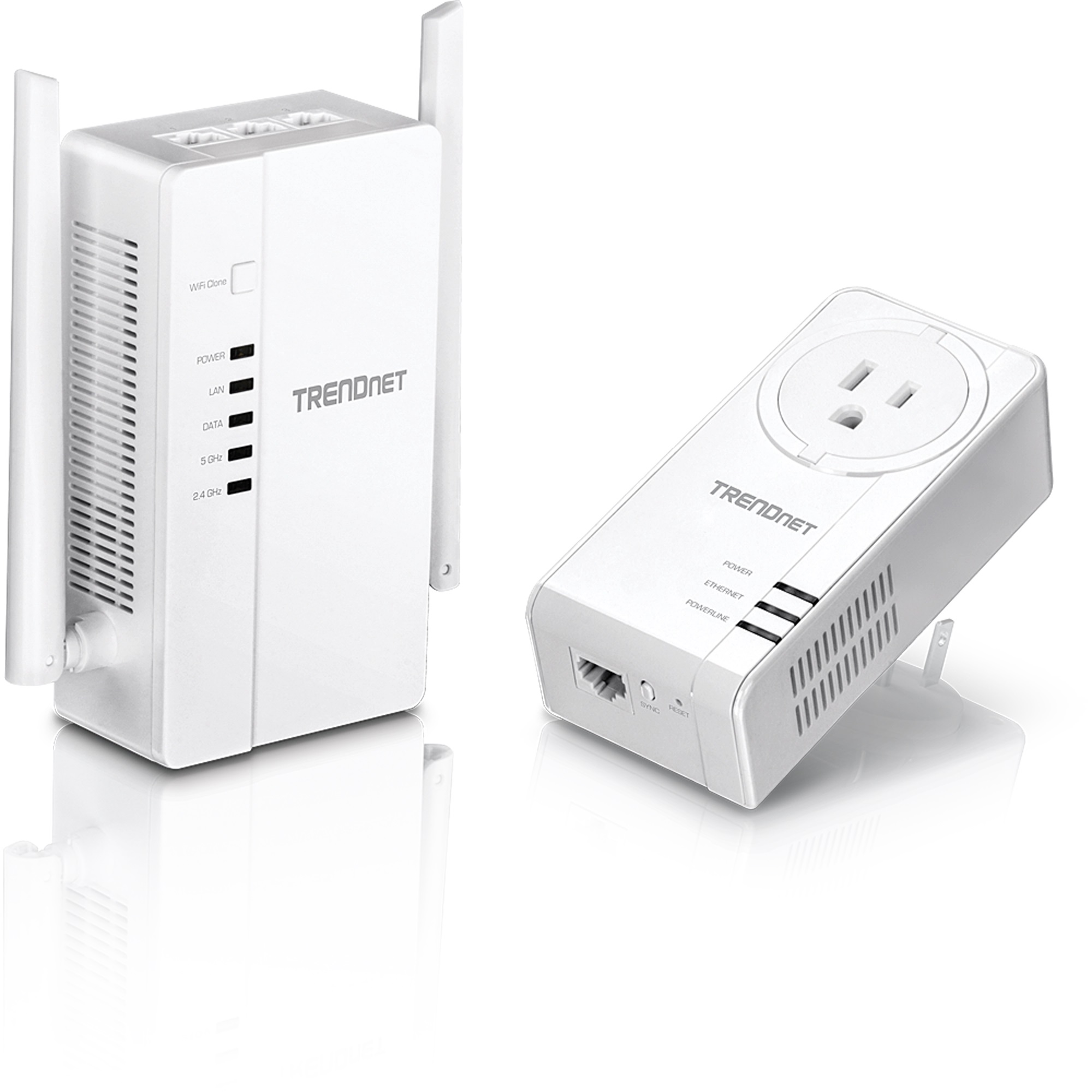

  • Powerline kit includes TPL-423E and TPL-430AP
  • TPL-430AP features a dual-band wireless AC1200 access point with three gigabit ports
  • Enhanced Powerline performance and range from MIMO with Beamforming technology
  • Easy installation – TRENDnet adapters auto-connect out of the box
  • Pre-encrypted for your convenience
  • Powerline range of up to 300m (984 ft.) over existing electrical lines
  • WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
  • NDAA compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300Mbps)
  • IEEE 802.11ac (up to 867Mbps)
  • IEEE 1901
Device Interfaces

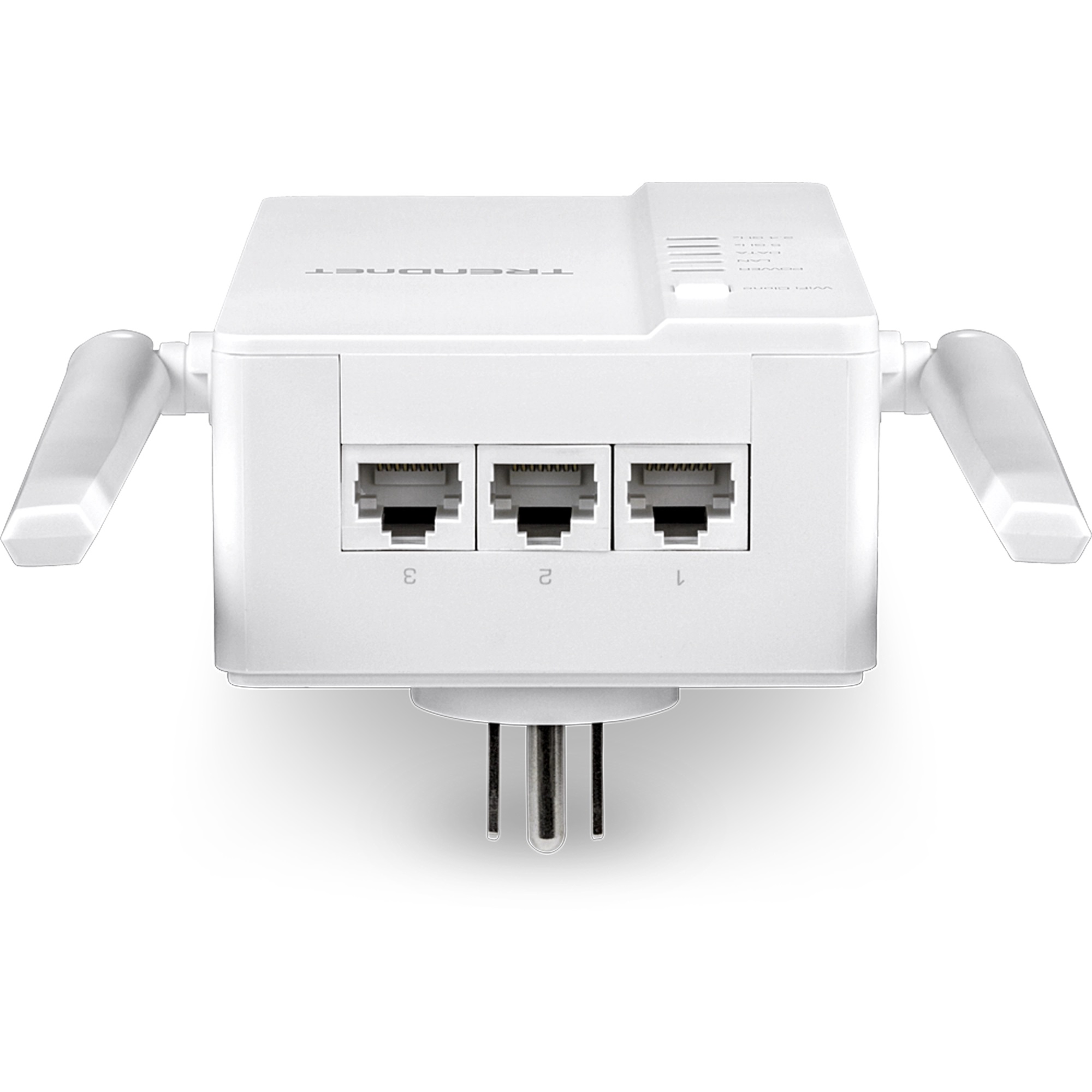

  • 3 x Gigabit LAN ports
  • WiFi Clone button
  • Reset button
  • Sync button
  • Power switch
  • LED indicators
  • Power plug
  • Type B (NEMA 5–15)
Frequency Band
  • 2–67MHz
Modulation/Protocol
  • OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
  • CSMA/CA
Networking Distance
  • Powerline: Up to 300m (984 ft.) linear distance over electrical power lines***
Encryption
  • Wireless: WPA2-PSK
  • Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • Additional Ethernet ports for wired connectivity
  • Automatically clones the SSID and password of your WiFi network
  • IPv6 support
  • QoS Management
  • IGMP / MLDv2 Streams
Antenna Gain
  • 2.4GHz: 2 x 3.31dBi
  • 5GHz: 2 x 4.51dBi
Wireless Output Power/Receiving Sensitivity
  • 802.11a: 16dBm (typical) / -65dBm (typical) @ 54Mbps
  • 802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps
  • 802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps
  • 802.11n (2.4GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps
  • 802.11n (5GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps
  • 802.11ac: 15dBm (typical) / -60dBm (typical) @ 867Mbps
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.2A
  • Max. consumption 12W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions
  • 255 x 130 x 75mm (10.04 x 5.11 x 2.95in.)
Weight
  • 332g (11.7 oz.)
Warranty
  • 3 year

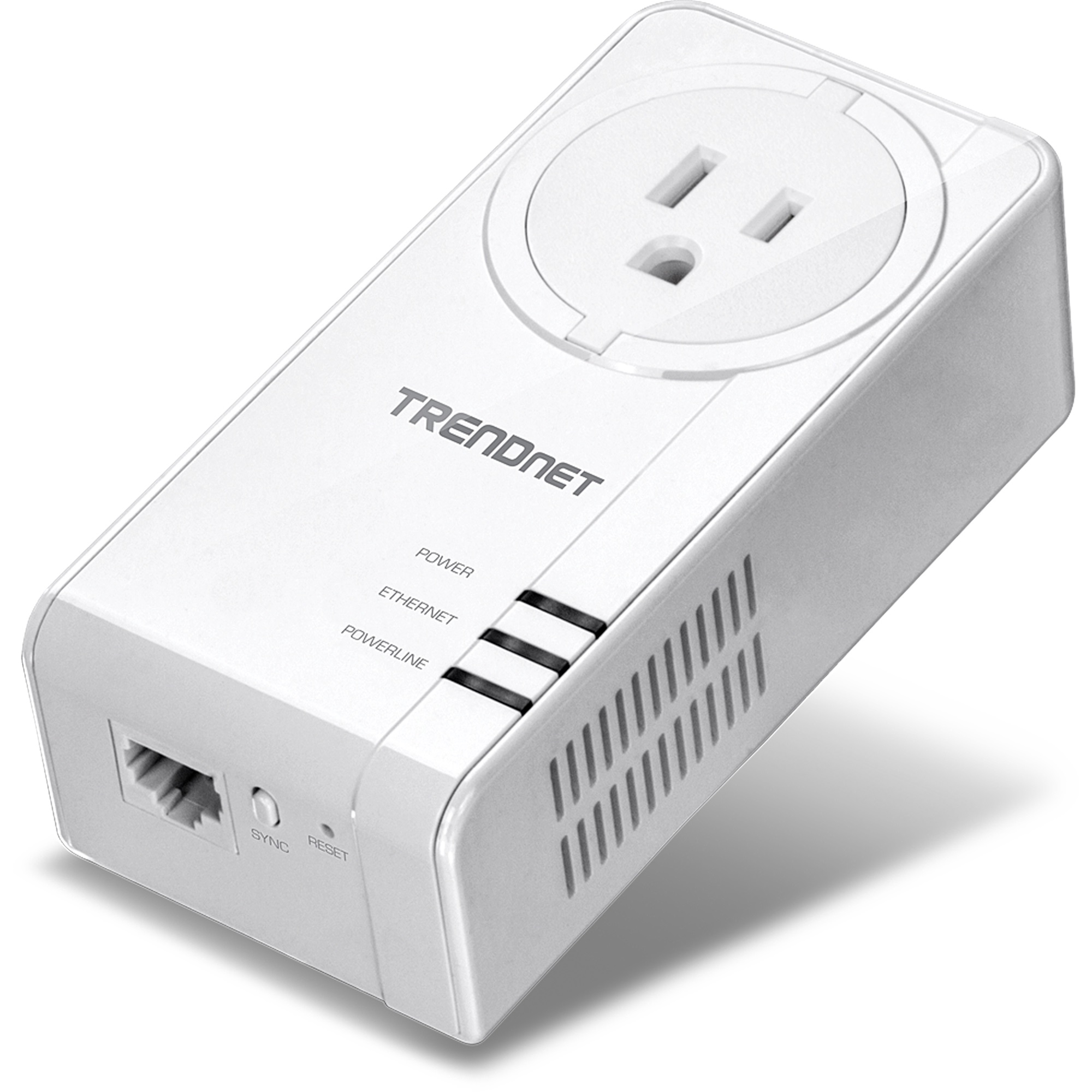

TPL-423E
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 1901
Device Interfaces
  • 1 x Gigabit LAN ports
  • Sync button
  • Reset button
  • LED indicators
  • Power plug
  • Type B (NEMA 5–15) (10A max. @ 120V AC)
Frequency Band
  • 2 – 67.5MHz
Data PHY Rate
  • Up to 1200Mbps
Networking Distance
  • Powerline: Up to 300m (984 ft.) linear distance over electrical power lines***
Encryption
  • Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Built-in power socket
  • Auto-connects to other TRENDnet Powerline adapters
  • IPv6 support
  • IGMP / MLDv2 Streams
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.2A
  • Max. consumption: Active mode: 4W; Standby mode: 0.5W
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions
  • 120 x 60 x 65mm (4.73 x 2.4 x 2.6 in.)
Weight
  • 176g (6.2 oz.)
Warranty
  • 3 year

PACKAGE CONTENTS

  • TPL-430AP
  • TPL-423E
  • Quick Installation Guide
  • 2 x Network cable (1.5m / 5 ft.)
