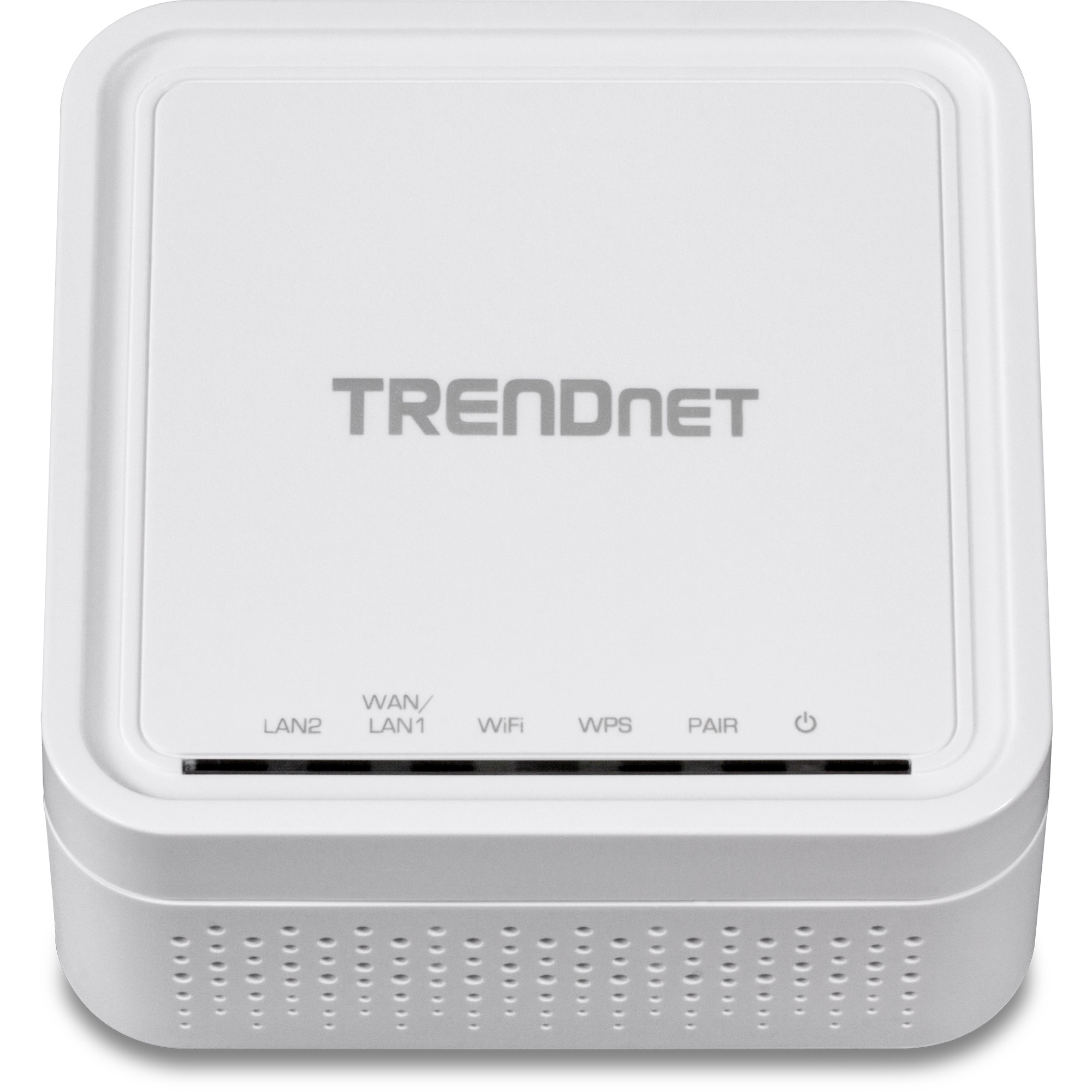

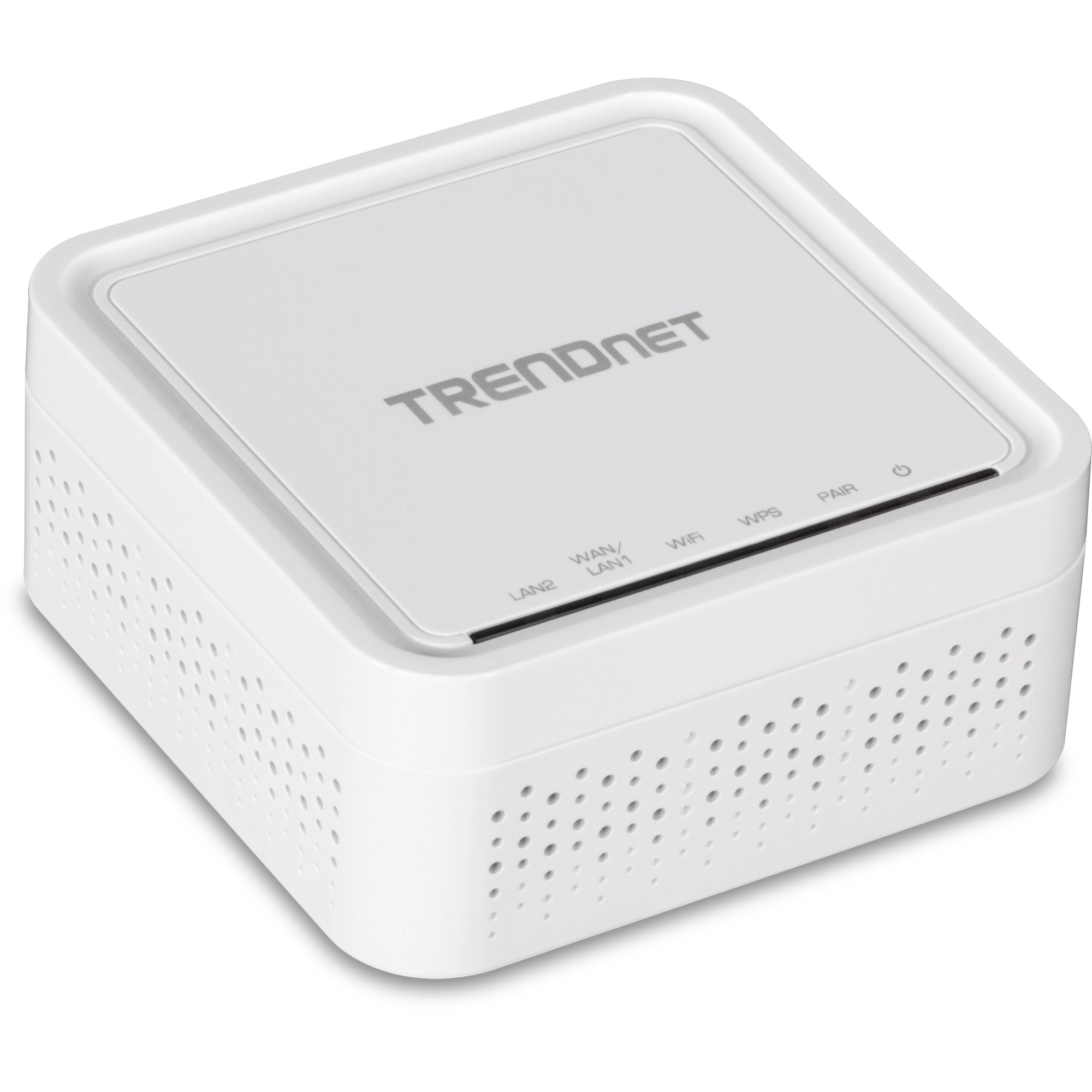

TRENDNET - TEW-832MDR2K - AC1200Dual Band WiFi EasyMesh™ Kit

Name: TRENDNET - TEW-832MDR2K - AC1200Dual Band WiFi EasyMesh™ Kit
Brand: Trendnet
SKU: TEW-832MDR2K

Part number:

TEW-832MDR2K

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

TRENDnet's AC1200 WiFi EasyMesh™ Kit is designed to blanket your home or small office in seamless WiFi coverage. The AC1200 WiFi EasyMesh System provides ample coverage for up to a 4,000 square foot home. Add up to an additional AC1200 WiFi Mesh Node to the system for expanded WiFi Coverage.

The WiFi EasyMesh Kit uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app. In minutes, you'll have your AC1200 WiFi EasyMesh System up and running providing whole home WiFi coverage.

Features:

AC1200: 5GHz: 867Mbps WiFi AC | 2.4GHz: 300Mbps WiFi N
Includes 2 x AC1200 WiFi EasyMesh Nodes
Auto Optimizing WiFi
Designed to replace older WiFi routers, extenders, and signal boosters
Intelligent WiFi mesh technology connects users to the best WiFi EasyMesh Node
Add up to an additional AC1200 EasyMesh Node to the system for expanded WiFi coverage
Airtime fairness balances wireless client bandwidth resources
LAN/WAN IPv6 support
Multi-User MIMO for increased bandwidth efficiency and better user experience*
Seamless Smart WiFi roaming
Implicit/Explicit Beamforming
NDAA / TAA compliant (U.S. and Canada only)

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300Mbps)* IEEE 802.11ac (up to 867Mbps)* WiFi EasyMesh R1

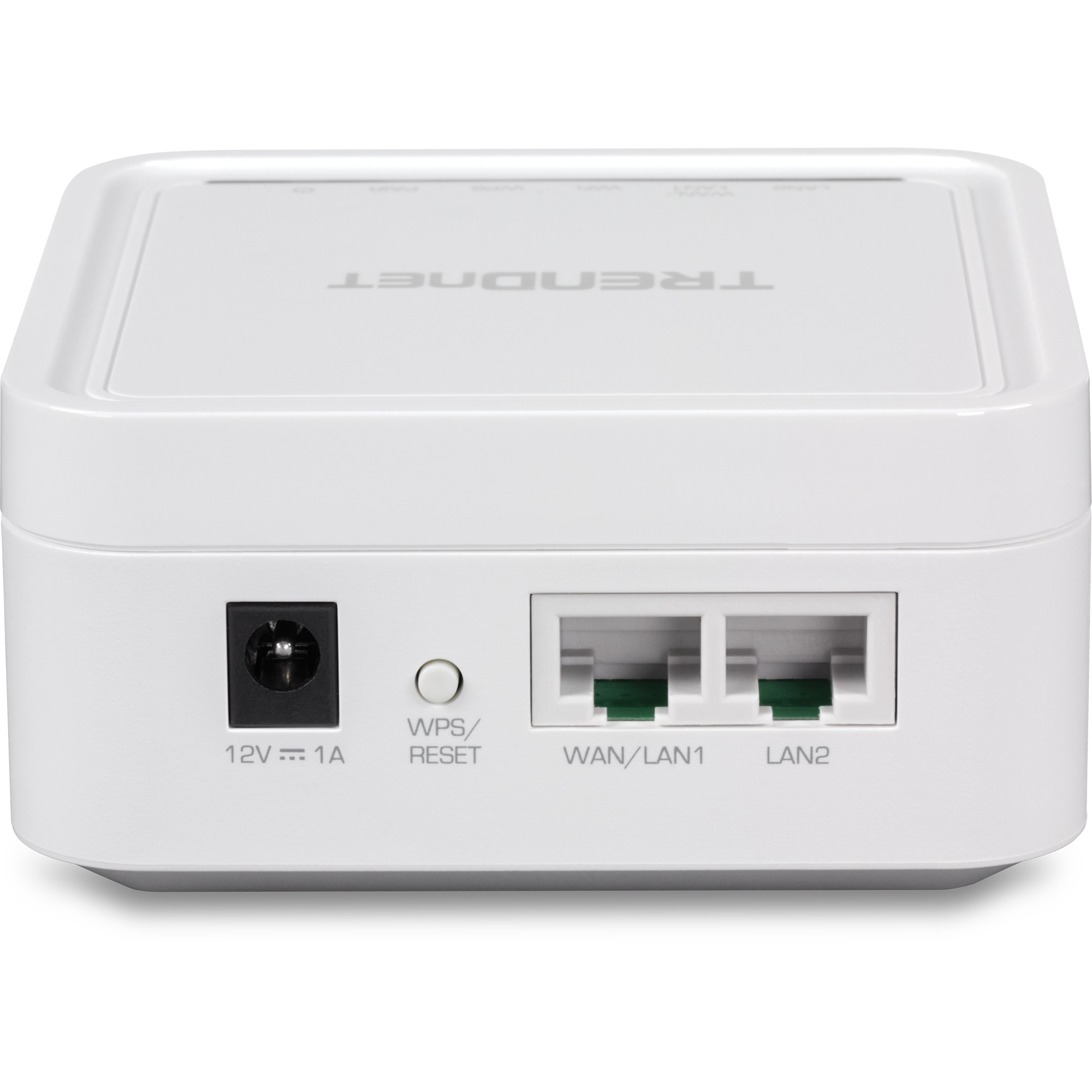

Device Interface	2 x Gigabit Ethernet ports (LAN/WAN or 2x LAN) WPS/Reset button LED indicators
Special Features	Multi-User MIMO for increased bandwidth efficiency and better user experience* Seamless WiFi roaming IPv6 support Implicit/Explicit Beamforming Band Steering
Access Control	WiFi encryption: WPA/WPA2-PSK AES WiFi Guest network Hide WiFi Name/SSID Wireless client isolation NAT Port forwarding DMZ host UPnP DoS prevention Allow/deny WAN ping requests Parental controls (Set schedules for Internet access or filter by custom websites)
Quality of Service	Set client device priority (Normal/High priority) WMM
Management/Monitoring	IOS and Android App based management Internal system logging Manual or online auto firmware upgrade Mesh Connection quality display Client device list Internet speed test Router/AP operation modes
Frequency	2.4000 – 2.4835GHz (Industrial Scientific Medical Band) 5.150 – 5.825GHz (subject to local regulations)
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	2 x 4.2 dBi Internal Antenna
Receiving Sensitivity	802.11a: -67 dBm (typical) @ 54Mbps 802.11b: -79 dBm (typical) @ 11Mbps 802.11g: -67 dBm (typical) @ 54Mbps 802.11n (2.4GHz, 20MHz): -66 dBm (typical) @ 300Mbps 802.11n (2.4GHz, 40MHz): -63 dBm (typical) @ 300Mbps 802.11n (5GHz, 20MHz): -67 dBm (typical) @ 867Mbps 802.11n (5GHz, 40MHz): -65 dBm (typical) @ 867Mbps 802.11ac: -56 dBm (typical) @ 867Mbps
Wireless Channels	2.4GHz: FCC: 1–11, ETSI: 1-13 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165, ETSI: 36, 40, 44, 48
Power	Input: 100 – 240V AC, 50 – 60Hz, 1A Output: 12V DC, 1A external power adapter Max. Consumption: 4.63 W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions (L x W x H)	95 x 95 x 50mm (3.75 x 3.75 x 1.97 in.)
Weight	Each unit :116g (4.1 oz)
Warranty	3 year

PACKAGE CONTENTS

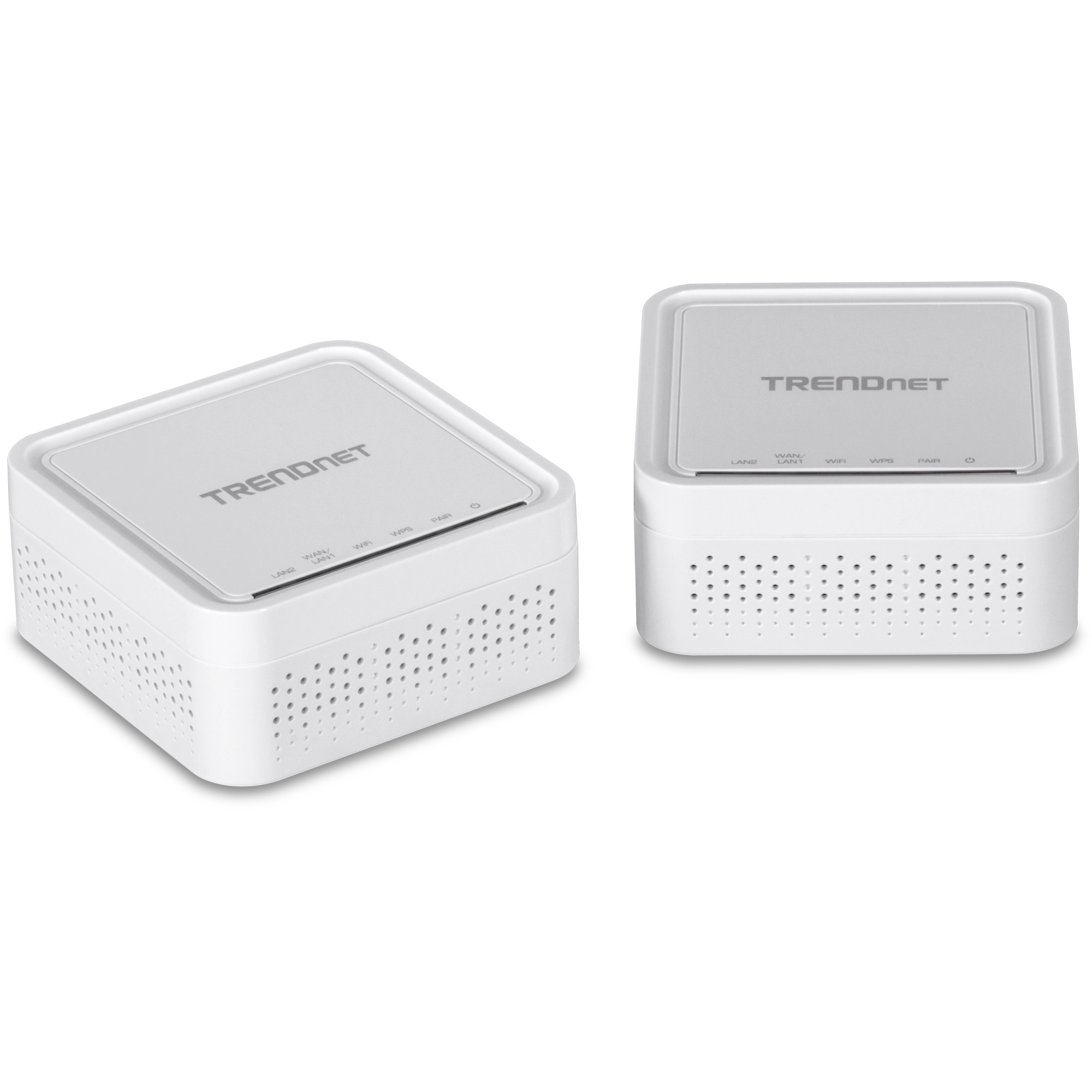

2 x TEW-832MDR (1 x Main, 1 x Remote Node)
Quick Installation Guide
1 x Network cable (1.5m / 5 ft.)
2 x Power adapter (12V DC, 1A)

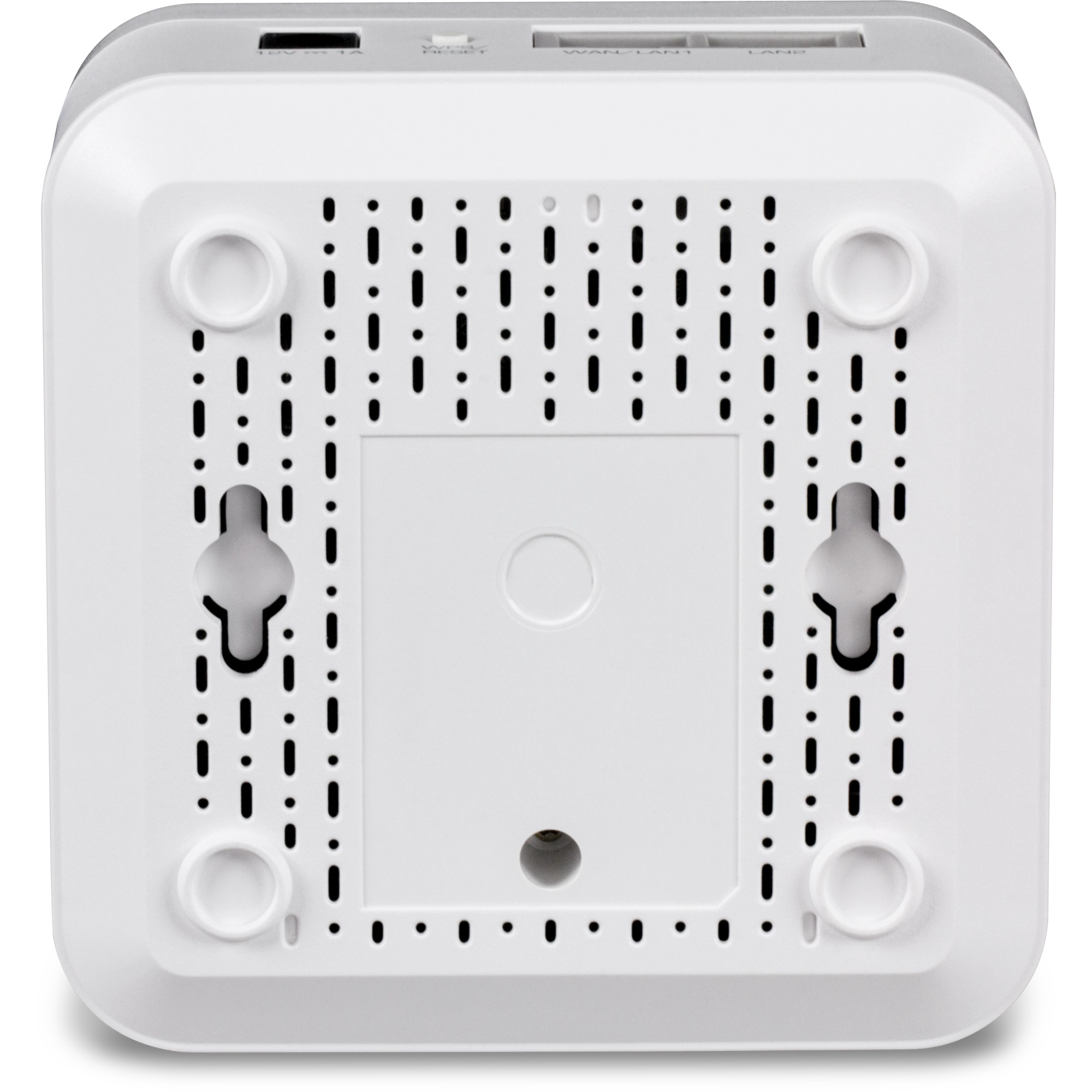

Wall Mount Screws
