TRENDNET - TEW-823DAP (CA) - AC1300 Dual Band PoE Indoor

Part number:

TEW-823DAP (CA)

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

TRENDnet’s high performance AC1300 Dual Band Indoor Wireless PoE Access Point, model TEW-823DAP, supports Access Point (AP and Repeater modes. This wireless indoor access point generates concurrent 867Mbps WiFi AC and 400Mbps WiFi N networks. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments and includes a convenient wall / ceiling mounting plate.

Features:

High performance AC1300 PoE access point
Wireless AC MU-MIMO technology boosts performance in a busy home
AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands
Access Point and Repeater modes
Supports the latest WPA3 wireless encryption
Gigabit PoE LAN port
Low-profile housing blends into most environments

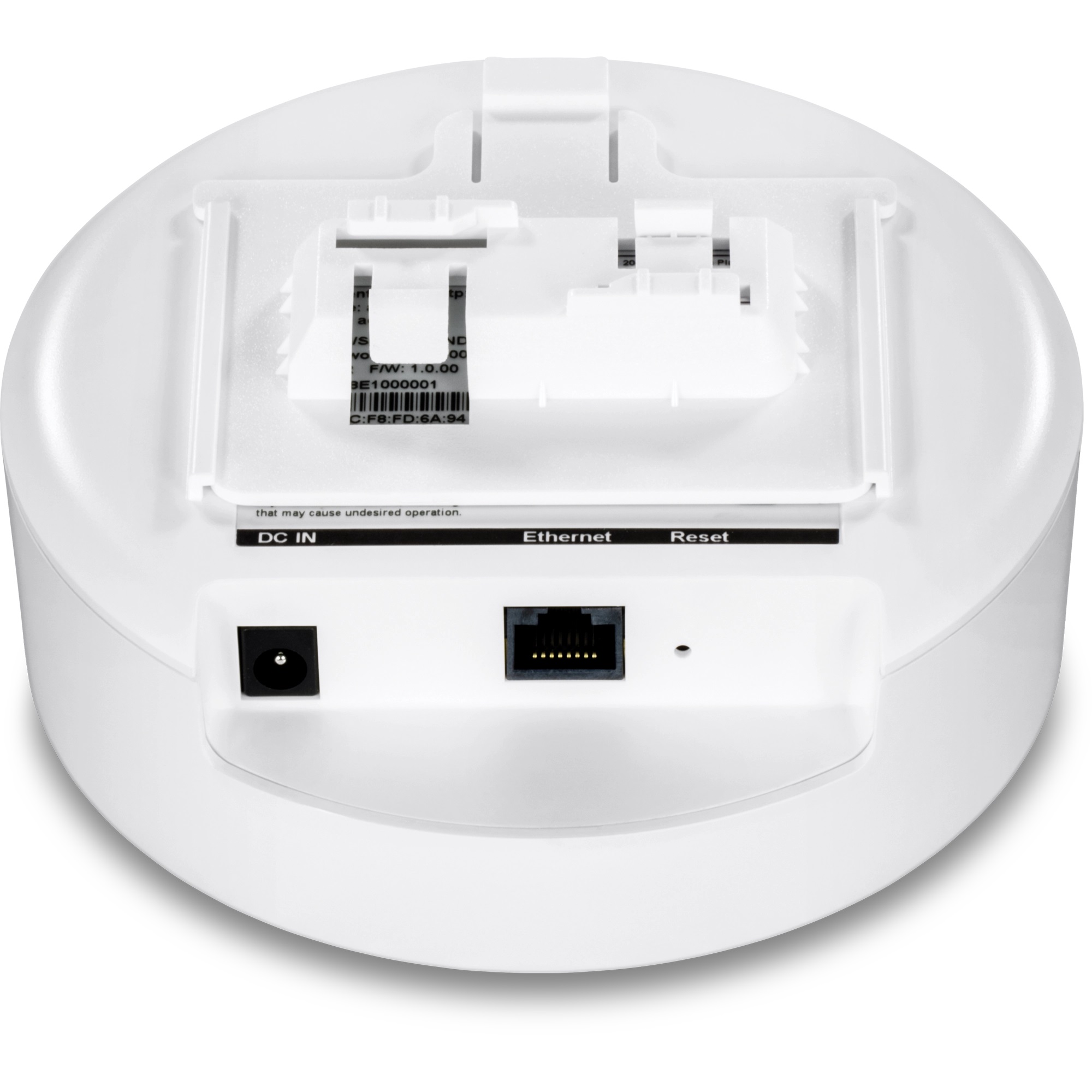

Includes wall / ceiling mounting plate
NDAA / TAA compliant (U.S. and Canada only)

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.1Q IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11k IEEE 802.11n (up to 400Mbps)* IEEE 802.11r IEEE 802.11v IEEE 802.11ac (up to 867Mbps)*

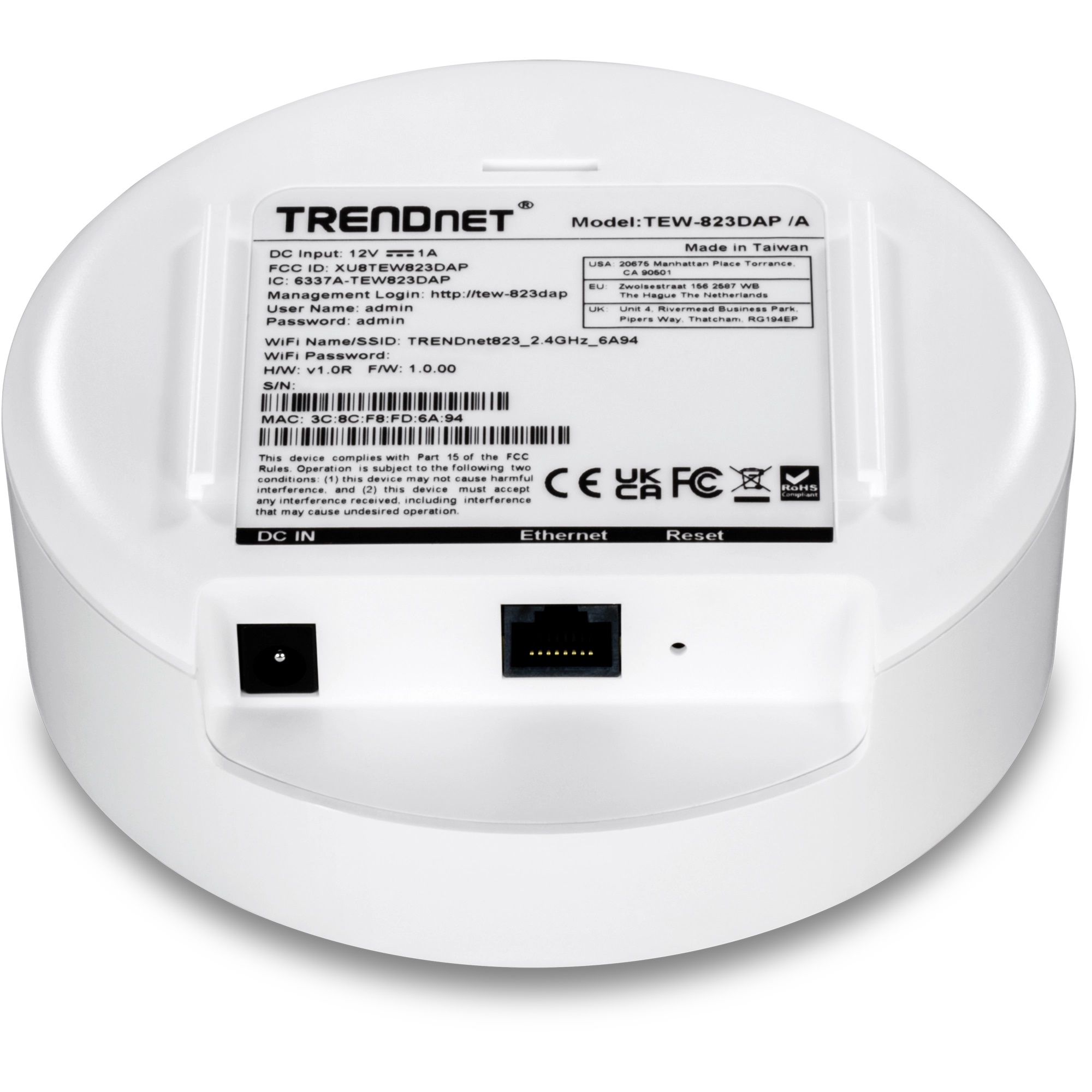

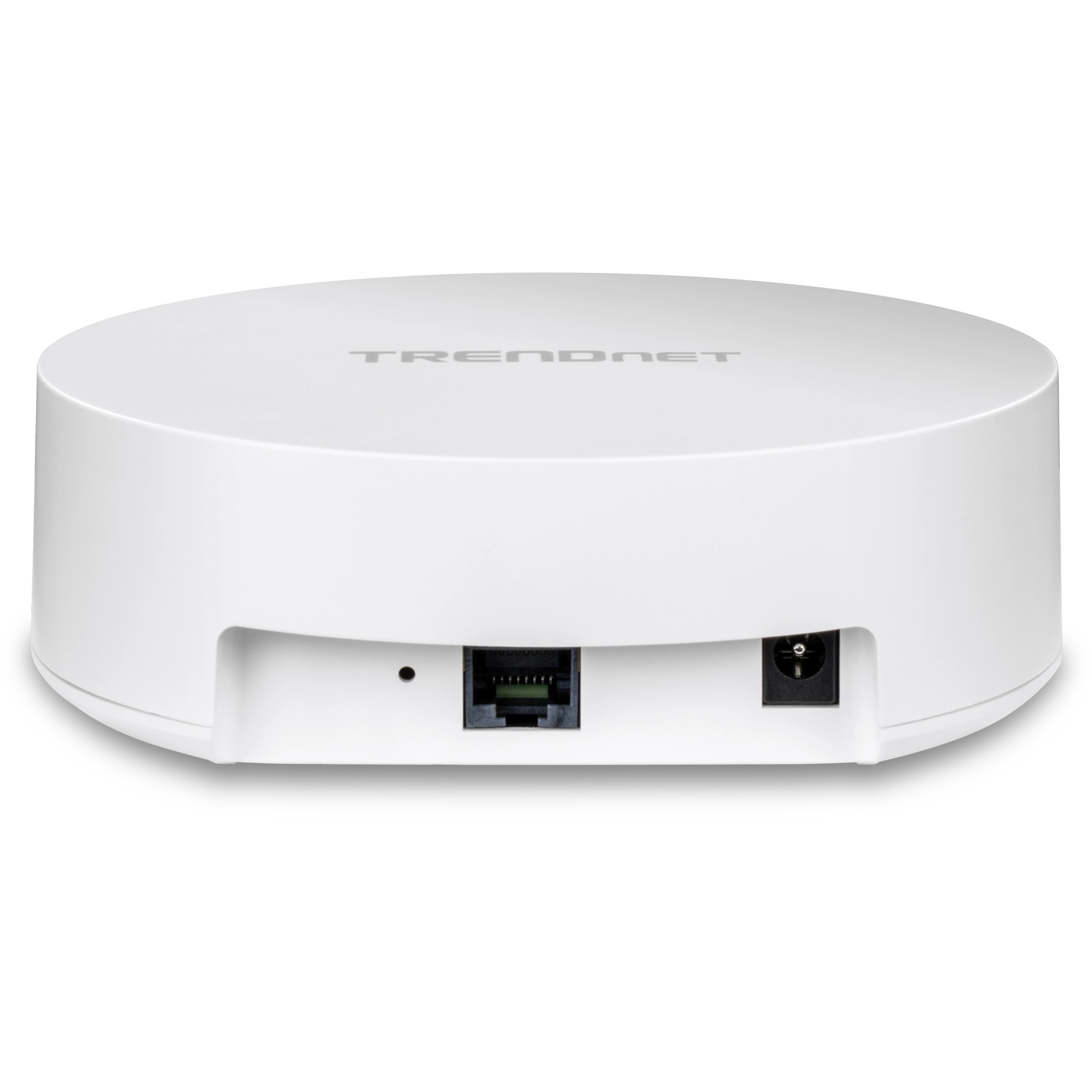

Hardware Interface	1 x 802.3af PoE Gigabit LAN port (power input) Power port (12V DC, 1A external power adapter not included) LED indicator Reset button
Features	MU-MIMO Band steering 802.1Q VLAN assignment per SSID IPv4 static/DHCP address assignment UPnP/Bonjour
Operation Modes	Access Point Repeater
Management/Monitoring	Web based management (HTTP/HTTPS) Command Line Interface (Telnet/SSH) SNMP v2c/v3 Spanning Tree Protocol (STP) Event logging Ping test Traceroute Schedule WiFi radio enable/disable Ping watchdog/gateway connection monitor Reboot & scheduled automatic reboot Channel utilization scan
Access Control	Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-PSK (Personal) MAC filter with scheduling Maximum client limit Client isolation
QoS	Bandwidth control per SSID
SSID	Up to 8 SSIDs per wireless band (16 total)
Frequency	2.4GHz: 2.412 – 2.472GHz 5GHz: 5.180 – 5.825GHz
Wireless Channels	2.4GHz: FCC: 1–11, ETSI: 1–13 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165, ETSI: 36, 40, 44, 48
Modulation	DBPSK/DQPSK/CCK for DSSS technique BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain	2.4GHz: 2 x 4 dBi internal 5Ghz: 2 x 5 dBi internal
Wireless Output Power	802.11a: FCC: 28.5 dBm (max.) / CE: 19 dBm (max.) 802.11b: FCC: 26.5 dBm (max.) / CE: 18 dBm (max.) 802.11g: FCC: 30 dBm (max.) / CE: 19 dBm (max.) 802.11n (2.4GHz): FCC: 24.5 dBm (max.) / CE: 19.5 dBm (max.) 802.11n (5GHz): FCC: 28.5 dBm (max.) / CE: 21 dBm (max.) 802.11ac: FCC: 28.5 dBm (max.) / CE: 21 dBm (max.)
Receiving Sensitivity	802.11a: -73 dBm (typical) @ 54Mbps 802.11b: -87 dBm (typical) @ 11Mbps 802.11g: -73 dBm (typical) @ 54Mbps 802.11n (2.4 GHz): -68 dBm (typical) @ 400Mbps 802.11n (5 GHz): -67 dBm (typical) @ 400Mbps 802.11ac: -57 dBm (typical) @ 867 Mbps
Power	IEEE 802.3af Type 1 PoE PD Class 3 Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (not included) Max. consumption: 11.9W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC IC
Dimensions	130 x 130 x 46mm (5.12 x 5.12 x 1.8 in.)
Weight	188g (6.7 oz.)
Warranty:	3 year

PACKAGE CONTENTS

TEW-823DAP
Quick Installation Guide
Network cable (0.5m / 1.64 ft.)
Mounting plates
