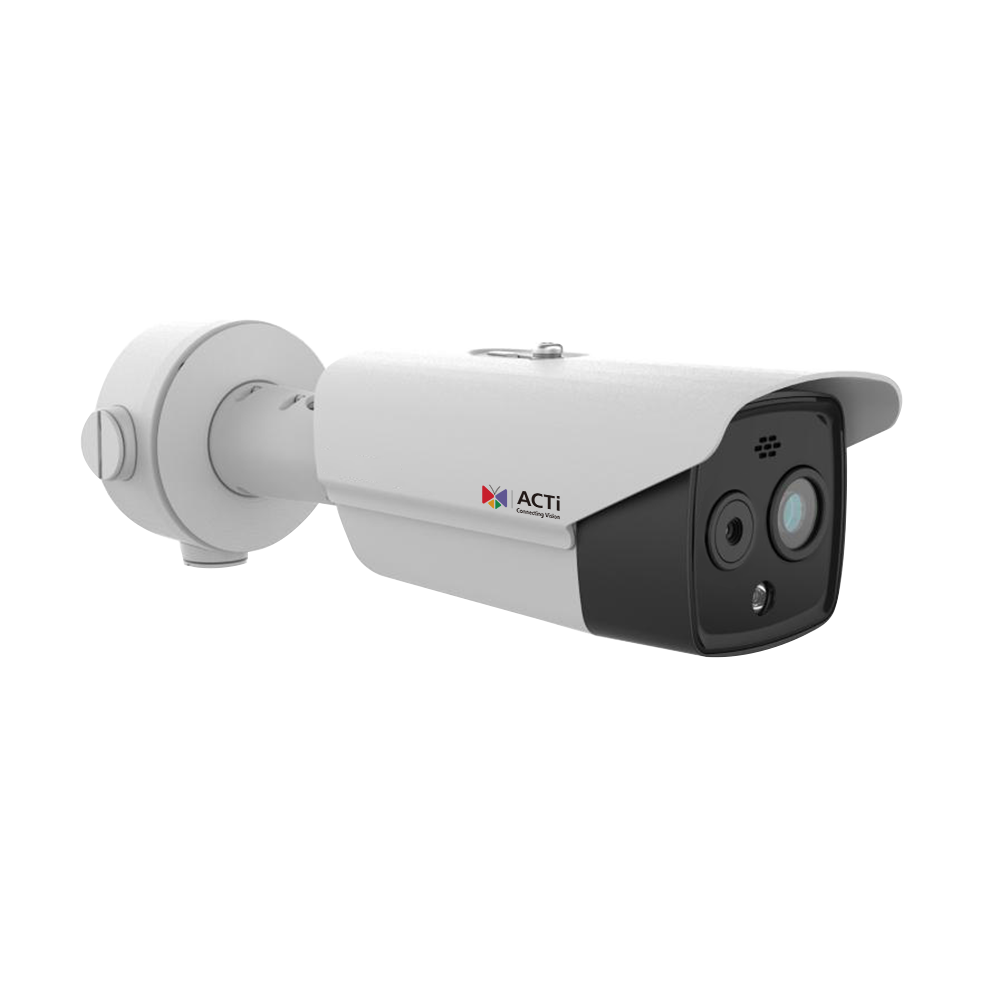

- • 4 Megapixel, f3.6mm, Thermal Bullet
- • Aperture F1.6, IR LED 30m, Superior WDR (120 dB)
- • White LED 30m
- • Two-way Audio
- • Smart Intrusion Protection
- • DI/DO
- • Overheating Detection, Fire Detection, Thermal Surveillance
- • NETD <40mK
| Product Profile | |
|---|---|
| Product Type | Thermal Bullet |
| Product Application | Overheating Detection, Fire Detection, Thermal Surveillance |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/2.7" |
| Effective Pixels | Thermal: 256(H) X 192(V) Optical: 2688(H) X 1520(V) |
| Pixel Interval | 12 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <40mK at F1.0 |
| Spatial Resolution | 3.33 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.0089 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 30m |
| White LED | Yes |
| White LED Working Distance | 30m |
| S/N Ratio | 75 dB |
| Lens | |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f3.6mm (Thermal camera) Fixed focal, f4.3mm (Visual camera) |
| Aperture | (Thermal camera) F1.0 (Visual camera) F1.6 |
| Horizontal Viewing Angle | (Thermal camera) 50° (Visual camera) 84° |
| Vertical Viewing Angle | (Thermal camera) 37.3° (Visual camera) 43.1° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | (Visual camera) (60Hz) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 352 x 240 (50Hz) 25 fps at 2688 x 1520 25 fps at 1920 x 1080 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 352 x 288 (Thermal camera) 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 640 x 512 25 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Built-in Analytics | People Detection, Vehicle Detection, Smart Intrusion Protection (People Line Crossing Detection, People Intrusion Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Intrusion Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection), Tampering Detection, Temperature Detection, Smoking Detection, Fire Detection, Sun-reflection Filter |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | G.722.1, G.711, G.726, PCM, MP2L2 |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SRTP, FTP, SFTP, SMTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Temperature Measurement | |
| Temperature Measurement Rules | 3 types (point, area, line), up to 21 rules in total (10 points, 10 areas, 1 line) |
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Accuracy | ±8°C (14.4°F) |
| Detection Range | |
| Triggering Analytics Event Notification | (People 1.8x0.5m) 28.8m (Vehicle 1.4x4.0m) 75.6m |
| Triggering Temperature Notification | (Object 0.2x0.2m) 1.7m (Object 1x1m) 58.3m |
| Triggering Fire Detection Event Notification | (Object 0.2x0.2m) 43.2m |
| Triggering Smoking Detection Event Notification | 5.4m |
| Observation Range | Detection: People 150m; Vehicle 460m Recognition: People 38m; Vehicle 112m Identification: People 19m; Vehicle 56m (People: 1.8 x 0.5m) (Vehicle: 1.4 x 4.0m) |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G |
| Web Browser | IE 11, Microsoft Edge, Google Chrome, Firefox |
| Interface | |
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Analog Video Output | 1 x BNC connector, for installation only |
| Digital Input/Output | 2/2 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.5 W (DC), 8.5 W (PoE) |
| Weight | 1650g (3.64lb) |
| Dimensions | (L x W x H): 321.3mm x 106.1mm x 107.0mm (12.65" x 4.18" x 4.21") |
| Environmental Casing | Weatherproof (IP67), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | ≤90% RH, non-condensing |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
