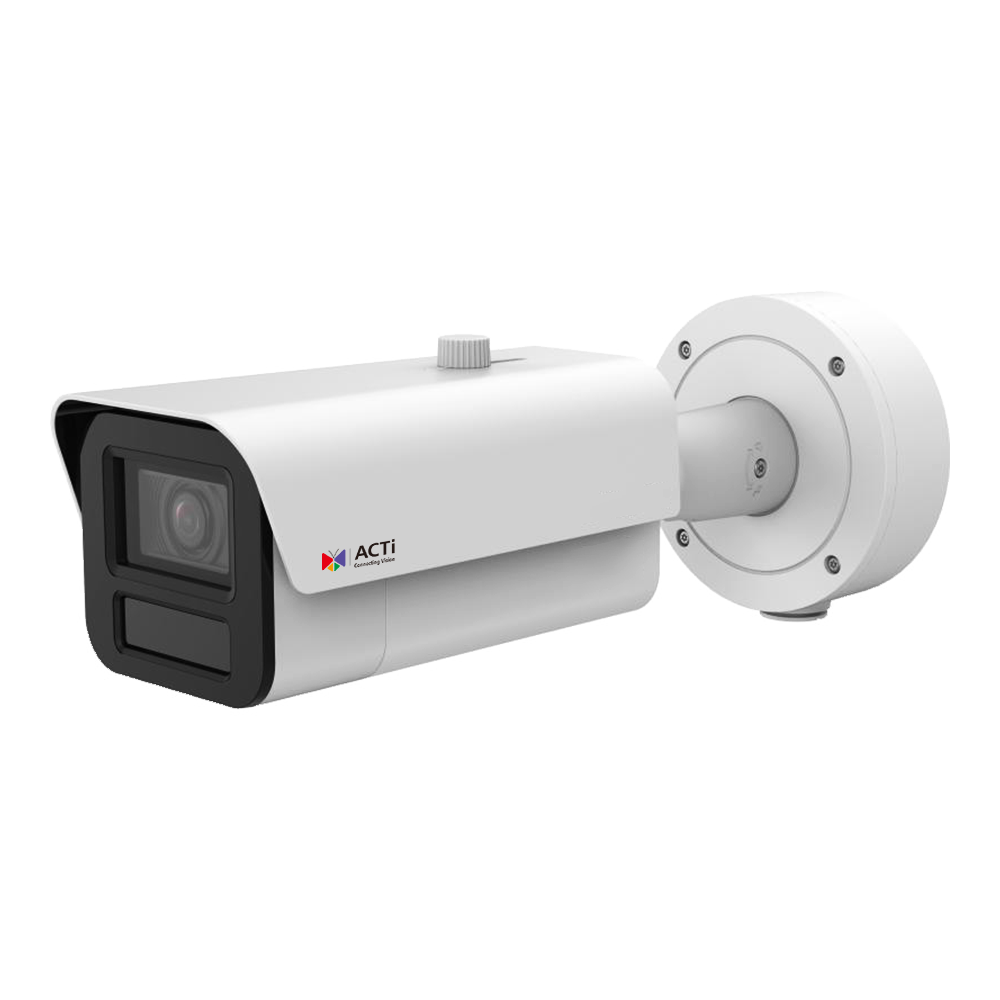

- • 4 Megapixel, 4.3x, Zoom Bullet
- • Deep Learning AI, LightGuard
- • 1/1.8" Sensor, IR LED 60m, Extreme WDR (150 dB)
- • Color Min. Illumination 0.0005 lux
- • Frame Rate 120fps, Frame Rate 60fps
- • Two-way Audio
- • Smart Motion Detection, Smart Intrusion Protection
- • Object Metadata
- • Counting
- • Automatic License Plate Recognition
- • Weatherproof (IP67), Vandal proof (IK10), NEMA 4X
- • DI/DO
| Product Profile | |
|---|---|
| Product Type | Zoom Bullet |
| Product Application | Automatic License Plate Recognition |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.0005 lux at F1.2 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 60m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Number of Traffic Lanes | 2 |
| Lens | |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.38-F2.53 |
| Zoom Ratio | 4.3x optical zoom |
| Iris | P-Iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 106° - 41.8° |
| Vertical Viewing Angle | 55.4° - 23.6° |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 120 fps at 1920 x 1080 60 fps at 2688 x 1520 60 fps at 2560 x 1440 60 fps at 1280 x 720 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 640 x 480 |
| Bit Rate | 32Kbps - 8Mbps |
| Multi-Streaming | Simultaneous 5 streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Extreme WDR (150 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Saturation, Automatic gain control (AGC), Backlight compensation (BLC), Highlight compensation (HLC), Digital Image Stabilizer (DIS, EIS), Defogging |
| Privacy Mask | 8 configurable regions |
| On-Screen Graphics (Picture Overlay) | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Detection, Vehicle Detection, Smart Intrusion Protection, Object Metadata, Tampering Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Vehicle Counting, License Plate Detection, Automatic License Plate Recognition, Road Traffic Monitoring, Vehicle Incorrect Direction Detection |
| Plug-in Analytics | Mask Wearing or Absence Detection, Helmet Wearing or Absence Detection, Construction Site Safety Violation Detection, Fire & Hazardous Materials Control Room Rules Violation Detection, Gas Station & Control Room Rules Violation Detection |
| Analytics | |
| Camera Object Metadata | Vehicle type, Vehicle color, Vehicle brand, Vehicle direction |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, DHCP, ARP, DDNS, DNS, FTP, HTTP, HTTPS, IEEE 802.1X, ICMP, IGMP, NTP, PPPoE, QoS, SFTP, SMTP, SSL/TLS, RTSP, RTCP, RTP, UPnP, UDP, Bonjour |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Event | |
| Event Response | Notify control center, Send E-mail Notification, Save video or snapshot to storage, Upload video or snapshot to FTP server, Command other devices |
| Storage | |
| Blocklist/Allowlist | up to 10,000 records |
| Interface | |
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Digital Input/Output | 2/2 |
| Operating Button | Reset Button |
| Installation | |
| Vehicle Capture Speed | Front-Installation: 120 km/h Side-Installation: 80 km/h |
| General | |
| Power Source | DC 12V, AC 24V, PoE Class 4 (IEEE802.3at) |
| Power Consumption | 20.7 W (PoE) |
| Dimensions | (Ø x H): 140mm x 378.4mm (5.5" x 14.9") |
| Environmental Casing | Weatherproof (IP67), Vandal proof (IK10), Vibration proof |
| Heater | Yes |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Approvals | CE, EN50121-4, IP67, IK10, NEMA 4X |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
