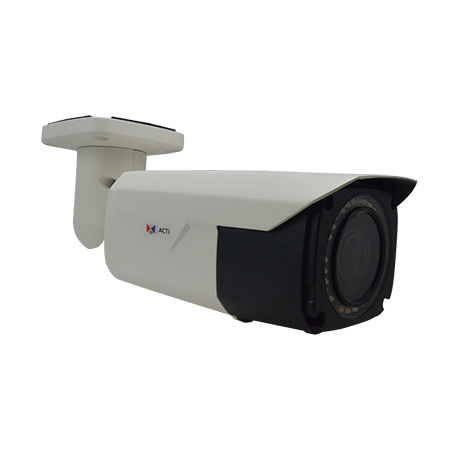

Acti - A45 - 2MP Zoom Bullet, Day / Night, Adaptive IR, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics, 4.3x optical
Part number:
A45
Price:
2MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, ELLS, 4.3x Zoom lens, f2.8-12mm/F1.4-2.8, Auto Focus (for installation), H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK10 (metal casing), DI/DO
Features:
- Face, People and Car Detection
- 2 Megapixel
- Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
- 4.3x Zoom Lens with f2.8-12/F1.4-F2.8, Auto focus (for installation)
- Extreme WDR
- H.265 Compression
- Wide Angle
| Device | |
| Product Type | Zoom Bullet |
| Maximum Resolution | 2MP |
| Product Application | Face, People and Car Detection |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 1945(H) X 1097(V) (2.13 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.05 lux at F1.4; B/W 0.005 lux at F1.4 (AGC on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1150nm |
| IR LED | Adaptive IR LED |
| IR Working Distance | 30m |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1000 TVL |
| Lens |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.4-F2.8 |
| Zoom Ratio | 4.3x optical |
| Zoom Application | Camera Installation |
| Iris | Adaptive iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 92° - 34.8° |
| Vertical Viewing Angle | 49.3° - 19.8° |
| Video |
| Compression | H.265, H.264 (Main profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 720 x 480 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous triple streams based on three configurations |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (142 dB) |
| Image Enhancement | White Balance, Brightness, Backlight compensation, Contrast, Saturation, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics | Yes |
| Built-in Analytics | People Detection*, Car Detection*, Face Detection*, Crowd Detection*, Tampering Detection, People Line Crossing Detection*, People Enter Area Detection*, People Exit Area Detection*, Vehicle Line Crossing Detection*, Vehicle Enter Area Detection*, Vehicle Exit Area Detection*, People Loitering Detection*, Vehicle Loitering Detection* (* To be available through future firmware upgrade) |
| Server-based Analytics | Object Line Counting, ピープルカウント, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror, Rotation |
| Audio |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, G.711 |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login |
| Video Analytics |
| Analysis Source Type | Video |
| Event |
| Event Trigger | Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file* (* To be available through future firmware upgrade), Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile Q |
| Web Browser | IE 11 |
| Auto Firmware Upgrade | Yes* (To be available through future firmware upgrade) |
| Interface |
| Audio Interface | Cable with 3.5mm Phone Jack |
| Local Storage | MicroSDHC, MicroSDXC memory card slot (card not included) |
| Digital Input/Output | 1/1 (Cable with Terminal block) |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12.95 W (PoE) |
| Dimensions | (Ø x L): 80mm x 258.30mm (3.149" x 10.169") |
| Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
| Mount Type | Integrated Bracket, Wall Mount, Ceiling Bracket, Pole Mount |
| Starting Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 20% - 80% RH |
