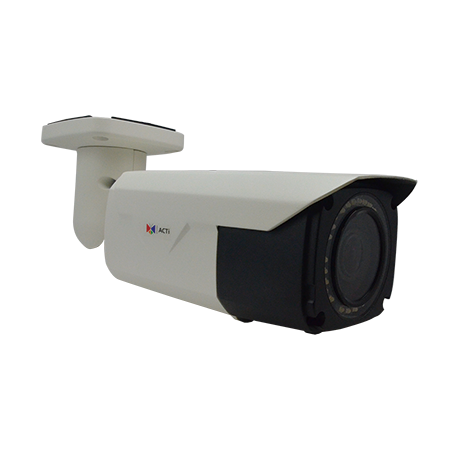

ACTI - A46 - 5MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 5x Zoom lens, f2.7-13.5mm, Auto Focus (for installation), H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK10 (metal casing), DI/DO
ACTI - A46 - 5MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 5x Zoom lens, f2.7-13.5mm, Auto Focus (for installation), H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK10 (metal casing), DI/DO
Part number:
A46
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

5MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS, 5x Zoom lens, f2.7-13.5mm, Auto Focus (for installation), H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK10 (metal casing), DI/DO.



Features:

  • 5 Megapixel
  • Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
  • 5x Zoom Lens with f2.7-13.5/F1.4-F3.3, Auto focus (for installation)
  • Extreme WDR
  • H.265 Compression
  • Wide Angle
  • Event trigger, response and notification
Device
Product TypeZoom Bullet
Maximum Resolution5MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/2.8 "
Effective Pixels2592(H) X 1944(V) (5.04 MP)
Day / NightYes
Low Light SensitivitySuperior
Minimum IlluminationColor: 0.018 lux (30 IRE); B/W: 0 lux (IR LED on)
Color to B/W SwitchISP based switch, configurable
Mechanical IR Cut FilterYes
IR LEDAdaptive IR LED
IR Working Distance30m
Electronic Shutter1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode)
Horizontal Resolution (TV Lines)1600 TVL
S/N Ratio75 dB
Lens
Focal LengthZoom, f2.7-13.5mm
ApertureF1.4-F3.3
Zoom Ratio5x optical zoom
Zoom ApplicationCamera Installation
IrisAdaptive iris
FocusAuto focus
Lens MountBoard mount
Horizontal Viewing Angle96.8° - 30.7°
Vertical Viewing Angle70.4° - 23.1°
Video
CompressionH.265, H.264 (Main profile), MJPEG
Maximum Frame Rate vs. Resolution30 fps at 2560 x 1920
30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 720 x 480
30 fps at 640 x 480
30 fps at 320 x 240
Multi-StreamingSimultaneous triple streams based on configurations of video resolution, compression format, and frame rate
Bit Rate ModeConstant, Variable
Wide Dynamic RangeExtreme WDR (125 dB)
Image EnhancementWhite Balance, Brightness, Backlight compensation (BLC), Contrast, Saturation, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction2D + 3D DNR
Privacy Mask4 configurable regions
Text OverlayYes
On-Screen Graphics (Picture Overlay)Yes
Built-in AnalyticsTampering Detection
Server-based AnalyticsObject Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image OrientationFlip, Mirror, Rotation (Corridor mode)
Audio
Audio Type2-way, Mic-in, Line-in, Line-out
Audio Compression8 kHz, Mono, G.711
Network
Network Protocol & ServiceIPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
SecurityIP address filtering, HTTPS encryption, Password protected user level, Anonymous login
Video Analytics
Analysis Source TypeVideo
Event
Event TriggerVideo motion detection (3 regions), External device through digital input, Sound detection, Tampering detection, Video streams loss
Event ResponseNotify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output
System
System MonitorCPU loading, memory usage and network statistics via API
WatchdogSupport
Integration
Unified SolutionFully compatible with ACTi software
Edge RecordingSupport (integration with NVR by ONVIF Profile G or proprietary protocol)**
ONVIF CompliantYes, Profile S, Profile G, Profile T, Profile Q
Web BrowserIE 11, Google Chrome*, Microsoft Edge*, Apple Safari*
Auto Firmware UpgradeYes
Interface
Local StorageMicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output1/1 (Cable with Terminal block), DC Output Voltage: 5V
Operating ButtonReset Button
General
Power SourceDC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption12.95 W (PoE)
Weight1230.5g (2.71lb)
Dimensions(W x H x D): 94mm x 86mm x 291.1mm (3.70" x 3.39" x 11.46")
Environmental CasingWeatherproof (IP67), Vandal proof metal casing (IK10)
Corrosion ProtectionOptional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years.
Mount TypeIntegrated Bracket, Pole Mount
Starting Temperature-20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature-30°C ~ 50°C (-22°F ~ 122°F)
ApprovalsCE Class A, FCC Class A, EAC, IP67, IK10 (metal casing)
Real-time Clock (RTC)Yes
Warranty3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments* cross-browser compatibility: Motion Detection and Intelligent Video configurations are not available.
** Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
