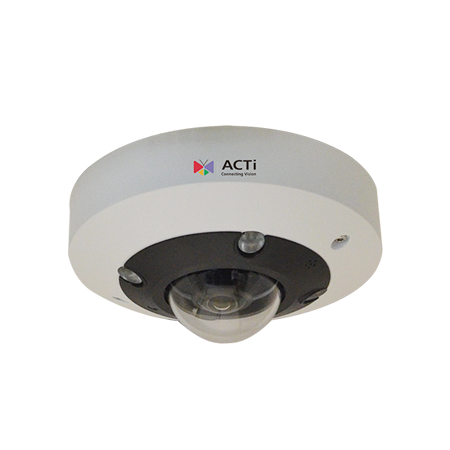

ACTI - A711 - 12MP Outdoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens
Part number:
A711
Price:
12MP Outdoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens, f1.65mm/F2.8 (HOV:180°), H.265/H.264, Dewarping, 2D+3D DNR, Built-in Microphone, MicroSDHC/ MicroSDXC, PoE/DC12V, IP66, IK10, DI/DO.
Features:
- 12 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fisheye Lens with f1.65mm/F2.8
- Extreme WDR
- H.265 Compression
- 360°/180° Panorama View with Dewarped Streaming
- Event trigger, response and notification
| Device | |
| Product Type | Hemispheric Dome |
| Maximum Resolution | 12MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.7 " |
| Effective Pixels | 4072(H) X 3046(V) x 1 (12.4 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F2.8; B/W: 0 lux (IR LED on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED |
| IR Working Distance | 20m |
| Electronic Shutter | 1-1/10000 second (manual mode); 1-1/10000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 3000 TVL |
| S/N Ratio | 75 dB |
| Lens |
| Focal Length | Fixed focal, f1.65mm |
| Aperture | F2.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 190° (overview area) |
| Vertical Viewing Angle | (Fisheye View) 190° |
| Video |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | (Fisheye View) 20 fps at 4000 x 3000 25 fps at 2992 x 2922 25 fps at 3840 x 2160 25 fps at 3200 x 1800 50 fps at 1920 x 1080 50 fps at 1280 x 1024 50 fps at 1280 x 720 50 fps at 1024 x 768 50 fps at 800 x 600 50 fps at 720 x 576 50 fps at 640 x 480 50 fps at 352 x 288 50 fps at 320 x 240 (Dewarped View) 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1600 x 1200 30 fps at 960 x 720 30 fps at 960 x 544 (ePTZ View) 27 fps at 2976 x 2976 30 fps at 2048 x 2048 30 fps at 2048 x 1536 30 fps at 1920 x 1080 27 fps at 1600 x 1200 27 fps at 1408 x 1408 27 fps at 960 x 960 27 fps at 960 x 720 27 fps at 960 x 544 30 fps at 480 x 360 |
| View Mode | Fisheye View Dewarped View ePTZ View |
| Multi-Streaming | Simultaneous quad streams |
| Bit Rate | 128Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Saturation |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| Built-in Analytics | People Detection, Vehicle Detection, Object Based Motion Detection, Tampering Detection, Object Line Crossing Detection, Object Area Counting, Intrusion Detection (Forbidden Area Detection), Missing Object Detection, Unattended Object Detection, Object Loitering Detection, People Counting, People Line Crossing Detection, People Enter Area Detection, People Incorrect Direction Detection, People Loitering Detection, People Tracking, Vehicle Counting, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Incorrect Direction Detection, Vehicle Loitering Detection, Vehicle Tracking, Stopped vehicle detection |
| Image Orientation | Flip, Mirror |
| Audio |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711, G.726, AAC, PCM |
| Network |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event |
| Event Trigger | Video motion detection, Tampering detection, External device through digital input, Sound detection |
| Event Response | E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
| System |
| System Log | Support |
| Watchdog | Support |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | Microsoft Edge(IE mode), Microsoft Edge, Google Chrome, Firefox |
| Interface |
| Audio Interface | 1/1, Cable with 3.5mm Phone Jack |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 1/1 |
| Operating Button | Reset Button |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12.95 W (PoE) |
| Weight | 560g (1.23lb) |
| Dimensions | (Ø x H): 130mm x 57.8mm (5.11" x 2.28") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Mount Type | Wall Mount, Pole Mount, Pendant, Corner Mount, Gang Box |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% - 90% RH |
| Approvals | CE Class A, FCC Class A, IK10 |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
