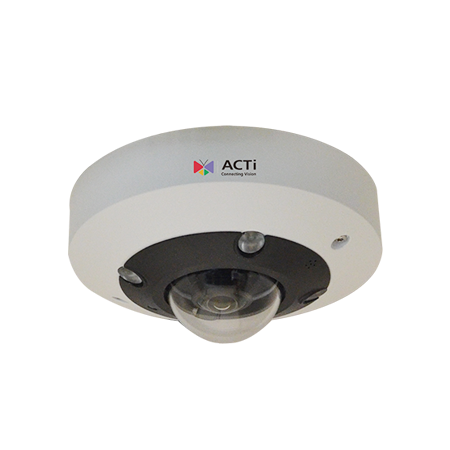

ACTi - A713 - 5MP Outdoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens
ACTi - A713 - 5MP Outdoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens
ACTi - A713 - 5MP Outdoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens

ACTi - A713 - 5MP Outdoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens

Part number:
A713
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

5MP Outdoor Hemispheric Dome with D/N, Adaptive IR, Superior WDR, SLLS, Fixed lens, f1.1mm/F2.4, H.265/H.264, Dewarping, 2D+3D DNR, Audio, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK10, DI/DO.



Features:

  • 5 Megapixel
  • Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
  • Fisheye Lens with f1.1mm/F2.4
  • Extreme WDR
  • H.265 Compression
  • 360°/180° Panorama View with Dewarped Streaming
  • Event trigger, response and notification
Device
Product TypeHemispheric Dome
Maximum Resolution5MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/3.2 "
Effective Pixels2592(H) X 1944(V) (5.04 MP)
Day / NightYes
Low Light SensitivitySuperior
Minimum IlluminationColor: 0.01 lux at F2.4; B/W: 0 lux (IR LED on)
Color to B/W SwitchISP based switch, configurable
Mechanical IR Cut FilterYes
IR Sensitivity Range700-1100nm
IR LEDAdaptive IR LED
IR Working Distance20m
Electronic Shutter1-1/10000 second (manual mode); 1-1/10000 second (auto mode)
Horizontal Resolution (TV Lines)1800 TVL
S/N Ratio56 dB
Lens
Focal LengthFixed focal, f1.1mm
ApertureF2.4
IrisFixed iris
FocusFixed focus
Lens MountBoard mount
Horizontal Viewing Angle197° (overview area)
Vertical Viewing Angle197°
(Fisheye View)
Video
CompressionH.265, H.264 (Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution(Fisheye View)
30 fps at 2560 x 1960
30 fps at 1920 x 1920
30 fps at 1920 x 1080
30 fps at 1600 x 1200
30 fps at 1408 x 1408
30 fps at 960 x 960
30 fps at 960 x 720
30 fps at 960 x 544
(Dewarped View)
30 fps at 1920 x 1080
30 fps at 1600 x 1200
30 fps at 960 x 720
30 fps at 960 x 544
(ePTZ View)
30 fps at 1920 x 1920
30 fps at 1920 x 1080
30 fps at 1600 x 1200
30 fps at 1408 x 1408
30 fps at 960 x 960
30 fps at 960 x 720
30 fps at 960 x 544
30 fps at 480 x 360
View ModeFisheye View
Dewarped View
270-degree Corner View
Multiple View
ePTZ View
Multi-StreamingSimultaneous triple streams based on a single configuration
Bit Rate128Kbps - 12Mbps (per stream)
Bit Rate ModeConstant, Variable
Wide Dynamic RangeExtreme WDR (130 dB)
Image EnhancementWhite Balance, Brightness, Contrast, Sharpness, Saturation, Automatic gain control, Backlight compensation (BLC)
Digital Noise Reduction2D + 3D DNR
Privacy MaskYes, 5 configurable regions
Text OverlayYes
Built-in AnalyticsTampering Detection
Image OrientationFlip, Mirror
Audio
Audio Type2-way, Line-in, Line-out
Audio CompressionPCM, G.711, G.726, AAC
Network
Network Protocol & ServiceIPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DDNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
SecurityIP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control
Event
Event TriggerVideo motion detection, Tampering detection, External device through digital input, Sound detection
Event ResponseE-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output
System
System LogSupport
WatchdogSupport
Integration
Unified SolutionFully compatible with ACTi software
Edge RecordingSupport (integration with NVR by ONVIF Profile G)
ONVIF CompliantYes, Profile S, Profile G, Profile T, Profile M
Web BrowserMicrosoft Edge(IE mode), Microsoft Edge, Google Chrome, Firefox
Interface
Audio Interface1/1, Cable with 3.5mm Phone Jack
Local StorageMicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output1/1 (Terminal block)
Operating ButtonReset Button
General
Power SourceDC 12V, PoE Class 0 (IEEE802.3af)
Power Consumption12.95 W (PoE)
Weight557.5g (1.23lb)
Dimensions(Ø x H): 130mm x 57.8mm (5.11" x 2.28")
Environmental CasingWeatherproof (IP66), Vandal proof (IK10)
Corrosion ProtectionOptional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years.
Mount TypeWall Mount, Pole Mount, Pendant, Corner Mount, Gang Box
HeaterYes
Operating Temperature-30°C ~55°C (-22°F ~ 131°F) heater on
Operating Humidity10% - 90% RH
ApprovalsCE Class A, FCC Class A, IP66, IK10
Real-time Clock (RTC)Yes
Warranty3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
