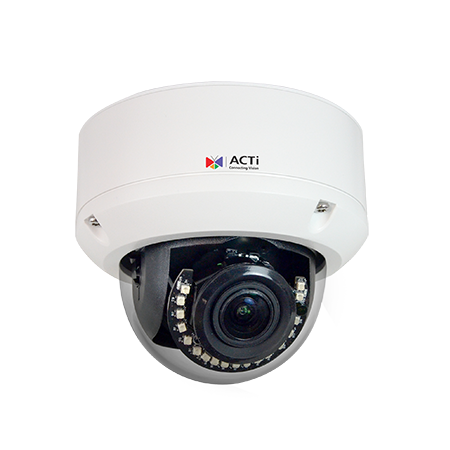

Securely monitor your surroundings with the white A810 5MP Outdoor Network Dome Camera from ACTi. This unit uses a 1/2.8" progressive scan CMOS image sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 49' of night vision. The camera's 2.7-13.5mm varifocal lens delivers a 101.1 to 30.4° horizontal angle of view. Two-way audio is possible thanks to an audio input and output. Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
• Day and night switching
• Simultaneous triple streaming
• Flip, mirror, and rotation (corridor mode, 90, 180, and 270°) image orientation
• Built-in analytics include face detection, people detection, vehicle detection, tampering detection, people line crossing detection, people enter area detection, people exit area detection, and people loitering detection
• Image enhancements include white balance, brightness, contrast, saturation, backlight compensation, strong light suppression, exposure (auto/manual), and digital image stabilizer (DIS, EIS)
• Text overlay, 2D-DNR/3D-DNR, 125 dB wide dynamic range, and privacy masking for four configurable regions
• Automatic firmware upgrades
• Compatible with Internet Explorer 11, Chrome, Edge, and Safari
• Digital I/O
| Key Specs | |
|---|---|
| Image Sensor | 1/2.8"-Type CMOS |
| Focal Length | 2.7 to 13.5mm |
| Field of View | Horizontal: 101.1 to 30.4° Vertical: 72.3 to 22.7° |
| Built-In Microphone | No |
| Power I/O | 1x RJ45 (12VDC) |
| Imaging | |
| Number of Lenses | 1 |
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 5 Megapixel |
| IR Cut Filter | Yes Mechanical |
| Day/Night | Yes |
| Exposure Control | |
| Shutter Speed | 1/64000 to 1/5 Second |
| Signal-to-Noise Ratio | 75 dB |
| Minimum Illumination | 0.018 Lux (Color) 0 Lux (Black and White) |
| Lens | |
| Focal Length | 2.7 to 13.5mm |
| Max Optical Zoom | 5x |
| Field of View | Horizontal: 101.1 to 30.4° Vertical: 72.3 to 22.7° |
| Maximum Aperture | f/1.4 to 3.3 |
| Video | |
| Supported Protocols | Video Streaming Protocol ONVIF Profile Q/ONVIF Profile S/ONVIF Profile T/ONVIF Profile G/ONVIF Profile M |
| Max IP Streaming | H.264, H.265, MJPEG via RJ45 2592 x 1944 up to 30.00 fps |
| Multi-View Streaming | Yes: 3 Streams |
| Networking | |
| Security | Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Interface | |
| Other I/O | 1x RJ45 |
| 1- or 2-Way Audio | Two-Way |
| Built-In Microphone | No |
| System Integration | |
| Analytics | Audio Detection, Camera Sabotage/Tampering, Entering/Exiting, Face Detection, Loitering, Motion Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection |
| Built-In Installation Aids | Autofocus |
| Sensors & Alarms | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Alarm I/O | No |
| Power | |
| PoE Support | PoE 802.3af |
| Power I/O | 1x RJ45 (12VDC) |
| Power Consumption | PoE: 12.95 W |
| Environmental | |
| Operating Conditions | -22 to 122°F / -30 to 50°C |
| Impact Resistance | Impact-Resistant (IK10) |
| Environmental Resistance | Dust/Weather/Water-Resistant (IP66) |
| Startup Temperature | -4 to 122°F / -20 to 50°C |
| General | |
| Certifications | NDAA |
| Illumination | IR LEDs up to 49.2' / 15 m |
