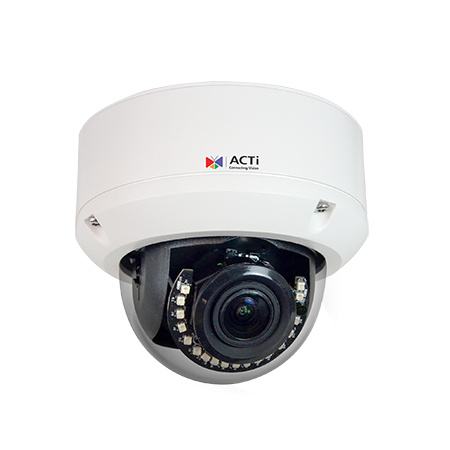

ACTi - A817 - 8MP Face, People and Car Detection Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 4.3x Zoom Lens
Part number:
A817
Price:
8MP Video Analytics Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 4.3x Zoom lens, f2.8-12mm/F1.3, Auto Focus (for installation), H.265/H.264, 4K/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP66, IK10, DI/DO, Built-in Analytics.
Features:
- Face, People and Car Detection
- 8 Megapixel with 4K Ultra HD
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- 4.3x Zoom Lens with f2.8-12/F1.3, Auto focus (for installation)
- Extreme WDR
- H.265 Compression
- Super wide angle
| Device | |
| Product Type | Zoom Dome |
| Maximum Resolution | 8MP |
| Product Application | Face, People and Car Detection |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 3864(H) X 2192(V) (8.46 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.03 lux (30 IRE); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 50m |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 2000 TVL |
| S/N Ratio | 75 dB |
| Lens |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.3 |
| Zoom Ratio | 4.3x optical zoom |
| Zoom Application | Camera Installation |
| Iris | Adaptive iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 103.6° - 31.1° |
| Vertical Viewing Angle | 56.8° - 17.4° |
| Viewing Angle Adjustment | Pan: 360°, Tilt: 90°, Rotation: ±90° |
| Video |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160 (4K Ultra HD) 30 fps at 2592 x 1944 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 720 x 480 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous triple streams |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Enhancement | White Balance, Brightness, Backlight compensation (BLC), Contrast, Saturation, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS) |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics (Picture Overlay) | Yes |
| Built-in Analytics | Deep Learning : Face Detection, People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, People Loitering Detection |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Audio |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, G.711 u-law |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
| Event |
| Event Trigger | Video motion detection (3 regions), External device through digital input, Sound detection, Intelligent event detection, Video streams loss |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
| System |
| System Monitor | CPU loading, memory usage and network statistics via API |
| Watchdog | Support |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol)* |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile Q, Profile T, Profile M |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Apple Safari |
| Auto Firmware Upgrade | Yes |
| Interface |
| Audio Interface | 1/1, Terminal block |
| Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 1/1 (Terminal block), DC Output Voltage: 5V |
| Operating Button | Reset Button |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12.95 W (PoE) |
| Weight | 1231g (2.71lb) |
| Dimensions | (Ø x H): 139.38mm x 129.75mm (5.48" x 5.10") |
| Environmental Casing | Weatherproof (IP67), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Starting Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Temperature | -40°C ~ 50°C (-40°F ~ 122°F) |
| Approvals | CE Class B, FCC Class B, IP67, IK10 |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
