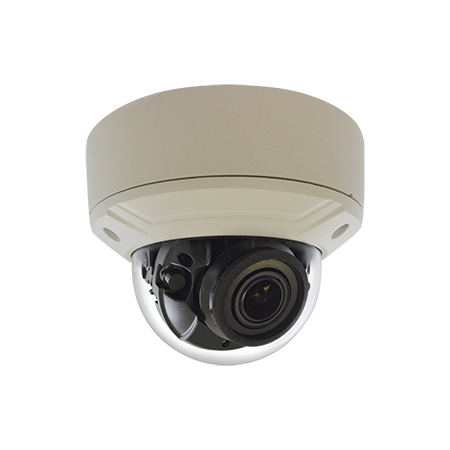

ACTI - A821 - 6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom lens, f2.7-13.5mm/F1.6 (HOV:102.1°-34.5°), H.265/H.264, 3D DNR, Audio, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10, DI/DO
ACTI - A821 - 6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom lens, f2.7-13.5mm/F1.6 (HOV:102.1°-34.5°), H.265/H.264, 3D DNR, Audio, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10, DI/DO
Part number:
A821
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

6MP Outdoor Zoom Dome with D/N, IR, Extreme WDR, SLLS, 5x Zoom lens, f2.7-13.5mm/F1.6 (HOV:102.1°-34.5°), H.265/H.264, 3D DNR, Audio, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10, DI/DO.



Features:

  • 6 Megapixel
  • Day & Night with Superior Low Light Sensitivity and IR LED
  • 5x Zoom Lens with f2.7-13.5/F1.6, Auto focus (for installation)
  • Extreme WDR
  • H.265 Compression
  • Super wide angle
  • Taiwan IoT Cybersecurity Certification Level 1 (TAICS)
Device
Product TypeZoom Dome
Maximum Resolution6MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/2.7 "
Effective Pixels3864(H) X 2192(V) x 1 (8.46 MP)
Day / NightYes
Low Light SensitivitySuperior
Minimum IlluminationColor: 0.003 lux; B/W: 0 lux (IR LED on)
Mechanical IR Cut FilterYes
IR LEDIR LED x 3 (850 nm)
IR Working Distance85m
Electronic Shutter1/5-1/100000 second (auto mode)
S/N Ratio75 dB
Lens
Focal LengthZoom, f2.7-13.5mm
ApertureF1.6
Zoom Ratio5x optical zoom
Zoom ApplicationCamera Installation
IrisFixed iris
FocusAuto focus
Lens MountBoard mount
Horizontal Viewing Angle102.1° - 34.5°
Vertical Viewing Angle56° - 20.6°
Viewing Angle AdjustmentPan: 0°-355°, Tilt: 0°-75°, Rotation: 0°-355°
Video
CompressionH.265, H.264 (Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution20 fps at 3200 x 1800
20 fps at 3072 x 2048
20 fps at 2592 x 1944
30 fps at 2688 x 1520
30 fps at 2560 x 1440
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 640 x 480
Multi-StreamingSimultaneous quad streams
Bit Rate ModeConstant, Variable
Wide Dynamic RangeExtreme WDR (150 dB)
Image EnhancementWhite Balance, Brightness, Contrast, Sharpness, Saturation, Backlight compensation (BLC), Strong Light Suppression
Digital Noise Reduction2D + 3D DNR
Privacy Mask4 configurable regions
Text OverlayYes
On-Screen Graphics (Picture Overlay)Yes
Built-in AnalyticsDeep Learning : Face Detection, Tampering Detection, Object Based Motion Detection, Object Line Crossing Detection, Object Enter Area Detection, People Line Crossing Detection, People Enter Area Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection
Image OrientationFlip, Mirror, Rotation (Corridor mode)
Audio
Audio Type2-way, Line-in, Line-out
Audio CompressionPCM, G.711, AAC(*3), G.726(*3)
Network
Network Protocol & ServiceIPv4, IPv6(*3), TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
SecurityIP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control, Standard IoT Security (anti-hacking, anti-malware)
Event
Event TriggerVideo motion detection (4 polygonal regions with up to 10 vertices), External device through digital input, Intelligent event detection, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account)
Event ResponseNotify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play alert sound, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output
System
System MonitorCPU loading, memory usage and network statistics via API
System LogSupport
WatchdogSupport
Integration
Unified SolutionFully compatible with ACTi software
GPS PositionManual setting
Edge RecordingSupport (integration with NVR by ONVIF Profile G or proprietary protocol)(*2)
ONVIF CompliantYes, Profile S, Profile G, Profile T, Profile M
Web BrowserIE 11, Google Chrome*, Microsoft Edge*, Apple Safari*
Auto Firmware UpgradeYes
Interface
Local StorageMicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output1/1 (Terminal block)
Operating ButtonReset Button
General
Power SourceDC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption12.5 W (PoE)
Weight1280g (2.82lb)
Dimensions(Ø x H): 141mm x 99.5mm (5.55" x 3.9")
Environmental CasingWeatherproof (IP68), Vandal proof (IK10)
Corrosion ProtectionOptional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years.
Mount TypeWall Mount, Pole Mount, Pendant, Corner Mount
Operating Temperature-40°C ~ 60°C (-40°F ~ 140°F)
ApprovalsCE Class B, FCC Class B, IP68, IK10, UL Listed, Taiwan IoT Cybersecurity Certification Level 1 (TAICS)
ColorWhite
Real-time Clock (RTC)Yes
Warranty3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Quick Installation Guide
0.9mb
