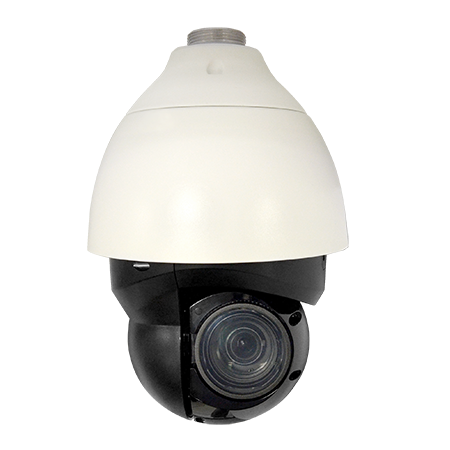

ACTi - A952 - 8MP ALPR Outdoor Speed Dome with D/N, Adaptive IR, Extreme WDR, ELLS, 22x Zoom Lens
Part number:
A952
Price:
8MP Outdoor Speed Dome with D/N, IR, Extreme WDR, ELLS, 22x Zoom lens, f6.4-138.5mm/F1.5 (HOV: 62.6°-3.2°), P-Iris, Auto Focus, H.265/H.264, 2D+3D DNR, Audio, MicroSDXC, High PoE/AC24V, IP66, DI/DO
Features:
- ALPR
- 8 Megapixel with 4K Ultra HD
- Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
- Extreme WDR
- Endless Pan & Tilt
- H.265 Compression
- Built-in Analytics
| Device | |
| Product Type | Speed Dome |
| Maximum Resolution | 8MP |
| Product Application | Face, People and Car Detection, ALPR |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Effective Pixels | 3864(H) X 2180(V) (8.42 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.002 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED |
| IR Working Distance | 250m |
| Electronic Shutter | 1-1/10000 second (manual mode); 1-1/10000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f6.4-138.5mm |
| Aperture | F1.5 |
| Zoom Ratio | 22x optical zoom, 10x digital zoom |
| Iris | P-Iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 62.6° - 3.2° |
| Vertical Viewing Angle | 36.7° - 1.9° |
| PTZ | |
| Manual Panning / Tilting Speed | 0.1° - 90°/second, 0.1° - 55°/second |
| Preset Panning / Tilting Speed | 300°/second, 300°/second |
| Panning Range | 360° endless |
| Tilting Range | -20°~100° |
| PTZ Control | PTZ Control, Speed Control, Auto scan, 256 preset points |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160 (4K Ultra HD) |
| 30 fps at 3200 x 1800 | |
| 30 fps at 1920 x 1080 | |
| 30 fps at 1280 x 1024 | |
| 30 fps at 1280 x 720 | |
| 30 fps at 800 x 600 | |
| 30 fps at 720 x 480 | |
| 30 fps at 640 x 480 | |
| 30 fps at 352 x 240 | |
| 30 fps at 320 x 240 | |
| Multi-Streaming | Simultaneous quad streams |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (150 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Saturation, Backlight compensation (BLC), Digital Image Stabilizer (DIS, EIS) |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| Built-in Analytics | Deep Learning : Face Recognition, Face Detection, People Detection, Vehicle Detection, Object Based Motion Detection, Tampering Detection, Object Line Crossing Detection, Object Area Counting, Intrusion Detection (Forbidden Area Detection), Missing Object Detection, Unattended Object Detection, Object Loitering Detection, People Counting, People Line Crossing Detection, People Enter Area Detection, People Incorrect Direction Detection, People Loitering Detection, People Tracking, Vehicle Counting, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Incorrect Direction Detection, Vehicle Loitering Detection, Vehicle Tracking, Stopped vehicle detection, License Plate Detection, Automatic License Plate Recognition |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) (90°, 180°, 270°) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711, G.726, AAC, PCM |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection, External device through digital input, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
| System | |
| Watchdog | Support |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | Microsoft Edge(IE mode), Microsoft Edge, Google Chrome, Firefox |
| Supported Countries | Japan / Taiwan |
| Storage | |
| User Database | User Capacity: 10,000 |
| (up to 5 images per person) | |
| Interface | |
| Audio Interface | 1/1, Terminal block |
| Analog Video Output | 1 x BNC connector |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 4/2 (Terminal block) |
| Operating Button | Reset Button |
| General | |
| Power Source | AC 24V, High PoE (IEEE802.3bt, Type 3, class 6) 60W |
| Power Consumption | High PoE: Max. 51W (by using all 4 pairs of standard Cat 5e or higher Ethernet cable), AC: Max. 59.05W, 87.12VA |
| Weight | 3920g (8.64lb) |
| Dimensions | (Ø x H): 207mm x 300mm (8.15" x 11.81") |
| Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Bundled Accessories | High PoE injector |
| Heater | Yes |
| Operating Temperature | -40°C ~50°C (-40°F ~ 122°F) heater on |
| Operating Humidity | 10% - 90% RH |
| Approvals | CE Class A, FCC Class A, IP66, IK10 (metal casing) |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s) (1 year in continuous motion). For extended warranty offering, see http://www.acti.com/support/warranty |
