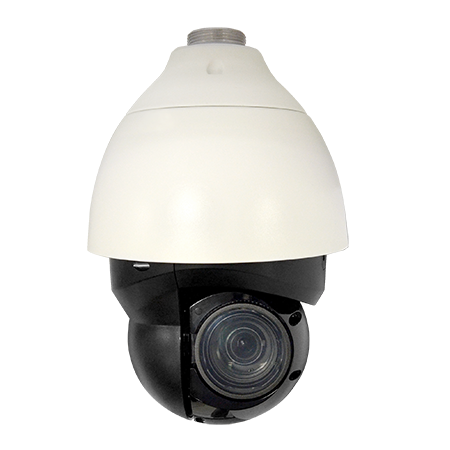

• 5 Megapixel, 40x, PTZ
• Deep Learning AI
• IR LED 250m, Extreme WDR (150 dB)
• Color Min. Illumination 0.002 lux
• Frame Rate 60fps
• Two-way Audio
• 360° endless
• Face Recognition
• Weatherproof (IP66), Vandal proof (IK10)
• Taiwan IoT Cybersecurity Certification
• DI/DO
| Product Profile | |
|---|---|
| Product Type | PTZ |
| Application Environment | Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 2608(H) X 1964(V) (5.1 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.002 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED |
| IR Working Distance | 250m |
| Electronic Shutter | 1-1/10000 second (manual mode); 1-1/10000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f4.25-170mm |
| Aperture | F1.6 |
| Zoom Ratio | 40x optical zoom, 10x digital zoom |
| Iris | P-Iris |
| Focus | Auto focus |
| Horizontal Viewing Angle | 62.6° - 1.9° |
| Vertical Viewing Angle | 48.8° - 1.4° |
| PTZ | |
| Manual Panning / Tilting Speed | 0.1° - 90°/second, 0.1° - 55°/second |
| Preset Panning / Tilting Speed | 300°/second, 300°/second |
| Panning Range | 360° endless |
| Tilting Range | -20°~100° |
| PTZ Control | Remote manual control, Speed Control, Drag to Pan and Tilt, Click to Center, 256 preset points, Auto scan |
| Absolute Position | Yes |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2592 x 1944 48 fps at 2560 x 1440 57 fps at 2048 x 1536 60 fps at 1920 x 1080 60 fps at 1280 x 1024 60 fps at 1280 x 720 60 fps at 1024 x 768 60 fps at 800 x 600 60 fps at 720 x 480 30 fps at 640 x 480 30 fps at 352 x 240 30 fps at 320 x 240 |
| Bit Rate Mode | Constant, Variable |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (150 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Saturation, Backlight compensation (BLC), Digital Image Stabilizer (DIS, EIS) |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| Built-in Analytics | Deep Learning : Face Recognition, Face Detection, People Detection, Vehicle Detection, Object Based Motion Detection |
| Analytics | |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711, G.726, AAC, PCM |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Detection Range | |
| Observation Range | Detection: People 3112m; Vehicle 3176m Observation: People 1235m; Vehicle 1260m Recognition: People 622m; Vehicle 635m Identification: People 311m; Vehicle 318m |
| Event | |
| Event Trigger | Video motion detection, External device through digital input, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Save video to storage, Upload snapshot to FTP server, Activate external device through digital output |
| System | |
| Watchdog | Support |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | Microsoft Edge(IE mode), Microsoft Edge, Google Chrome, Firefox |
| Interface | |
| Audio Interface | 1/1, Terminal block |
| Digital Input/Output | 4/2 (Terminal block) |
| General | |
| Power Source | AC 24V, PoE Type 3 Class 6 (IEEE802.3bt) |
| Power Consumption | 59.05 W (AC), 51 W (PoE) |
| Environmental Casing | Weatherproof (IP66), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Heater | Yes |
| Operating Temperature | -40°C ~50°C (-40°F ~ 122°F) heater on |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Approvals | CE, FCC, IP66, IK10 (metal casing), CNS-16120 |
| Color | White |
| Warranty | 3 Year(s) (1 year in continuous motion). For extended warranty offering, see http://www.acti.com/support/warranty |
