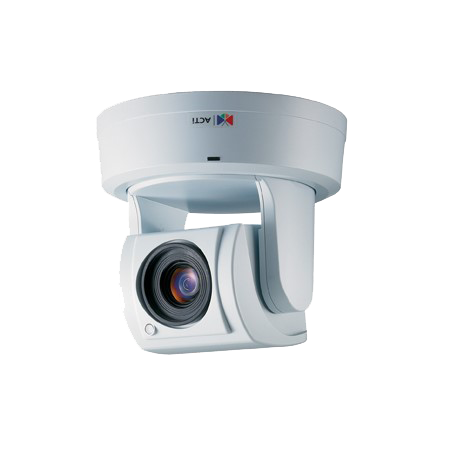

Acti - ACM-8511 - 0.35MP Indoor Mini PTZ, Day / Night, 10x optical
Part number:
ACM-8511
Price:
M-JPEG/MPEG-4 NTSC Day and Night IP PTZ Camera supports up to Full D1 resolution, w/ two-way audio, 480 TV Line, CCD, PoE, Power Adapter, ACTi NVR S/W, Surface mount (other mounting options available), 10x optical zoom
Features:
- 0.35 Megapixel
- Day & Night
- Pan & Tilt
- Event trigger, response and notification
| Device | |
| Product Type | Mini PTZ |
| Maximum Resolution | 0.35MP |
| Application Environment | Indoor |
| Image Sensor | CCD |
| Sensor Size | 1/4 " |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 2.5 lux at F1.8 (30 IRE , 2400 K); B/W: 0.07 lux at F1.8 (30 IRE, 2400 K) |
| Color to B/W Switch | DSP based switch, configurable |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| Electronic Shutter | 1/100-1/10000 second (manual mode, 60 Hz); 1/60-1/120000 second (auto mode, 60 Hz) |
| S/N Ratio | 44 dB |
| Lens |
| Focal Length | Zoom, f4.2-42mm |
| Aperture | F1.8-F2.9 |
| Zoom Ratio | 10x optical, 10x digital |
| Iris | DC iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 48.0° - 5.0° |
| PTZ |
| Panning Range | 0°~354° |
| Tilting Range | -25°~90° |
| PTZ Control | Remote manual control, 10 preset tours, Auto scan |
| Absolute Position | Yes |
| Video |
| Compression | MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 720 x 480 30 fps at 352 x 240 |
| Multi-Streaming | Multiple streams based on a single configuration |
| Bit Rate | 28Kbps - 3Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Automatic gain control, Automatic exposure |
| Digital Noise Reduction | No |
| Privacy Mask | 1 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Object Based Motion Detection, Tamper, ピープルカウント, Object Line Crossing Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Heat Map, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
| Audio |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding |
| Network |
| Network Protocol & Service | IP, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| Web Browser | IE 8.0 or newer |
| Interface |
| Audio Interface | 3.5mm Phone Jack |
| Digital Input/Output | 1/1 |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 5.8 W (PoE), 4.8 W (DC) |
| Weight | 550g (1.213lb) |
| Dimensions | (Ø x H): 132mm x 132mm (5.2" x 5.2") |
| Environmental Casing | No |
| Bundled Accessories | Surface mount |
| Mount Type | Surface, Flush, Pendant, Wall Mount, Corner Mount, Pole Mount |
| Starting Temperature | 0°C ~ 45°C (32°F ~ 112°F) |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 112°F) |
| Operating Humidity | 10% - 85% RH |
