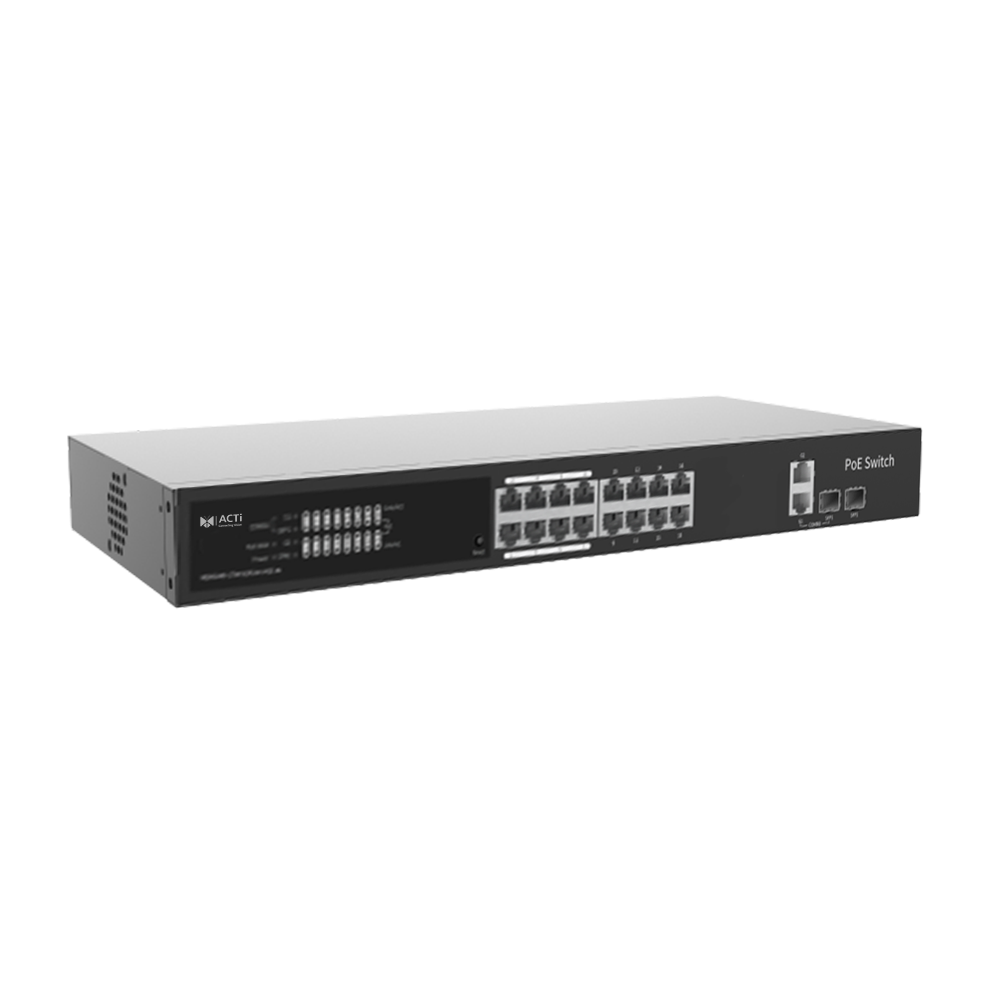

ACTi - PPSW-3104 - 16-Port 802.3at Smart Managed PoE Switch
Part number:
Price:
16-Port 802.3at Smart Managed PoE Switch (PoE Budget 250W)
| Product Profile | |
| Product Type | Data Switch |
| Description | 16-Port 802.3at Smart Managed PoE Switch (PoE Budget 250W) |
| Switch Class | Layer 2 |
| Switch Architecture | Store-and-Forward |
| Network Performance | |
| Switching Capacity | 38Gbps |
| Forwarding Rate | 28.27Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4 megabits |
| Flow Control | Full-duplex; Half-duplex; Auto-negotiation |
| Jumbo Frame | 9K |
| Network | |
| Ethernet Port | Total ports: 18 port(s) PoE: 16 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector Non-PoE: 1 port(s), Ethernet (1000 Base-T), SFP connector |
| Security | HTTPS encryption, TLS v1.2 encrypted communication |
| System | |
| Managed | Yes (Smart Managed) |
| Management Features | Cloud managed, Web browser |
| General | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Output | Maximum 30 Watts per port |
| PoE Power Budget | Maximum 250 W |
| Power Source | AC 100-240V |
| Fan | Yes, 1 fan(s) |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Color | Black |
| Material | Metal |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
Datasheet
1.1mb
