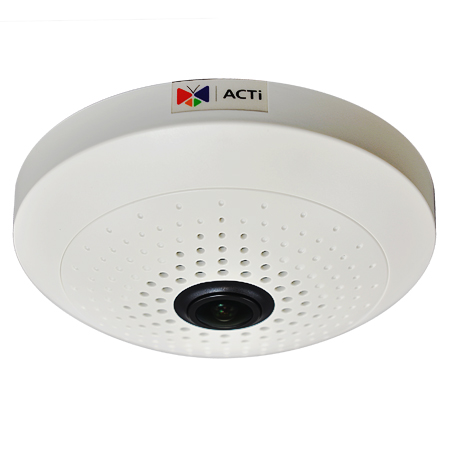

ACTI - B55 - 10MP with D/N, Basic WDR, Fixed Lens
Part number:
B55
Price:
10MP Indoor Fisheye Dome with D/N, Basic WDR, Fixed lens, f1.37mm/F2.0 (HOV:187.7° (overview area), 114.5° (high detail area)), H.264, DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, DI/DO
Features:
- 10 Megapixel
- Day & Night
- Fisheye Lens with f1.37mm/F2.0
- Basic WDR
- 180°/360° Fisheye View
- Event trigger, response and notification
| Device | |
| Product Type | Mini Fisheye Dome |
| Maximum Resolution | 10MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.3 " |
| Effective Pixels | 3856(H) X 2764(V) (10.66 MP) |
| Day / Night | No |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| Electronic Shutter | 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1450 TVL |
| S/N Ratio | 52 dB |
| Lens |
| Focal Length | Fixed focal, f1.37mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 187.7° (overview area) 114.5° (high detail area) |
| Vertical Viewing Angle | 187.69° |
| Viewing Angle Adjustment | Rotation: ±90° |
| Video |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 7 fps at 3648 x 2736 7 fps at 2592 x 1944 7 fps at 2048 x 1536 7 fps at 1440 x 1080 7 fps at 1280 x 960 7 fps at 800 x 600 7 fps at 640 x 480 7 fps at 320 x 240 |
| View Mode | Fisheye View |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 6Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Basic WDR (70 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless |
| Digital Noise Reduction | DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics | Yes |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
| Audio |
| Audio Type | 1-way, Mic-in, Line-in |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
| Event |
| Event Trigger | Video motion detection (3 regions), Sound detection, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile Q |
| GB28181 Compliant | Yes |
| Web Browser | IE 11 |
| Auto Firmware Upgrade | Yes |
| Interface |
| Audio Interface | Cable with 3.5mm Phone Jack |
| Local Storage | MicroSDHC, MicroSDXC memory card slot (card not included) |
| General |
| Power Source | PoE Class 1 (IEEE802.3af) |
| Power Consumption | 3.84 W (PoE) |
| Weight | 497g (1.095lb) |
| Dimensions | (Ø x H): 110mm x 60mm (4.3" x 2.4") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10), Vibration proof (EN50155) |
| Mount Type | Surface, Gang Box, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount |
| Starting Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH |
| Approvals | CB, IP68, IK10, NEMA 4X, EN50155, UL Listed (UL 60950-1) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
