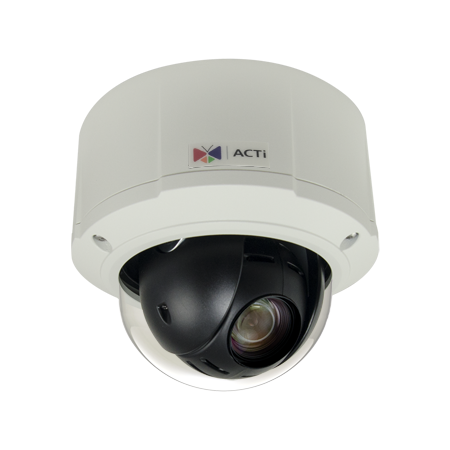

ACTI - B912 - 5MP Video Analytics Outdoor Mini PTZ with D/N, Extreme WDR, SLLS, 10x Zoom lens, f4.7-47mm/F1.6-3.0 (HOV:50.67°-5.14°), DC iris, Auto Focus, H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10, DI/DO
Part number:
B912
Price:
5MP Video Analytics Outdoor Mini PTZ with D/N, Extreme WDR, SLLS, 10x Zoom lens, f4.7-47mm/F1.6-3.0 (HOV:50.67°-5.14°), DC iris, Auto Focus, H.265/H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10, DI/DO, Built-in Analytics.
Features:
- 5 Megapixel
- Day & Night with Superior Low Light Sensitivity
- 10x Zoom Lens with f4.7-47mm/F1.6-F3.0, DC iris, Auto focus
- Extreme WDR
- Pan & Tilt
- H.265 Compression
- Event trigger, response and notification
| Device | |
| Product Type | Mini PTZ |
| Maximum Resolution | 5MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.9 " |
| Effective Pixels | 3096(H) X 2202(V) (6.82 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux at F1.6; B/W: 0.002 lux at F1.6 |
| Color to B/W Switch | ISP based switch |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | No |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1750 TVL |
| S/N Ratio | 75 dB |
| Lens |
| Focal Length | Zoom, f4.7-47mm |
| Aperture | F1.6-F3.0 |
| Zoom Ratio | 10x optical zoom |
| Zoom Application | Camera Installation, Manual Operation, Auto Zoom by Event |
| Iris | DC iris |
| Focus | Learning-based Auto Focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 50.67° - 5.14° |
| Vertical Viewing Angle | 39.23° - 3.86° |
| PTZ |
| Scan Panning / Tilting Speed | 1.6° - 64°/second, 1.6° - 32°/second |
| Manual Panning / Tilting Speed | 0.16° - 54.72°/second, 0.16° - 27.36°/second |
| Preset Panning / Tilting Speed | 1.54° - 180°/second, 0.5° - 90°/second |
| Panning Range | -175°~175° |
| Tilting Range | 0°~180° (with E-flip) |
| PTZ Control | Remote manual control, 10 preset tours, Auto scan |
| Preset Accuracy (Panning/Tilting) | 1.5°/1.5° |
| Absolute Position | Yes |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P, ACTi URL command |
| Video |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2592 x 1944 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous triple streams based on configurations of video resolution, compression format, and frame rate |
| Bit Rate | 128Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (120 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Saturation, Sharpness, Automatic gain control, Flickerless, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions for each of 17 preset points |
| Text Overlay | Yes |
| Built-in Analytics | Object Based Motion Detection, Tampering Detection, Shock Detection |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
| Audio |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control, Standard IoT Security (anti-hacking, anti-malware) |
| Event |
| Event Trigger | Video motion detection (10 included and excluded polygonal regions), External device through digital input, Tampering detection, Shock Detection, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account) |
| Event Response | Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
| System |
| System Monitor | CPU loading, memory usage and network statistics via API |
| System Log | Support |
| Watchdog | Support |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol)** |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| GB28181 Compliant | Yes |
| Web Browser | IE 11, Google Chrome*, Microsoft Edge*, Apple Safari* |
| Auto Firmware Upgrade | Yes |
| Interface |
| Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Digital Input/Output | 1/1 |
| Operating Button | Reset Button |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12 W (PoE) |
| Weight | 1493g (3.292lb) |
| Dimensions | (Ø x H): 152.8mm x 131.0mm (6" x 5.2") |
| Environmental Casing | Weatherproof (IP67), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 10 years. |
| Mount Type | Surface, Wall Mount, Pendant, Flush, Corner Mount, Pole Mount, Gang Box |
| Heater | Yes |
| Starting Temperature | -30°C ~ 60°C (-22°F ~ 140°F) within 30 minutes |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | 10% - 85% RH |
| Approvals | CE (EN 55032 Class B, EN 55024), FCC Class B, EAC, IP67, IK10, NEMA 4X, UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s) (3 months in continuous motion). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * cross-browser compatibility: Not available for H.265 video decoding and Intelligent Video settings ** Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
