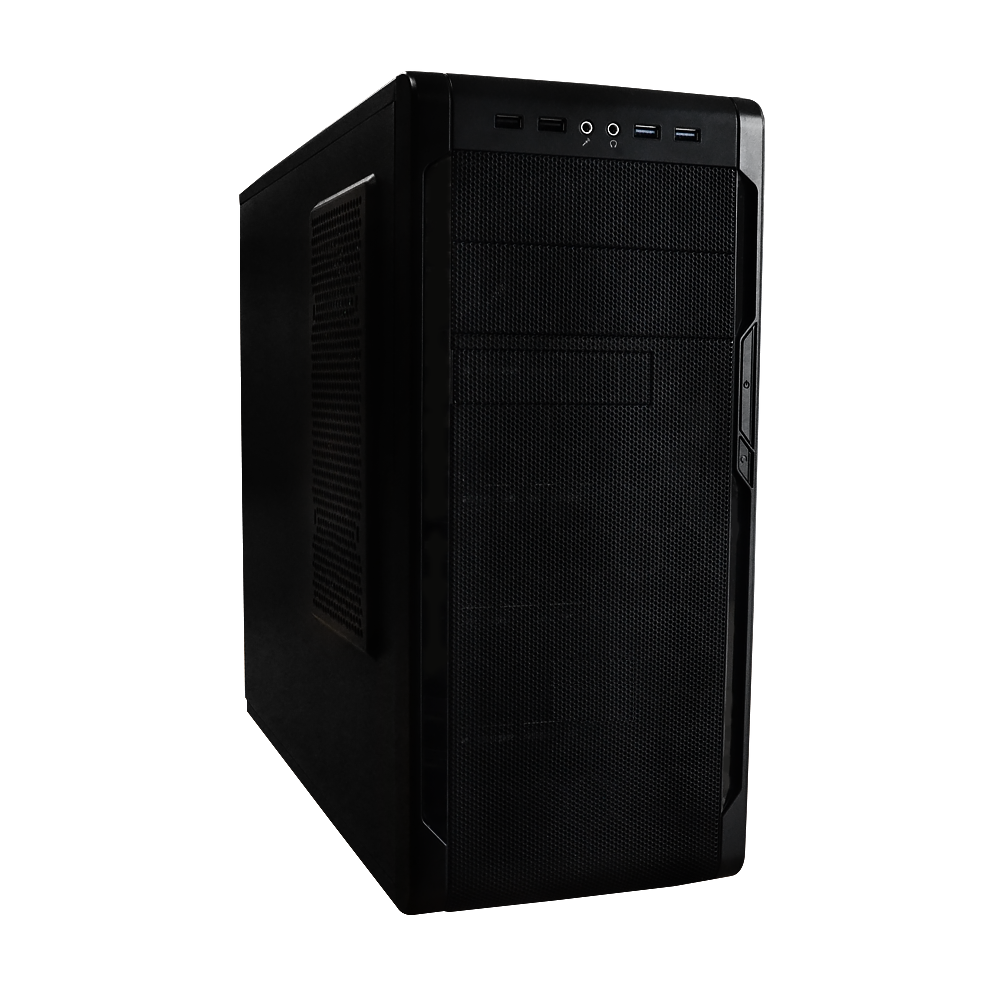

Acti - BNR-300 - 100-Channel Tower Standalone NVR
Part number:
BNR-300
Price:
100-Channel 4-Bay Tower Standalone NVR with NVR 3 Business edition, Recording Throughput 384 Mbps, Instant Playback, e-Map, HDMI and Display port, Remote Access, Video Export, 64-Channel Synchronized Playback, 32-channel free license included (for ACTi video devices), 4-Bay (Storage Disks not included), Audio, AC 100-240V.
Features:
- 4-bay Tower Standalone NVR
- Maximum Number of Video Devices: 100 (Free License: 32)
- Multi-Browser Support for Lite Web Client
- System Monitoring and Notifications
- Workstation, Web Client, Mobile Client
- Event trigger, response and notification
- Intel Pentium Gold G7400, 16GB
| [Video Device]: | Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video loss and recovery, Disk Write Failure and Available |
| Event Response | Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots |
| Redundancy Server | |
| Redundancy Service | Yes, N-to-N, N+1 (With limited functions when NVR 3 server acts as Redundancy server) |
| System | |
| Permission control | Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period, Password Expiration Notification |
| Watchdog | Support |
| Client PC Operating System | Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Server Operating System | Windows 10 IoT |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iOS, Android device |
| USB | 6-Port USB 2.0, 2-Port USB 3.0, 2-Port USB 3.2 |
| Language | Multi-Language |
| Integration | |
| Unified Solution | Fully compatible with ACTi cameras and encoders |
| CMS Support | No |
| GPS Position | Manual setting |
| Edge Recording | Automatically restore the lost videos from the memory card of camera to NVR server via ONVIF (Profile G) or proprietary protocol integrations after network connection recovery. |
| ONVIF Compliant | Yes, Profile S (contains the officially ONVIF conformant software NVR 3 Business) |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.), Lite web client: Microsoft Edge 80.0.361.66 (Normal mode) or newer, Google Chrome 71.0.3578 or newer, Firefox 64.0.2 or newer, Apple Safari 12.0.2 or newer |
| Third-party Integration | No |
| Storage | |
| Supported Storage Technology | NAS, SAN |
| System Drive | M.2 SSD, 250GB |
| Storage Bay | SATA, Max. 4 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 22TB x4 |
| RAID Level | Software RAID 0, 1, 5, 10 |
| Interface | |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Local Display Interface | HDMI x 2, Display Port x 1 |
| General | |
| Power Source | AC 100-240V |
| Power Supply | 400W |
| Weight | 5210g (11.49lb) |
| Dimensions | (W x H x D): 190mm x 426mm x 491.5mm (7.48" x 16.77" x 19.35") |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% - 85% RH |
| Remote Access | Workstation, Web Client, Mobile Client |
| Color | Black |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | ** The actual maximum number of channels may vary depending on the server/client PC performance and network throughput. |
