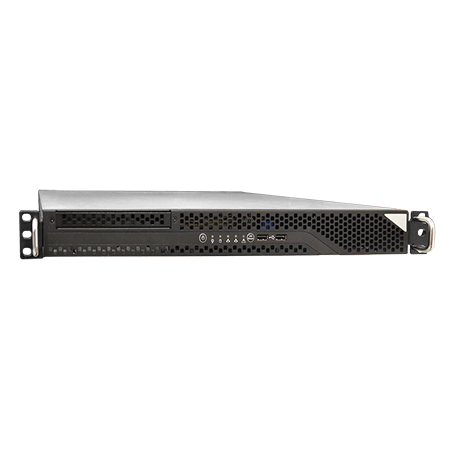

ACTi - CMS-201 - 6400-Channel Rackmount Standalone CMS
Part number:
CMS-201
Price:
6400-Channel 1-Bay Rackmount Standalone CMS with 64-channel display layout, e-Map, HDMI, DVI and Display port, Remote Access, Video Export, 64-Channel Synchronized Playback, 200-channel free license included, 1-Bay (Storage Disks not included), Audio, AC 100-240V
Features:
- 1-bay 1U Rackmount Standalone CMS
- Maximum Number of Video Devices: 6400 (Free License: 200)
- Multi-Browser Support for Lite Web Client (CMS v.2.0.13)
- Taiwan IoT Cybersecurity Certification Level 1 (TAICS)
- Location-based management with e-Map & Google Map
- Workstation, Web Client, Mobile Client
- Video export formats: RAW, AVI, MP4, EXE
| Device | |
| Product Type | Standalone CMS |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Maximum Number of Video Devices | 6400 |
| Maximum Number of POS devices | 6400 (requires additional license) |
| Maximum Number of Access Control and Network I/O devices | 6400 (requires additional license) |
| Maximum Number of Clients | Local: 1, Remote: 5 |
| Hardware | |
| CPU | Intel Core i7-7700 |
| RAM | 16GB, DDR4, 2666MT/s |
| License | |
| License required | Yes |
| Free License | 200 |
| Live View | |
| Display Layout Mode | Local: 1, 3, 4, 5, 6, 8, 9, 10, 12, 16 |
| Remote (IE client): | 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64 |
| Remote (Lite web client): | 1, 3, 4, 5, 6, 8, 9, 10, 12, 16 |
| Remote (Workstation): | 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, 81, 100, 121 (11x11), 144 (12x12), 169 (13x13), 196 (14x14), 225 (15x15) ** |
| CMS display grid cells can be merged into different shape and size. | |
| Fisheye Dewarping | Yes |
| Maximum display layout | 225 |
| Local Live View performance | Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full |
| Instant Playback | Instant Playback in live view window |
| Embedded websites in Live View | Display and connect to pre-configured embedded website |
| Map | |
| e-Map | Yes |
| Google Map | Yes |
| Layout | Area maps with camera icons, small live view windows, view linker, source linker, event trigger |
| Setup | e-Map image upload, Google maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for Point-of-sale (POS), Access Control, Network I/O |
| PTZ Mode | Mouse PTZ mode to control e-Map video streams |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control, 32 preset tours |
| Joystick | USB based joystick supported |
| Video | |
| Compression | H.265, H.264, MPEG-4, MJPEG |
| Hardware Accelerated Decoding | Yes (for workstation PC only), H.264, H.265 |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client) |
| Ethernet Port | 2 x Ethernet (1000 Base-T), RJ-45 connector |
| Recording | |
| Manual Recording | Yes |
| Dual Stream Management | Yes |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds (1/64, 1/32, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256) or frame-by-frame, pause, stop |
| Synchronized Playback | up to 225 layout grids** |
| Recording Search | Search video recordings by time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download |
| Smart Search | Smart search of recorded video by Motion Detection and Tamper |
| Video Export | RAW, AVI, MP4, EXE |
| Snapshot Export | BMP, JPEG, PNG |
| Embedded Media Player | Yes, supports up to 64 channels view |
| Event | |
| Video Push | Support Video Push from ACTi Mobile Client devices |
| Event Trigger | [Local Server]: CPU limit exceeded, GPU Loading Detection for workstation only, Memory limit exceeded (Server PC, media server, schedule service). |
| [NVR]: | Source loss and recovery, Schedule service start and stop, Disk full, Disk not found, Disk is available. |
| [Video Device]: | Video motion detection, Passive IR sensor, External device through digital input, Intelligent event detection, Video loss and recovery, Network loss and recovery. |
| [Extended Device]: | Point-of-sale (POS) status, Network I/O status, Access Control status |
| Event Response | Play alert sound, Execute system command to activate other programs, E-mail notification with snapshots, Pop-up window with live video, Switch to hotspot window, Switch to customize view, Play alert sound, Send video to TV Wall server, Send Snapshot to Line Messenger |
| System | |
| Permission control | Unlimited number of users, Active Directory, Customizable permissions for user groups, Playback password protected, Password validity period, Password Expiration Notification |
| Watchdog | Support |
| Client PC Operating System | Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Server Operating System | Windows 10 IoT |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iPad, Android device |
| USB | 4-Port USB 2.0, 4-Port USB 3.0 |
| Language | Multi-Language |
| Integration | |
| Supported NVR Servers | NVR3 based NVR: GNR series, INR series, MNR-3x0 |
| ENR-series: | ENR-010P, ENR-020P, ENR-130, ENR-190, ENR-2xx, ENR-3xx, ENR-4xx, MNR-1xx |
| Unified Solution | Fully compatible with ACTi cameras, encoders, central management system and TV wall |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S (contains the officially ONVIF conformant software CMS 2) |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.), Lite web client: Microsoft Edge 80.0.361.66 (Normal mode) or newer, Google Chrome 71.0.3578 or newer, Firefox 64.0.2 or newer, Apple Safari 12.0.2 or newer |
| Third-party Integration | Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS), (Various optional integrations requiring additional license) |
| Storage | |
| System Drive | SSD, 256GB |
| Storage Bay | SATA, Max. 1 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Interface | |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| External Storage Interface | USB |
| Expansion Slots Available | 3 x PCIe 3.0 (x1) |
| 2 x PCIe 3.0 (x16) | |
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, DVI x 1, Display Port x 1 |
| General | |
| Power Source | AC 100-240V |
| Power Supply | 315W |
| Weight | 3670g (8.09lb) |
| Dimensions | (W x H x D): 393.2mm x 43.5mm x 430mm (15.48" x 1.71" x 16.93") |
| Rack Space: | 1U |
| Bundled Accessories | Power cord |
| Fan | Yes |
| Remote Access | Workstation, Web Client, Mobile Client |
| Approvals | CE Class B, FCC Class B, Taiwan IoT Cybersecurity Certification Level 1 (TAICS) |
| Color | Silver |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | ** The actual maximum number of channels may vary depending on the server/client PC performance and network throughput. |
