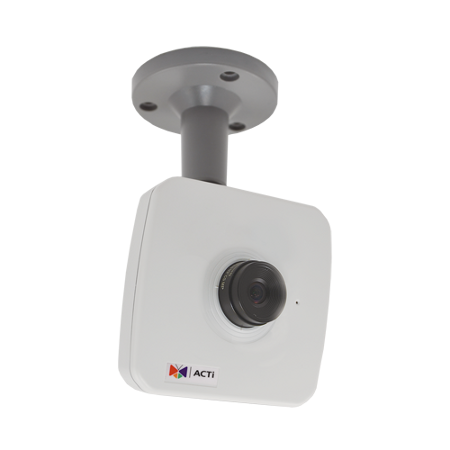

ACTI - E17 - 3MP Cube with Extreme WDR, SLLS, Fixed lens, f2.8mm/F1.8 (HOV:100.5°), H.265/H.264, 1080p/30fps, 2D+3D DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE
Part number:
E17
Price:
3MP Cube with Extreme WDR, SLLS, Fixed lens, f2.8mm/F1.8 (HOV:100.5°), H.265/H.264, 1080p/30fps, 2D+3D DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE.
Features:
- 3 Megapixel
- Fixed Lens with f2.8mm/F1.8
- Extreme WDR
- H.265 Compression
- Super wide angle
- Event trigger, response and notification
| Device | |
| Product Type | Cube |
| Maximum Resolution | 3MP |
| Application Environment | Indoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 2065(H) X 1553(V) (3.21 MP) |
| Day / Night | No |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| Horizontal Resolution (TV Lines) | 1300 TVL |
| S/N Ratio | 75 dB |
| Lens |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | CS Mount (interchangeable lens) |
| Horizontal Viewing Angle | 100.5° |
| Vertical Viewing Angle | 76.4° |
| Video |
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 720 x 480 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (142 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| On-Screen Graphics (Picture Overlay) | Yes |
| Built-in Analytics | Tampering Detection |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Audio |
| Audio Type | 2-way, Built-in Microphone, Line-out |
| Audio Compression | 8 kHz, Mono, G.711 |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login |
| Event |
| Event Trigger | Video motion detection (3 regions), Sound detection, Tampering detection, Video streams loss |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server |
| System |
| Watchdog | Support |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol)* |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile Q |
| Web Browser | IE 11 |
| Auto Firmware Upgrade | Yes |
| Interface |
| Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 128GB, Kingston or Sandisk only) |
| Operating Button | Reset Button |
| General |
| Power Source | PoE Class 2 (IEEE802.3af) |
| Power Consumption | 6.49 W (PoE) |
| Weight | 241g (0.53lb) |
| Dimensions | (W x H x D): 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8") |
| Bundled Accessories | Bracket |
| Mount Type | Bracket |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Approvals | CE Class B, FCC Class B, EAC, UL (for optional PoE injector) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
