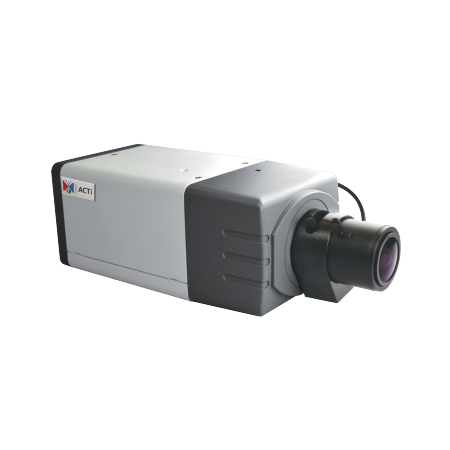

ACTI - E21VA - 1MP with D/N, Basic WDR, Vari-focal Lens
Part number:
E21VA
Price:
1MP Box with D/N, Basic WDR, Vari-focal lens, f2.8-12mm/F1.4 (HOV:62°-24.8°), DC iris, H.264, 720p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, DI/DO
Features:
- 1 Megapixel
- Day & Night
- Vari-focal Lens with f2.8-12mm/F1.4, DC iris
- Basic WDR
- Event trigger, response and notification
| Device | |
| Product Type | Box |
| Maximum Resolution | 1MP |
| Application Environment | Indoor/Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/4 " |
| Effective Pixels | 1280(H) X 800(V) (1.02 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE , 2400 K); B/W: 0.05 lux at F1.4 (30 IRE, 2400 K) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | No |
| Electronic Shutter | 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 700 TVL |
| S/N Ratio | 52 dB |
| Lens |
| Focal Length | Vari-focal, f2.8-12mm |
| Aperture | F1.4 |
| Iris | DC iris |
| Focus | Manual focus |
| Lens Mount | CS Mount (interchangeable lens) |
| Horizontal Viewing Angle | 62° - 24.8° |
| Vertical Viewing Angle | 36.7° - 14° |
| Video |
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28Kbps - 6Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Basic WDR (74 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless |
| Digital Noise Reduction | DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| On-Screen Graphics | Yes |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
| Audio |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
| Event |
| Event Trigger | Video motion detection (3 regions), External device through digital input, Sound detection, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile Q |
| GB28181 Compliant | Yes |
| Web Browser | IE 11 |
| Auto Firmware Upgrade | Yes |
| Interface |
| Auto Iris Connector | External connector for DC iris lens |
| Local Storage | MicroSDHC, MicroSDXC memory card slot (card not included) |
| Digital Input/Output | 1/1 |
| General |
| Power Source | PoE Class 2 (IEEE802.3af) |
| Power Consumption | 3.36 W (PoE) |
| Weight | 453g (0.999lb) |
| Dimensions | (W x H x D): 67mm x 65mm x 170mm (2.6" x 2.6" x 6.7") |
| Environmental Casing | Optional housing (IP66) |
| Mount Type | Bracket, Pole Mount, Corner Mount |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH |
| Approvals | CE, FCC, UL (for optional PoE injector) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
