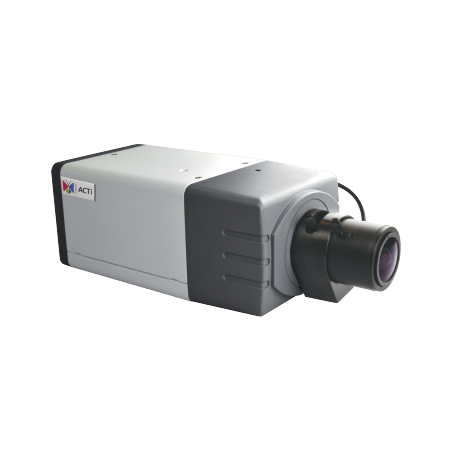

ACTI - E24A - 3MP with D/N, Superior WDR, Vari-focal Lens
Part number:
E24A
Price:
3MP Box with D/N, Superior WDR, Vari-focal lens, f2.8-12mm/F1.4 (HOV:78.1°-26.8°), DC iris, H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, DI/DO
Features:
- 3 Megapixel
- Day & Night
- Vari-focal Lens with f2.8-12mm/F1.4, DC iris
- Superior WDR
- Event trigger, response and notification
| Device | |
| Product Type | Hemispheric Dome |
| Maximum Resolution | 12MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.7 " |
| Effective Pixels | 4072(H) X 3046(V) (12.4 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.1 lux at F2.8 (30 IRE, 2400 K); B/W: 0 lux at F2.8 (IR LED on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED x 18 (850 nm) |
| IR Working Distance | 20m |
| Electronic Shutter | 1/5-1/16000 second (manual mode); 1/5-1/16000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 2250 TVL |
| S/N Ratio | 56 dB |
Name
Description
Size
Downloads
File
Data Sheet
0.9mb
File
Manual
2mb
File
Quick Guide
0.9mb
File
Diagram
0.1mb
