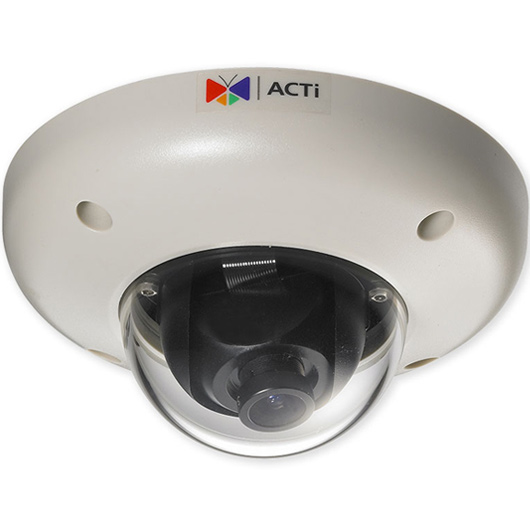

ACTi - E55 - 1MP Indoor Vandal-Resistant Dome IP Camera with 2.8mm Fixed Lens, WDR and PoE

Product Overview

The ACTi E55 is a compact indoor dome IP camera designed for discreet HD 720p surveillance. It uses a progressive scan CMOS sensor, a fixed 2.8mm lens, dual-stream video transmission, and PoE power support for efficient indoor security installations.

Key Configuration

Indoor dome IP camera; 1MP resolution at 1280 x 720; progressive scan CMOS image sensor; fixed 2.8mm F2.0 lens with 93 degree viewing angle; dual-stream video up to 30 fps; H.264 High Profile and MJPEG compression; PoE power support.

Key Features

• HD 720p video resolution supports clear indoor monitoring
• Fixed 2.8mm F2.0 lens provides wide 93 degree scene coverage
• Progressive scan CMOS sensor supports stable image capture
• Dual-stream video transmission supports flexible viewing and recording workflows
• H.264 High Profile and MJPEG compression help balance image quality, bandwidth, and storage use

Technical Context

The camera operates at illumination levels from 0.1 lux and uses a fixed IR filter with a progressive scan CMOS sensor. Adjustable camera positioning supports pan adjustment of +/-20 degrees, tilt from 0 to 90 degrees, and rotation of +/-90 degrees for aligning the monitored area during setup.

Installation Notes

The compact vandal-resistant dome housing is intended for indoor installation. The built-in lens design and PoE support simplify mounting and network cabling in ceiling or surface-mounted surveillance applications.
