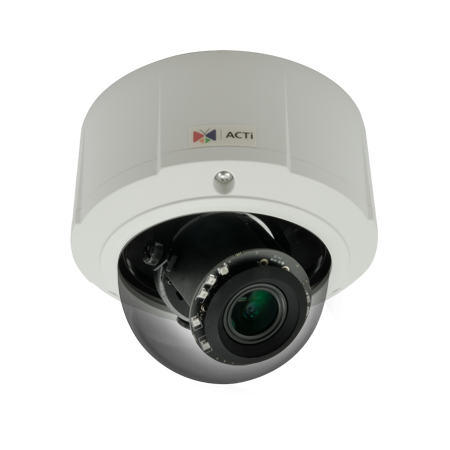

ACTI - E816 - 10MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 4.3x Zoom lens, f3.1-13.3mm/F1.4-4.0 (HOV:90.6°-34.3°), P-Iris, Auto Focus (for installation), H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP67, IK10, DI/DO
ACTI - E816 - 10MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 4.3x Zoom lens, f3.1-13.3mm/F1.4-4.0 (HOV:90.6°-34.3°), P-Iris, Auto Focus (for installation), H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP67, IK10, DI/DO
Part number:
E816
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

10MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 4.3x Zoom lens, f3.1-13.3mm/F1.4-4.0 (HOV:90.6°-34.3°), P-Iris, Auto Focus (for installation), H.264, 1080p/30fps, 2D+3D DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP67, IK10, DI/DO.



Features:

  • 10 Megapixel
  • Day & Night with Adaptive IR LED
  • 4.3x Zoom Lens with f3.1-13.3mm/F1.4-F4.0, P-Iris, Auto focus (for installation)
  • Basic WDR
  • Wide Angle
  • Event trigger, response and notification
Device
Product TypeZoom Dome
Maximum Resolution10MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/2.3 "
Effective Pixels3856(H) X 2764(V) (10.66 MP)
Day / NightYes
Low Light SensitivityStandard
Minimum IlluminationColor: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux at F1.4 (IR LED on)
Color to B/W SwitchISP based switch, configurable
Mechanical IR Cut FilterYes
IR Sensitivity Range700-1100nm
IR LEDAdaptive IR LED x 10 (850 nm)
IR Working Distance30m
Electronic Shutter1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
Horizontal Resolution (TV Lines)1450 TVL
S/N Ratio75 dB
Lens
Focal LengthZoom, f3.1-13.3mm
ApertureF1.4-F4.0
Zoom Ratio4.3x optical zoom
Zoom Speed3 second (wide to tele)
Zoom ApplicationCamera Installation
IrisP-Iris
FocusAuto focus
Lens MountBoard mount
Horizontal Viewing Angle90.6° - 34.3°
Vertical Viewing Angle68.7° - 26.4°
Viewing Angle AdjustmentPan: 0°-350°, Tilt: 5°-175°, Rotation: 0°-350°
PTZ
Absolute PositionYes
Pan, Tilt or Zoom protocolVisca, Pelco-D, Pelco-P, ACTi URL command
Video
CompressionH.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution7 fps at 3648 x 2736
7 fps at 3648 x 2160
7 fps at 2592 x 1944
7 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Multi-StreamingSimultaneous dual streams based on two configurations
Bit Rate28Kbps - 6Mbps (per stream)
Bit Rate ModeConstant, Variable
Wide Dynamic RangeBasic WDR (70 dB)
Image EnhancementWhite Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
Digital Noise Reduction2D + 3D DNR
Privacy Mask4 configurable regions
On-Screen Graphics (Picture Overlay)Yes
Server-based AnalyticsObject Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image OrientationFlip, Mirror
Audio
Audio Type2-way, Line-in, Line-out
Audio Compression8 kHz, 16 bit encoding, Mono, PCM, G.711
Network
Network Protocol & ServiceIPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port1 x RJ-45 connector
SecurityIP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control, Standard IoT Security (anti-hacking, anti-malware)
Event
Event TriggerVideo motion detection (3 regions), External device through digital input, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account)
Event ResponseNotify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output
System
System MonitorCPU loading, memory usage and network statistics via API
System LogSupport
WatchdogSupport
Integration
Unified SolutionFully compatible with ACTi software
Software Development KitYes
GPS PositionManual setting
Edge RecordingSupport (integration with NVR by ONVIF Profile G or proprietary protocol)*
ONVIF CompliantYes, Profile S, Profile G, Profile T, Profile Q
GB28181 CompliantYes
Auto Firmware UpgradeYes
Interface
Audio InterfaceTerminal block
Local StorageMicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output2/2
Operating ButtonReset Button
General
Power SourcePoE Class 3 (IEEE802.3af)
Power Consumption7.28 W (PoE)
Weight1404g (3.095lb)
Dimensions(Ø x H): 152.8mm x 131mm (6" x 5.2")
Environmental CasingWeatherproof (IP67), Vandal proof (IK10)
Corrosion ProtectionOptional for project request. Chassis corrosion resistance at the seashore approximately 10 years.
Mount TypeSurface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
HeaterYes
Starting Temperature-20°C ~ 50°C (-4°F ~ 122°F) within 30 minutes
Operating Temperature-30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity10% - 85% RH
ApprovalsCE Class B, FCC Class B, EAC, IP67, IK10, NEMA 4X, UL (for optional PoE injector)
Real-time Clock (RTC)Yes
Warranty3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments* Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
