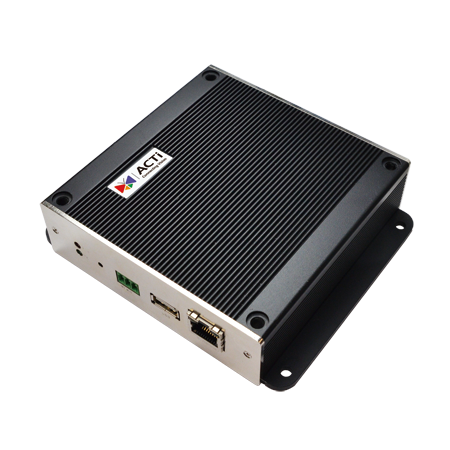

ACTi - ECD-1100 - 16-Channel Megapixel H.264 Video Decoder with Digital Signage, RJ-45 Video Input, HDMI Output, USB 2.0, PoE/DC12V
Part number:
ECD-1100
Price:
16-Channel Megapixel H.264 Video Decoder with Digital Signage, RJ-45 Video Input, HDMI Output, USB 2.0, PoE/DC12V.
Features:
- Maximum Number of Video Devices: 16
- Web Client
- Event trigger, response and notification
| Device | |
| Product Type | Video Decoder |
| Maximum Resolution | Local: up to 2MP; Remote: up to12MP |
| Product Application | Video Decoding, Public Viewer |
| Maximum Number of Cameras | 16 |
| Maximum Number of Video Devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| Supported Screen Resolution | HDMI: 1080p |
| License |
| License required | No |
| Free License | 16 |
| Live View |
| Digital Zoom | Yes |
| Event Status | Network loss, Motion, DI |
| PTZ |
| PTZ Control | PTZ Control, Speed Control, 32 preset points, 32 preset tours |
| Pan, Tilt or Zoom protocol | ACTi URL command |
| Video |
| Video Source | Live video streams from IP Camera, Software NVR (NVR 3), Standalone NVR (GNR, INR series) |
| Compression | H.264 |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080 30 fps at 720 x 480 25 fps at 720 x 576 30 fps at 640 x 480 |
| Audio |
| Audio Type | 1-way |
| Network |
| Network Protocol & Service | TCP, UDP, IP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP |
| Ethernet Port | 1 x RJ-45 connector |
| Security | Password protected user level |
| Event |
| Event Trigger | Video loss, Network loss |
| Event Response | Play alert sound |
| System |
| Permission control | Multi-group/users, Liveview/setup/remote level permission |
| Client PC Operating System | Windows 8.1, Windows 7 SP1 |
| Server Operating System | Embedded Linux |
| USB | 1-Port USB 2.0 |
| Language | Multi-Language |
| System Status Monitor | Real time status reports on remote browser |
| Integration |
| Unified Solution | Fully compatible with ACTi cameras and encoders |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| Interface |
| HDMI Output | 1, HDMI Type A |
| Analog Video Output | 1 x BNC connector (optional) |
| External Storage Interface | USB |
| Local Access | HDMI monitor, USB keyboard & mouse |
| Local Display Interface | HDMI x 1, BNC x 1 (alternative selection) |
| General |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.5 W (PoE), 7 W (DC) |
| Weight | 566g (1.25lb) |
| Dimensions | (W x H x D): 135mm x 114mm x 33mm (5.3" x 4.5" x 1.3") |
| Bundled Accessories | Power Adapter, Pole Mount |
| Mount Type | Surface, Pole, VESA mount 10x10 |
| Starting Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH |
| Remote Access | Web Client |
| Approvals | CE, FCC, UL (for bundled power adapter) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
