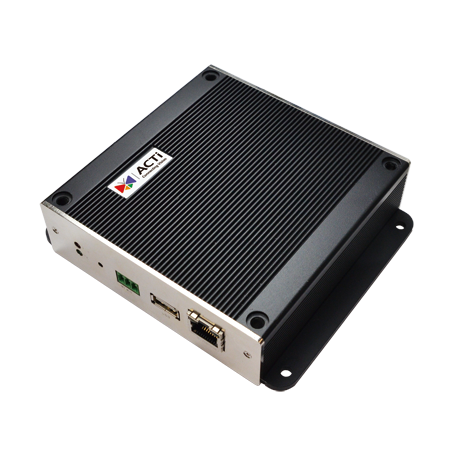

The ECD-1100 from ACTi is a powerful 16-channel megapixel H.264 video decoder designed for seamless video streaming and digital signage solutions. With versatile connectivity options including RJ-45 video input and HDMI output, this decoder is perfect for professional applications, ensuring high-quality video output, easy integration, and reliable performance.
• Channel Support: 16 channels allow for the simultaneous decoding of multiple video streams, enhancing monitoring efficiency and capabilities for larger setups.
• Decoding Format: H.264 support ensures high-quality video compression, providing clear visuals while minimizing bandwidth usage.
• Digital Signage Integration: Ideal for advertising and information dissemination, allowing businesses to display content seamlessly on large screens.
• RJ-45 Video Input: Enables network connectivity for easy access and management of video streams, simplifying system setup.
• HDMI Output: Directly connects to TVs and monitors, delivering high-definition video output compatible with modern display technologies.
• USB 2.0 Port: Facilitates easy connection with external devices and peripherals, increasing flexibility for various applications.
• Power Options: Supports PoE and DC 12V for versatile installation possibilities, ensuring operational reliability in diverse environments.
| Product Profile | |
|---|---|
| Product Type | Video Decoder |
| Product Application | Video Decoding, Public Viewer |
| Maximum Resolution | Local: up to 2MP; Remote: up to 12MP |
| Maximum Number of Cameras | 16 |
| Maximum Number of Video Devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| Supported Screen Resolution | HDMI: 1080p |
| License | |
| License required | No |
| Free License | 16 |
| Live View | |
| Digital Zoom | Yes |
| Event Status | Network loss, Motion, DI |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control, 32 preset points, 32 preset tours |
| Video | |
| Compression | H.264 |
| Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080, 30 fps at 720 x 480, 25 fps at 720 x 576, 30 fps at 640 x 480 |
| Audio | |
| Audio Type | 1-way |
| Network | |
| Network Protocol & Service | TCP, UDP, IP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP |
| Ethernet Port | 1 x RJ-45 connector |
| Security | Password protected user level |
| Event | |
| Event Trigger | Video loss, Network loss |
| Event Response | Play alert sound |
| System | |
| Permission control | Multi-group/users, Liveview/setup/remote level permission |
| Client PC Operating System | Windows 8.1, Windows 7 SP1 |
| Server Operating System | Embedded Linux |
| USB | 1-Port USB 2.0 |
| Language | Multi-Language |
| System Status Monitor | Real time status reports on remote browser |
| Integration | |
| Unified Solution | Fully compatible with ACTi cameras and encoders |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 |
| Interface | |
| HDMI Output | 1, HDMI Type A |
| External Storage Interface | USB |
| Local Access | HDMI monitor, USB keyboard & mouse |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.5 W (PoE), 7 W (DC) |
| Weight | 566g (1.25lb) |
| Dimensions (W x H x D) | 135mm x 114mm x 33mm (5.3" x 4.5" x 1.3") |
| Bundled Accessories | Power Adapter, Pole Mount |
| Mount Type | Surface, Pole, VESA mount 10x10 |
| Starting Temperature | -30°C ~ 70°C (-29°F ~ 158°F) in non-isothermal air flows |
| Operating Temperature | -34°C ~ 70°C (-29°F ~ 158°F) in non-isothermal air flows |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Remote Access | Web Client |
| Approvals | CE, FCC, UL (for bundled power adapter) |
| Warranty | 3 Year(s) |
