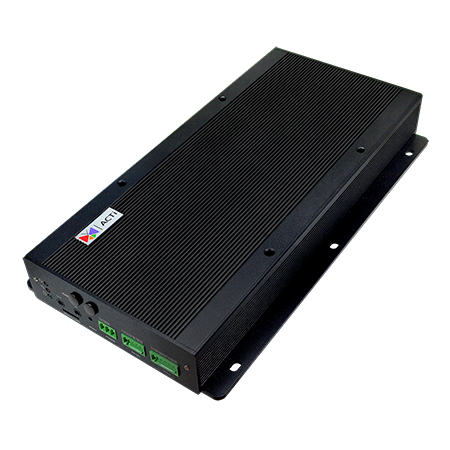

ACTi - ECD-200 - 16-Channel Megapixel H.265 Video Decoder with RJ-45 Video Input
Part number:
ECD-200
Price:
16-Channel Megapixel H.265 Video Decoder with RJ-45 Video Input, HDMI Video Output, Wireless (Optional), Audio, DI/DO, MicroSDHC/MicroSDXC card slot, USB 3.0, DC12V.
Features:
- 1-bay Video Decoder
- Maximum Number of Video Devices: 16
- Web Client
- Event trigger, response and notification
| Device | |
| Product Type | Video Decoder |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Product Application | Video Decoding, Public Viewer |
| Maximum Number of Video Devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| Supported Screen Resolution | HDMI: 1080p, 4K2K VGA: 1080p |
| Hardware |
| CPU | Hi3536 |
| RAM | 4GB |
| License |
| License required | No |
| Free License | 16 |
| Live View |
| Display Layout Mode | Custom dynamic layouts by grid merging |
| Digital Zoom | Yes |
| Event Status | Network loss, Motion, DI |
| Map |
| e-Map | Yes* |
| Google Map | Yes* |
| PTZ |
| PTZ Control | PTZ Control |
| Video |
| Compression | H.265, H.264 |
| Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160 30 fps at 1920 x 1080 30 fps at 720 x 480 25 fps at 720 x 576 30 fps at 640 x 480 |
| Audio |
| Audio Type | 2-way, Line-in, Line-out |
| Network |
| Network Protocol & Service | TCP, UDP, IP, HTTP, HTTPS, DHCP, RTP, RTSP |
| Ethernet Port | Non-PoE: 1 port(s), Ethernet (1000 Base-T), RJ-45 connector |
| Event |
| Event Trigger | [Video Device]: Video motion detection, External device through digital input, Sound detection, Video loss, Video Recovery, Network loss and recovery, Intelligent event detection (ACTi IVS Cameras). |
| Event Response | Show event on local display, Play sound on HDMI display |
| System |
| Client PC Operating System | Windows 10, Windows 8.1, Windows 7 SP1, Windows Server 2012 R2, Windows Server 2008 R2 SP1 |
| Server Operating System | Embedded Linux |
| USB | 2-Port USB 3.0 |
| Language | Multi-Language |
| Integration |
| Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| Storage |
| Storage Bay | SATA, Max. 1 Disk(s) (without storage disks, and the function will be available upon request) |
| HDD Size | 2.5" |
| Interface |
| HDMI Output | 1, HDMI Type A |
| Serial Port | 1 x RS-232 |
| Wireless | mini-PCIe slot x 1 for optional Wireless modules such as Wi-Fi (IEEE 802.11b/g/n) |
| Local Storage | MicroSDHC, MicroSDXC memory card slot (card not included) |
| Digital Input/Output | 2/2 (Terminal block) |
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, VGA x 1, |
| General |
| Power Source | DC 12V |
| Power Consumption | 9.6 W (DC) |
| Weight | 1086g (2.394lb) |
| Dimensions | (W x H x D): 135mm x 32.5mm x 245mm (5.3" x 1.3" x 9.6") |
| Bundled Accessories | Pole Mount, Power Adapter |
| Mount Type | Surface, Pole, VESA mount 10x10 |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% - 85% RH |
| Remote Access | Web Client |
| Approvals | CE, FCC, UL (for bundled power adapter) |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * available with the future firmware release in Q1 2018 |
