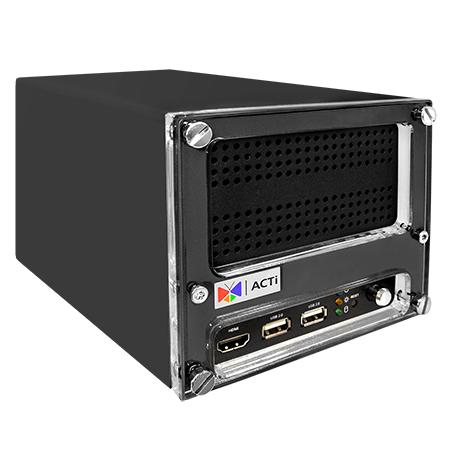

Acti - ENR-222 - 16-Channel Desktop Standalone NVR
Part number:
ENR-222
Price:
16-Channel 2-Bay Desktop Standalone NVR with Recording Throughput 300 Mbps, HDMI Port, Remote Access, Video Export via USB, 16-Channel Synchronized Playback, 16-channel free license included, Supports External Storage (iSCSI), Plug & Play with Built-in DHCP Server, 2-Bay (Storage Disks not included), , Audio, DI/DO, DC 48V.
Features:
- 2-bay Desktop Standalone NVR
- RAID 0, 1, 5 (external storage enclosure required)
- Maximum Number of Video Devices: 16
- Free License: 16
- Event trigger, response and notification
- Web Client, Mobile Client
- Video export formats: RAW, AVI
Device
| Product Type | Standalone NVR |
| Maximum Resolution | Local: up to 12MP; Remote: up to12MP |
| Maximum Number of Video Devices | 16 |
| Maximum Number of POS devices | 16 |
| Maximum Number of Access Control and Network I/O devices | 16 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| Supported Screen Resolution | HDMI: 1080p, 4K2K (Output 4k2k to TV monitor will be supported through future firmware upgrade.) |
| Key Features | ● Event response for trigger a specific PTZ device to go to a preset point and enlarge the channel video when receiving the event triggered by camera ● Customized on-screen display (OSD) with camera name and date in Traditional Chinese. The OSD should be reserved in video snapshots and exported video files (.avi) ● View patrol function to switch automatically between different views or devices ● Schedule Recording with user-defined schedule, and time segment is configurable from one hour increment up to 24 hours / 7 days ● Speed-up recording to keep recording all the way without losing any single moment; I-frame only for non-event recording and full frame rate for event recording. ● Event recording includes pre-event and post-event buffers ● Event management supports trigger types (video motion detection, digital input, network status and intelligent events) and response types (focus channel in live view, digital output, audio alert, Email notification, trigger other camera actions, execute URL commands) ● Accept any preset camera models (at least 2 models) can support intelligent events (line crossing, enter area, missing object, unattended object and tampering detections) through intelligent servers ● Push Notification message to mobile device via Cloud service ● Auto firmware upgrade through cloud download center and Manual Firmware upgrade through USB mass storage or remote web client. ● Backup/Restore data and settings via USB ● Backup/Restore data and settings via USB ● Support H.265/H.264 compression, HDMI output and 1.4GHz quad-core processor |
Hardware
| CPU | Hi3536 (Quad-core, 1.4GHz) |
| RAM | 4GB |
License
| License required | No |
| Free License | 16 |
Live View
| Display Layout Mode | Custom dynamic layouts by grid merging, 1, 2, 4, 6, 8, 9, 10, 12, 13, 16, 1+5, 1+7, 1+12, 2+4, 2+8, Custom |
| Fisheye Dewarping | Yes |
| Local Live View performance | Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window |
Map
| e-Map | Yes* |
| Google Map | Yes* |
PTZ
| PTZ Control | PTZ Control, Speed Control, 32 preset points |
| Pan, Tilt or Zoom protocol | ACTi URL command |
video
| Compression | H.265, H.264, MJPEG |
| Text Overlay | Yes |
Audio
| Audio Type | 2-way, Line-in, Line-out |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP (Server/Client), PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, , SNMP |
| Ethernet Port | Total ports: 2 port(s) Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector |
Recording
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Event Speed-up Recording | Yes |
| Dual Stream Management | Yes |
| Maximum Recording Frame Rate | Maximum total 480fps; Maximum 30fps per camera |
| Maximum Recording Throughput | 300 Mbps |
Search & Playback
| Playback Control | Continuous forward and backward playback with speeds 0.125x/0.25x/0.5x/1x/2x/4x/8x/16x, pause, stop |
| Synchronized Playback | 16 channels |
| Recording Search | Search video recordings by time, events, channels and bookmarks* |
| Video Export | RAW, AVI |
Event
| Event Trigger | [NVR]: Disk full, System booted successfully, Expiration of user accounts, Expiration of specific event schedule, Event action failed, S.M.A.R.T test failed, External device through digital input [Video Device]: Video motion detection, External device through digital input, Sound detection, Video loss, Video Recovery, Network loss and recovery, Intelligent event detection (ACTi IVS Cameras, including Line Crossing Detection, Enter Area Detection, Missing Object Detection, Unattended Object Detection or Tampering Detection). [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status |
| Event Response | Play alert sound, Activate external device through digital output, E-mail notification with snapshots, Go to PTZ preset point or preset tour, Command other devices, Push notification, Pop-up window with live video |
System
| Permission control | Unlimited number of users, Active Directory*, Customizable permissions for user groups*, Account lockout*, Automatic logout after idle* |
| Client PC Operating System | Windows 10, Windows 8.1, Windows 7 SP1 |
| Server Operating System | Embedded Linux |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iOS, Android device |
| USB | 2-Port USB 2.0, 1-Port USB 3.0 |
| Language | Multi-Language, Traditional Chinese, Simplified Chinese, English |
Integration
| Unified Solution | Fully compatible with ACTi Cameras, Video Encoders, Central Management System*, TV Wall Server*, Intelligent video surveillance software |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| Auto Firmware Upgrade | Yes |
| Third-party Integration | Point of Sale (POS), Parking Management Station (PMS), Entry and Exit Management, Network I/O |
Storage
| Storage Bay | SATA, Max. 2 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 14TB x2 |
| RAID Level | RAID 0, 1, 5 (external storage enclosure required) |
| Supported Storage | Video Recording: SATA disk, iSCSI Export*: USB, iSCSI Samba NFS |
Interface
| Digital Input/Output | 2/2 |
| External Storage Interface | iSCSI |
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, |
General
| Power Source | DC 48V |
| Weight | 1579g (3.481lb) |
| Bundled Accessories | Power Adapter |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Remote operation | Web Client, Mobile Client |
| Approvals | CE, FCC, UL (for built-in power adapter) |
