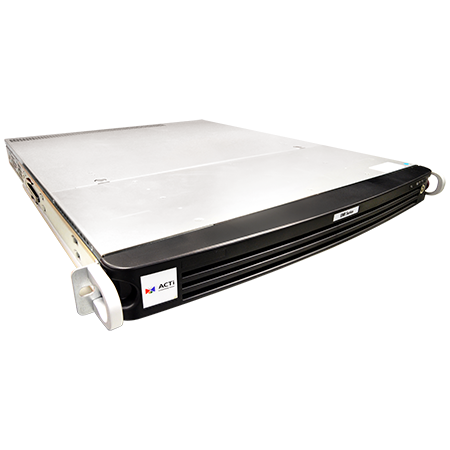

ACTI - ENR-421 - 32-Channel 4-Bay Rackmount Standalone NVR with Recording Throughput 300 Mbps
Part number:
ENR-421
Price:
32-Channel 4-Bay Rackmount Standalone NVR with Recording Throughput 300 Mbps, HDMI Port, Remote Access, Video Export via USB, 16-Channel Synchronized Playback, 32-channel free license included, Supports External Storage (iSCSI), Plug & Play with Built-in DHCP Server, 4-Bay (Storage Disks not included), Audio, DI/DO, AC 100-240V
Features:
- 4-bay 1U Rackmount Standalone NVR
- Maximum Number of Video Devices: 32
- Web Client, Mobile Client
- Event trigger, response and notification
- Video export formats: RAW, AVI
| Device | |
| Product Type | Standalone NVR |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Maximum Number of Video Devices | 32 |
| Maximum Number of POS devices | 32 |
| Maximum Number of Access Control and Network I/O devices | 32 |
| Maximum Number of Clients | Local: 1, Remote (Web client or Workstation): 2, Remote (Mobile Client): 1 |
| Supported Screen Resolution | HDMI: 1080p, 4K2K |
| Hardware | |
| CPU | Hi3536 |
| RAM | 4GB |
| License | |
| License required | No |
| Free License | 32 |
| Live View | |
| Display Layout Mode | Custom dynamic layouts by grid merging |
| local up to 16 video channels | |
| remote up to 32 video channels | |
| Fisheye Dewarping | Local: Yes*, Remote: Yes |
| Local Live View performance | Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
| Digital Zoom | Yes (available for remote web client) |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window |
| Map | |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control, 32 preset points |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Text Overlay | Yes |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP (Server/Client), HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, SNMP |
| Ethernet Port | Total ports: 2 port(s) |
| Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector | |
| Recording | |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Event Speed-up Recording | Yes |
| Dual Stream Management | Yes |
| Maximum Recording Throughput | 300 Mbps |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds 0.125x/0.25x/0.5x/1x/2x/4x/8x/16x, pause, stop |
| Synchronized Playback | 16 channels |
| Recording Search | Search video recordings by time, events, channels and bookmarks* |
| Video Export | RAW, AVI |
| Event | |
| Event Trigger | [NVR]: Disk full, Disk not found, System booted successfully, Expiration of user accounts, Expiration of specific event schedule, Event action failed, S.M.A.R.T test failed. |
| [Video Device]: | Video motion detection, External device through digital input, Sound detection, Video loss, Video Recovery, Network loss and recovery, Intelligent event detection (ACTi IVS Cameras). |
| [Extended Device]: | Point-of-sale (POS) status, Network I/O status, Access Control status |
| Event Response | Play alert sound, Activate external device through digital output, E-mail notification with snapshots, Go to PTZ preset point or preset tour, Command other devices, Push notification |
| System | |
| Permission control | Unlimited number of users, Active Directory*, Customizable permissions for user groups*, Account lockout*, Automatic logout after idle* |
| Client PC Operating System | Windows 10, Windows 8.1, Windows 7 SP1 |
| Server Operating System | Embedded Linux |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iOS, Android device |
| USB | 2-Port USB 2.0, 1-Port USB 3.0 |
| Language | Multi-Language |
| Integration | |
| Unified Solution | Fully compatible with ACTi Cameras, Video Encoders, Central Management System*, TV Wall Server*, Intelligent video surveillance software |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Apple Safari |
| Auto Firmware Upgrade | Yes |
| Third-party Integration | Point of Sale (POS), Parking Management Station (PMS), Access Control, Network I/O |
| Storage | |
| Storage Bay | SATA, Max. 4 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 14TB x4 |
| Supported Storage | Video Recording: SATA disk, iSCSI |
| Video Exporting: Remote PC (local drives, USB), iSCSI, Samba, NFS | |
| Interface | |
| Digital Input/Output | 2-Feb |
| External Storage Interface | iSCSI |
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, |
| General | |
| Power Source | AC 100-240V |
| Weight | 7011g (15.457lb) |
