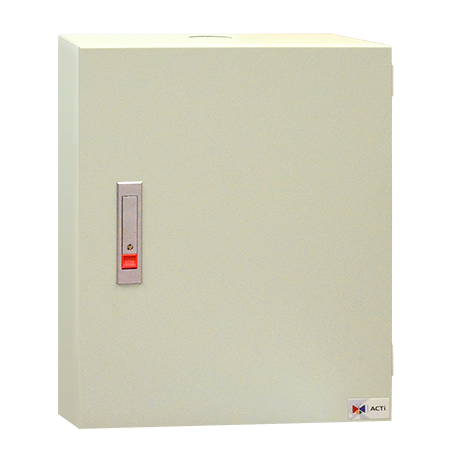

Acti - ENR-620P - 9-Channel Lockbox Standalone NVR with 8-port PoE Connectors
Part number:
ENR-620P
Price:
9-Channel 2-Bay Lockbox Standalone NVR with 8-port PoE connectors, Recording Throughput 300 Mbps, HDMI Port, Remote Access, Video Export via USB, 9-Channel Synchronized Playback, 9-channel free license included, Supports External Storage (iSCSI), Plug & Play with Built-in DHCP Server, 2-Bay (Storage Disks not included), Audio, DI/DO, DC 48V.
Features:
- 2-bay Lockbox Standalone NVR
- Maximum Number of Video Devices: 9
- Free License: 9
- Built-in PoE Connectors (8 ports)
- Event trigger, response and notification
- Web Client, Mobile Client
- Video export formats: RAW, AVI
Device
| Product Type | Standalone NVR |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Maximum Number of Video Devices | 9 |
| Maximum Number of POS devices | 9 |
| Maximum Number of Access Control and Network I/O devices | 9 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| Supported Screen Resolution | HDMI: 1080p, 4K2K (Output 4k2k to TV monitor will be supported through future firmware upgrade.) |
Hardware
| CPU | Hi3536 |
| RAM | 4GB |
License
| License required | No |
| Free License | 9 |
Live View
| Display Layout Mode | Custom dynamic layouts by grid merging |
| Fisheye Dewarping | Local: Yes*, Remote: Yes |
| Local Live View performance | Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window |
Map
| e-Map | Yes* |
| Google Map | Yes* |
PTZ
| PTZ Control | PTZ Control, Speed Control, 32 preset tours |
video
| Compression | H.265, H.264, MJPEG |
| Text Overlay | Yes |
Audio
| Audio Type | 2-way, Line-in, Line-out |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP (Server/Client), PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, , SNMP |
| Ethernet Port | Total ports: 10 port(s) Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector PoE: 8 port(s), Ethernet (10/100 Base-T), RJ-45 connector |
Recording
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Event Speed-up Recording | Yes |
| Dual Stream Management | Yes |
| Maximum Recording Throughput | 300 Mbps |
Search & Playback
| Playback Control | Continuous forward and backward playback with speeds 0.125x/0.25x/0.5x/1x/2x/4x/8x/16x, pause, stop |
| Synchronized Playback | 9 channels |
| Recording Search | Search video recordings by time, events, channels and bookmarks* |
| Video Export | RAW, AVI |
Event
| Event Trigger | [NVR]: Disk full, Disk not found, System booted successfully, Expiration of user accounts, Expiration of specific event schedule, Event action failed, S.M.A.R.T test failed. [Video Device]: Video motion detection, External device through digital input, Sound detection, Video loss, Video Recovery, Network loss and recovery, Intelligent event detection (ACTi IVS Cameras). [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status |
| Event Response | Play alert sound, Activate external device through digital output, E-mail notification with snapshots, Go to PTZ preset point or preset tour, Command other devices, Push notification |
System
| Permission control | Unlimited number of users, Active Directory*, Customizable permissions for user groups*, Account lockout*, Automatic logout after idle* |
| Client PC Operating System | Windows 7 SP1, Windows 8.1, Windows 10 |
| Server Operating System | Embedded Linux |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iOS, Android device |
| USB | 2-Port USB 2.0, 1-Port USB 3.0 |
| Language | Multi-Language |
Integration
| Unified Solution | Fully compatible with ACTi Cameras, Video Encoders, Central Management System*, TV Wall Server*, Intelligent video surveillance software |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.) |
| Auto Firmware Upgrade | Yes |
| Third-party Integration | Point of Sale (POS), Parking Management Station (PMS), Entry and Exit Management, Network I/O |
Storage
| Storage Bay | SATA, Max. 2 Disk(s) (Options to have empty bays, one 2TB or one 4TB storage disk included) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 14TB x2 |
| RAID Level | No |
| Supported Storage | Video Recording: iSCSI Export: USB, Samba, NFS |
Interface
| Digital Input/Output | 2/2 |
| External Storage Interface | iSCSI |
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, |
General
| PoE Output | Maximum 30 Watts per port |
| PoE Power Budget | Maximum 140 W |
| Power Source | DC 48V |
| Weight | 7214g (15.904lb) |
| Dimensions | (W x H x D): 360mm x 460mm x 185mm (14.17" x 18.11" x 7.28") |
| Bundled Accessories | Power Adapter |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% - 85% RH |
| Remote operation | Web Client, Mobile Client |
| Approvals | CE, UL (for built-in power adapter) |
