• 144 channels, 64 Free Licenses
• 8 Storage Bays
• Hardware RAID (Add-on Card) 0, 1, 5, 6, 10, 50, 60

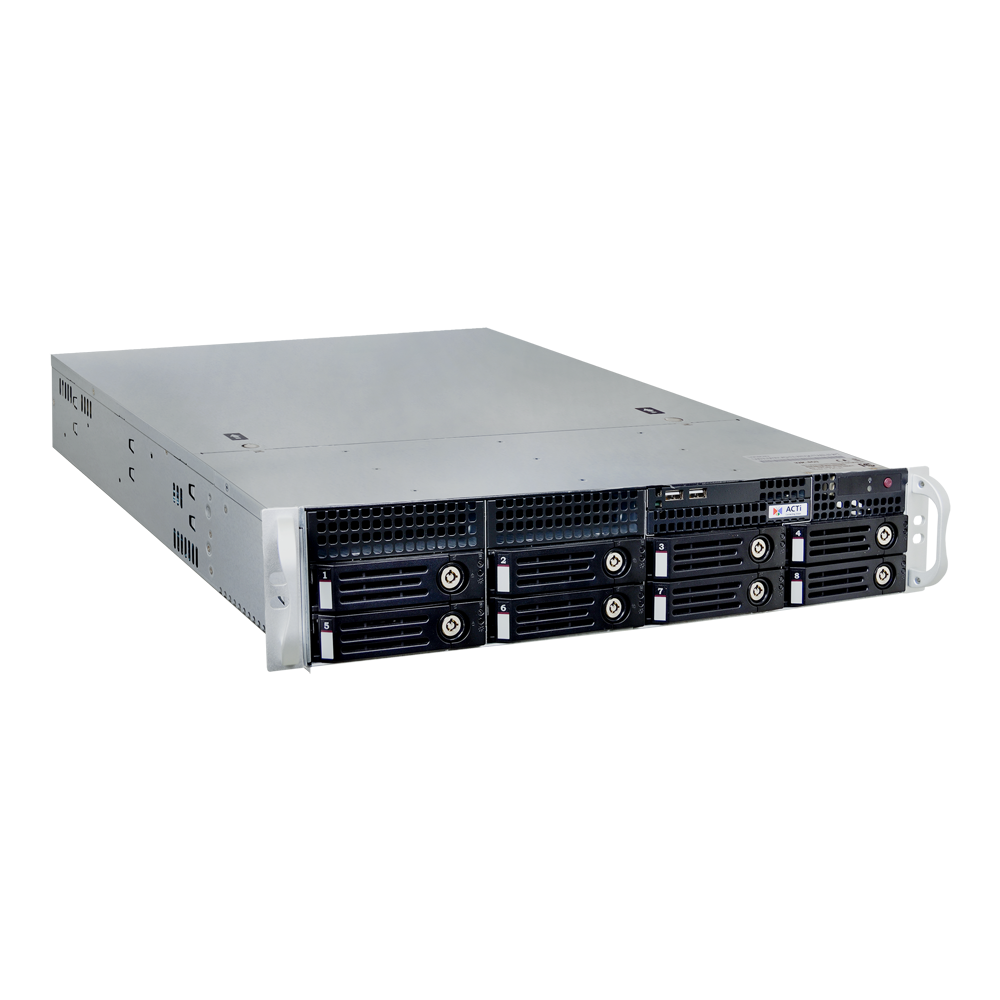

• Rack Space: 2U, Rackmount Standalone NVR
• Windows 11, NVR 3 Corporate
• Intel Core i7-8700, 16GB
• HDMI x 1, Display Port x 2
• Workstation, Web Client, Mobile Client
• Forensic Search, Event Search, Smart Search, Metadata Search
• Object Visual Tracking
• Multi-Browser Support
| Product Profile | |
|---|---|
| Product Type | Standalone NVR |
| Maximum Resolution | Support all ACTi cameras in all resolutions |
| Maximum Number of Video Devices | 144 |
| Maximum Number of POS devices | 144 (requires additional license) |
| Maximum Number of Access Control and Network I/O devices | 144 (requires additional license) |
| Maximum Number of Clients | Local: 1, Remote: 5 |
| NVR Edition | NVR 3 Corporate |
| Hardware | |
| System Architecture | x86-based (Intel platform) |
| CPU | Intel Core i7-8700 |
| RAM | 16GB, DDR4, 2400MT/s |
| License | |
| License required | Yes |
| Free License | 64 (64 channels for ACTi and 1 channel for third-party video device) |
| Live View | |
| Display Layout Mode | Local: 1, 3, 4, 5, 6, 8, 9, 10, 12, 16 Remote (IE client): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64 Remote (Lite web client): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16 Remote (Workstation): 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, 81, 100, 121 (11x11), 144 (12x12), 169 (13x13), 196 (14x14), 225 (15x15) ** |
| NVR 3 display grid cells | can be merged into different shape and size. |
| Fisheye Dewarping | Yes (Live View, Playback, Export) |
| Local Live View performance | Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance) |
| Digital Zoom | Yes, at least 64x digital zoom (Actual digital zoom ratio vary depending mainly on camera resolution, screen resolution and view layout.) |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full |
| Instant Playback | Instant Playback in live view window |
| Embedded websites in Live View | Display and connect to pre-configured embedded website |
| Map | |
| e-Map | Yes |
| Google Map | Yes |
| Layout | Area maps with camera icons, small live view windows, hyperlinked |
| Setup | e-Map image upload, Google maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for Point-of-sale (POS), Access Control, Network I/O |
| PTZ Mode | Mouse PTZ mode to control e-Map video streams |
| PTZ | |
| PTZ Control | PTZ Control, Speed Control, 32 preset points |
| Joystick | USB based joystick supported |
| Backup | |
| Automatic Recording Backup | Yes, Pre-scheduled recording backups using the Backup Server. |
| Video | |
| Video Source | ACTi cameras/encoders, ONVIF Cameras, Integrated 3rd-party cameras, Mobile Client, USB/Webcam |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), MPEG-4, MJPEG |
| Hardware Accelerated Decoding | Yes (for workstation PC only), H.264, H.265 |
| Built-in Analytics | Visual Tracking |
| Analytics | |
| Analytics from Camera | Receive analytics based events from the cameras and respond to the events: Face Detection; Smart Motion Detection (People Detection, Vehicle Detection); Smart Intrusion Protection (Intrusion Detection, Line Crossing Detection, Enter Area Detection, Exit Area Detection); People Counting (People Line Counting, People Area Counting, People Flow Counting, Crowd Detection); Object Metadata; Object Recognition; Temperature Detection (Fire Detection, Smoking Detection, Smoke Detection, Temperature Measurement); Traffic Monitoring |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP Client, HTTP, HTTPS, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, Bonjour, UPnP, LDAP (client), iSCSi |
| Ethernet Port | 2 x Ethernet (1000 Base-T), RJ-45 connector |
| Security | Support Trusted Platform Module 2.0 (TPM 2.0) |
| Recording | |
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Event Speed-up Recording | Yes |
| Dual Stream Management | Yes |
| Maximum Recording Throughput | 340 Mbps |
| Search & Playback | |
| Playback Control | Continuous forward and backward playback with speeds (1/64, 1/32, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256) or frame-by-frame, pause, stop |
| Synchronized Playback | 225 channels |
| Recording Search | Search video recordings by time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download |
| Event Search | Search within previously recorded AI events |
| Smart Search | Set ROI and look for the people and vehicles appearing in the ROI in the past recordings (requires cameras with Smart Motion Detection feature) |
| Forensic Search | Select target object (people, vehicle) and search for the similar object through all the channels |
| Metadata Search | Select attribute filters (color, gender, age, etc) and find thumbnails matching the criteria |
| Object Visual Tracking | View thumbnails generated by Forensic Search and playback by time sequence |
| Video Export | RAW, AVI, MP4, EXE, GPU Hardware accelerated video export supported with AVI format |
| Snapshot Export | BMP, JPEG, PNG |
| Embedded Media Player | Yes, supports up to 64 channels view |
| Event | |
| Video Push | Support Video Push from ACTi Mobile Client devices |
| Event Trigger | [NVR]: Disk full, Disk not found, Disk is available, S.M.A.R.T test failed, Schedule service start and stop, Video Push start and stop, Time Backward, CPU limit exceeded for Server PC, GPU Loading Detection for workstation only, Memory limit exceeded for Server PC and NVR services, Network Send/Receive Limit Exceeded for Server PC [Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss and recovery, Disk Write Failure and Available [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status |
| Event Response | Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification, Send Snapshot to Line Messenger |
| Redundancy Server | |
| Redundancy Service | Yes, N-to-N, N+1 (With limited functions when NVR 3 server acts as Redundancy server) |
| System | |
| Permission control | Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period, Password Expiration Notification |
| Watchdog | Support |
| Client PC Operating System | Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Server and Client PC requirements | Please use https://www.acti.com/pcselector For client PC requirements, please check the Performance: Live View section. |
| Server Operating System | Windows 11 |
| Mobile Client Program | Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Video Push, Event/time based search and playback, Supported device(s) iOS, Android device |
| USB | 6-Port USB 2.0, 4-Port USB 3.2 |
| Language | Multi-Language |
| Integration | |
| Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software |
| CMS Support | Yes (ACTi CMS 2) |
| GPS Position | Manual setting |
| Edge Recording | Automatically restore the lost videos from the memory card of camera to NVR server via ONVIF (Profile G) or proprietary protocol integrations after network connection recovery. |
| ONVIF Compliant | Yes, Profile S (officially listed as ONVIF conformant at www.onvif.org) |
| Web Browser | IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.), Lite web client: Microsoft Edge 80.0.361.66 (Normal mode) or newer, Google Chrome 71.0.3578 or newer, Firefox 64.0.2 or newer, Apple Safari 12.0.2 or newer |
| Third-party Integration | Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS), (Various optional integrations requiring additional license) |
| Storage | |
| Supported Storage Technology | NAS, SAN |
| System Drive | SSD, 256GB |
| Storage Bay | SATA, Max. 8 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 24TB x8 |
| RAID Level | Hardware RAID (Add-on Card) 0, 1, 5, 6, 10, 50, 60 |
| RAID Card | LSI-6Gb/s, SATA+SAS |
| Interface | |
| Serial Port | 1 x RS-232 |
| Expansion Slots Available | 1 x PCIe 3.0 (x1) 1 x PCIe 3.0 (x8) 1 x PCIe 3.0 (x16) |
| Local Access | USB joystick, keyboard & mouse |
| Local Display Interface | HDMI x 1, Display Port x 2 |
| General | |
| Power Source | AC 100-240V |
| Power Supply | 500W |
| Dimensions | (W x H x D): 482.6mm x 88mm x 560.2mm (19" x 3.47" x 22.06") Rack Space: 2U |
| Bundled Accessories | Rackmount rails, Power Adapter |
| Fan | Yes, 4 pcs |
| Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Humidity | 8% - 90% RH, non-condensing |
| Remote Access | Workstation, Web Client, Mobile Client |
| Approvals | CE Class A, FCC Class A, LVD |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | ** The actual maximum number of channels may vary depending on the server/client PC performance and network throughput. |
