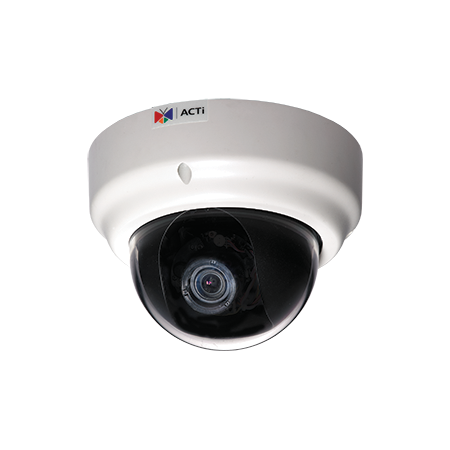

ACTi - KCM-3211 - 4 Megapixel Indoor IP Dome Camera, 3.3-12mm Lens
Product Overview
The ACTi KCM-3211 is a 4MP indoor IP dome camera designed for detailed surveillance and monitoring applications. It combines a progressive scan CMOS sensor, 3.6x optical zoom, P-Iris lens control, day/night operation, two-way audio, and local storage support.
Key Configuration
4 Megapixel indoor IP dome camera; 1/3.2" progressive scan CMOS image sensor; 3.3-12mm / F1.4 megapixel P-Iris lens with 3.6x optical zoom and 0.05 lux minimum illumination.
Key Features
• Day and night operation with mechanical IR cut filter
• Records up to 2032 x 1920 resolution at 8 fps
• Supports H.264, MPEG-4 SP, and MJPEG compression with dual streaming
• Provides up to 4 cropped regions for independent channel viewing
• Includes two-way audio, digital input/output, motion detection, and MicroSD/MicroSDHC local storage
Technical Context
The P-Iris zoom lens helps optimize image clarity and depth of field, while the 4MP sensor provides high-detail capture for indoor surveillance scenes. Multiple compression formats and dual streaming allow the camera to balance image quality, bandwidth use, and recording requirements.
Installation Notes
The camera supports PoE Class 3 or DC 12V power, giving installers flexibility in network-based or separate-power deployments. The MicroSD/MicroSDHC card slot can be used for local recording redundancy.
| Product Profile | |
| Product Type | Zoom Dome |
| Application Environment | Indoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3.2 " |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE , 2400 K); B/W: 0.05 lux at F1.4 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| Color to B/W Switch | ISP based switch, configurable |
| Electronic Shutter | 1/15-1/2000 second (manual mode); 1-1/2000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1373 TVL |
| Lens | |
| Focal Length | Zoom, f3.3-12mm |
| Aperture | F1.4-F2.9 |
| Zoom Ratio | 3.6x optical zoom |
| Zoom Speed | 2 second (wide to tele) |
| Zoom Application | Camera Installation, Auto Zoom by Event, Manual Operation |
| Iris | P-Iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 77.2° - 22.6° |
| Viewing Angle Adjustment | Pan: 0°-350°, Tilt: 0°-180°, Rotation: 0°-350° |
| PTZ | |
| Pan, Tilt or Zoom protocol | Visca |
| Video | |
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 8 fps at 2032 x 1920 15 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 640 x 480 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations in single mode Multiple streams based on a single configuration in 4 cropped VGA mode |
| Digital Noise Reduction | DNR |
| Wide Dynamic Range | Basic WDR |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Contrast, Automatic gain control (AGC), Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Object Based Motion Detection, Tamper, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Heat Map, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
| Network | |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to storage, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 8.0 or newer |
| Interface | |
| Audio Interface | Terminal block |
| Digital Input/Output | 2/2 (Terminal block) |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12 W (PoE), 9.6 W (DC) |
| Weight | 615g (1.36lb) |
| Dimensions | (Ø x H): 146.00mm x 105.10mm (5.7" x 4.1") |
| Mount Type | Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, Adapter: UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
