ACTi - KCM-5111 - 4MP Fixed Box with Basic WDR
Product Overview

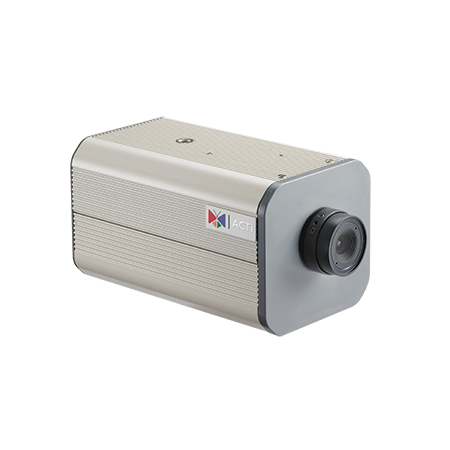

The ACTi KCM-5111 is a 4MP fixed box camera designed for indoor or outdoor surveillance applications when paired with the appropriate housing. It uses a progressive scan CMOS sensor, day/night imaging, mechanical IR cut filtering, and Basic WDR for reliable monitoring in varied lighting conditions.
Key Configuration
4 Megapixel fixed box camera; 1/3.2" progressive scan CMOS image sensor; f2.8mm lens with Basic WDR and 2592(H) x 1944(V) effective pixels.
Key Features
• 4MP maximum resolution for detailed video capture
• Day and Night operation with mechanical IR cut filter
• Minimum illumination of 0.1 lux in color and 0.05 lux in B/W at F2.0
• ISP-based color to B/W switching with 700-1100nm IR sensitivity range
• Electronic shutter supports 1/15-1/2000 second manual mode and 1-1/2000 second auto mode
Technical Context
The progressive scan CMOS sensor supports 4MP imaging with 1561 TV lines of horizontal resolution. The mechanical IR cut filter and day/night switching help maintain color accuracy in daytime scenes and improve monochrome sensitivity in low-light conditions.
Installation Notes
The fixed box form factor is suitable for flexible lens positioning and can be used in indoor or outdoor applications when installed with the correct enclosure and mounting accessories.
| Product Profile | |
| Product Type | Fixed Box |
| Application Environment | Indoor/Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3.2 " |
| Effective Pixels | 2592(H) X 1944(V) (5.04 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE , 2400 K); B/W: 0.05 lux at F2.0 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| Color to B/W Switch | ISP based switch, configurable |
| Electronic Shutter | 1/15-1/2000 second (manual mode, 60 Hz), 1-1/2000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1561 TVL |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Manual focus |
| Lens Mount | CS Mount (interchangeable lens) |
| Horizontal Viewing Angle | 82.6° |
| Video | |
| Compression | H.264 (Baseline), MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 8 fps at 2032 x 1920 15 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 640 x 480 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations Multiple streams based on a single configuration in 4 cropped VGA mode |
| Digital Noise Reduction | DNR |
| Wide Dynamic Range | Basic WDR |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Contrast, Automatic gain control (AGC), Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to storage, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 8.0 or newer |
| Interface | |
| Audio Interface | 3.5mm Phone Jack |
| Auto Iris Connector | External connector for P-Iris lens |
| Digital Input/Output | 2/2 |
| General | |
| Power Source | DC 12V (adapter not included), PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.72 W (DC), 8.64 W (PoE) |
| Weight | 600g (1.32lb) |
| Dimensions | (W x H x D): 76mm x 71.4mm x 126.2mm (2.99" x 2.81" x 4.97") |
| Mount Type | Bracket |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
