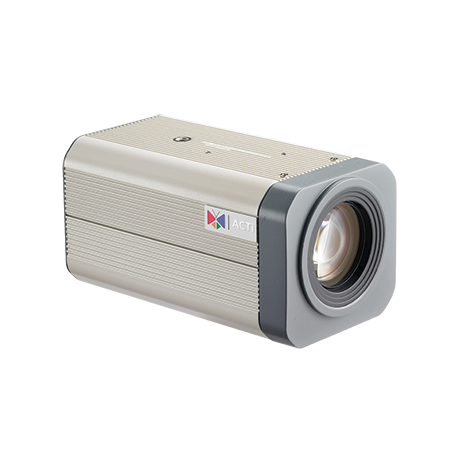

ACTi - KCM-5311 - 2MP 35x Zoom Box with Basic WDR
Product Overview
The ACTi KCM-5311 is a 2MP indoor zoom box camera designed for surveillance applications requiring long optical reach from a fixed camera position. It combines a 35x zoom configuration, day/night operation, progressive scan CMOS imaging, and Basic WDR for clear monitoring in varied indoor lighting.
Key Configuration
2 Megapixel indoor zoom box camera; 1/3.2" progressive scan CMOS image sensor; 35x zoom configuration with Basic WDR and standard low light sensitivity.
Key Features
• 2MP maximum resolution for Full HD surveillance applications
• 35x zoom box design supports detailed viewing at longer distances
• Day and Night operation with mechanical IR cut filter
• Minimum illumination of 0.1 lux in color and 0.05 lux in B/W at F1.65
• ISP-based color to B/W switching with 700-1100nm IR sensitivity range
Technical Context
The camera uses a progressive scan CMOS sensor and 35x zoom capability to support detailed scene inspection from a fixed installation point. Its day/night system and IR sensitivity range allow the camera to transition between color and monochrome imaging as lighting changes.
Installation Notes
The indoor zoom box form factor is suitable for installations where the camera must be aimed at a specific area while retaining the ability to zoom in for detail.
| Product Profile | |
| Product Type | Zoom Box |
| Application Environment | Indoor |
| Maximum Resolution | 2MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3.2 " |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F1.65 (30 IRE , 2400 K); B/W: 0.05 lux at F1.65 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| Color to B/W Switch | ISP based switch, configurable |
| Electronic Shutter | 1/15-1/2000 second (manual mode, 60 Hz), 1/15-1/2000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 956 TVL |
| Lens | |
| Focal Length | Zoom, f3.5-122.5mm |
| Aperture | F1.65-F4.5 |
| Zoom Ratio | 35x optical zoom |
| Zoom Speed | 4 second (wide to tele) |
| Zoom Application | Camera Installation, Auto Zoom by Event, Manual Operation |
| Iris | DC iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 45.4° - 1.6° |
| PTZ | |
| Pan, Tilt or Zoom protocol | Visca, Pelco-D, Pelco-P |
| Video | |
| Compression | H.264 (Baseline/ Main/ High profile), MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 15 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 640 x 480 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Digital Noise Reduction | DNR |
| Wide Dynamic Range | Basic WDR |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Contrast, Automatic gain control (AGC), Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Object Based Motion Detection, Tamper, People Counting, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Crowd Detection, Heat Map, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
| Network | |
| Network Protocol & Service | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, UPnP, SNMP, Bonjour, FTP |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to storage, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 8.0 or newer |
| Interface | |
| Serial Port | 1 x RS-485/RS-422 |
| Audio Interface | 3.5mm Phone Jack |
| Digital Input/Output | 2/2 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.6 W (PoE), 8.64 W (DC) |
| Weight | 680 g (1.50lb) |
| Dimensions | (W x H x D): 76mm x 71.4mm x 138.7mm (2.99" x 2.81" x 5.46") |
| Mount Type | Bracket |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
