ACTi - KCM-7211 - 4MP 3.6x with Basic WDR
Product Overview

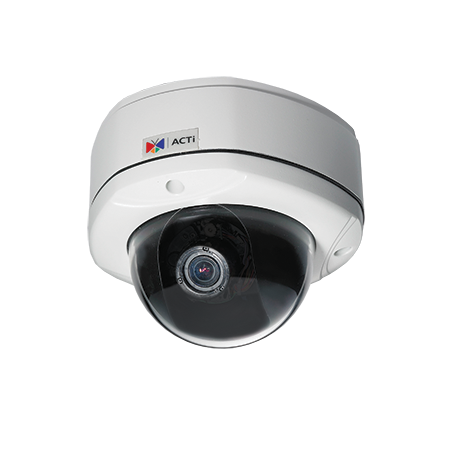

The ACTi KCM-7211 is a 4MP outdoor zoom dome camera designed for detailed surveillance in exterior environments. It combines a 3.6x zoom configuration, Basic WDR support, day/night operation, and an IP66 weatherproof housing for reliable monitoring in changing lighting and weather conditions.
Key Configuration
4MP zoom dome camera; 3.6x zoom; outdoor application environment; 1/3.2 in. Progressive Scan CMOS image sensor; 2592(H) x 1944(V) effective pixels; day/night operation with mechanical IR cut filter; Basic WDR; IP66 weatherproof housing.
Key Features
• 4MP maximum resolution with 2592(H) x 1944(V) effective pixels
• 3.6x zoom dome configuration for flexible scene coverage
• Day/night operation with mechanical IR cut filter
• Basic WDR support for improved image handling in mixed lighting
• IP66 weatherproof rating for outdoor installation
Technical Context
The camera uses a Progressive Scan CMOS sensor and supports standard low-light performance, with color operation specified at 0.1 lux at F1.4 and black-and-white operation at 0.05 lux at F1.4. Its IR sensitivity range is 700~1100nm, and the ISP-based color-to-B/W switch is configurable for day/night transition control.
Installation Notes
The KCM-7211 is intended for outdoor dome installations where weather protection is required. Its IP66-rated housing supports deployment in exposed locations, while the zoom dome format provides adjustable coverage during setup.
| Product Profile | |
| Product Type | Zoom Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3.2 " |
| Effective Pixels | 2592(H) X 1944(V) (5.04 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE , 2400 K); B/W: 0.05 lux at F1.4 (30 IRE, 2400 K) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| Color to B/W Switch | ISP based switch, configurable |
| Electronic Shutter | 1/15-1/2000 second (manual mode, 60 Hz), 1-1/2000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1373 TVL |
| Lens | |
| Focal Length | Zoom, f3.3-12mm |
| Aperture | F1.4-F2.9 |
| Zoom Ratio | 3.6x optical zoom |
| Zoom Speed | 2 second (wide to tele) |
| Zoom Application | Camera Installation, Auto Zoom by Event, Manual Operation |
| Iris | P-Iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 77.2° - 22.6° |
| Viewing Angle Adjustment | Pan: 0°-350°, Tilt: 0°-180°, Rotation: 0°-350° |
| PTZ | |
| Pan, Tilt or Zoom protocol | Visca |
| Video | |
| Compression | H.264 (Baseline), MPEG-4 SP, MJPEG |
| Maximum Frame Rate vs. Resolution | 8 fps at 2032 x 1920 15 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 640 x 480 |
| Bit Rate | 28Kbps - 6Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous dual streams based on two configurations Multiple streams based on a single configuration in 4 cropped VGA mode |
| Digital Noise Reduction | DNR |
| Wide Dynamic Range | Basic WDR |
| Image Orientation | Flip, Mirror |
| Image Enhancement | White Balance, Brightness, Contrast, Automatic gain control (AGC), Flickerless |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Server-based Analytics | Face Detection, Object Based Motion Detection, Tamper, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Exit Area, Appear in Area, Missing Object Detection, Unattended Object Detection, Direction Detection, Vehicle Counting, Heat Map, Automatic License Plate Recognition, Vehicle Speed Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection (3 regions), External device through digital input, |
| Event Response | Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to storage, Upload video or snapshot to FTP server, Activate external device through digital output |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Software Development Kit | Yes |
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 8.0 or newer |
| Interface | |
| Audio Interface | Terminal block |
| Digital Input/Output | 2/2 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 12 W (PoE), 9.6 W (DC) |
| Weight | 1200g (2.65lb) |
| Dimensions | (Ø x H): Outdoor: 151.69mm x 114.9mm (5.97" x 4.52") |
| Environmental Casing | Weatherproof (IP66), Vandal proof |
| Mount Type | Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount |
| Starting Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 10% - 85% RH, non-condensing |
| Approvals | CE, FCC, IP66, UL (for optional PoE injector and power adapter) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
