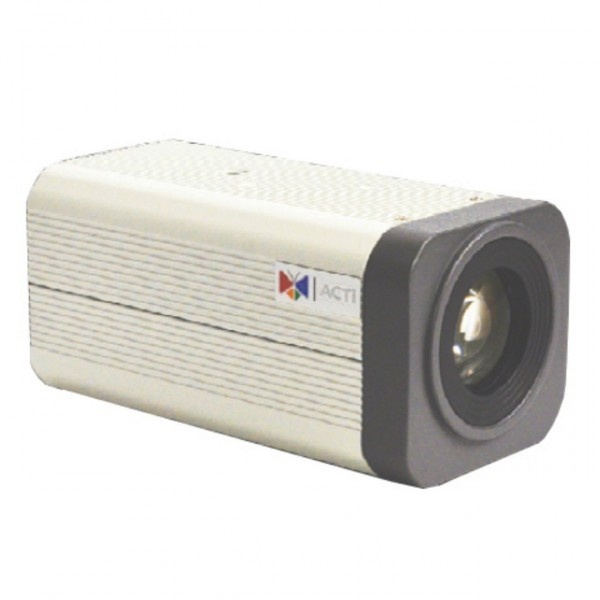

ACTi - KCM5401 - 2MP Indoor Box IP Camera with 26x Optical Zoom

Product Overview

The ACTi KCM-5401 is a 2MP indoor IP camera designed for day and night security surveillance. It features a fixed body design, a 26x optical zoom lens, and a 1/3.2 in. Progressive Scan CMOS sensor for detailed indoor monitoring.

Key Configuration

2MP indoor IP camera; fixed body design; 26x optical zoom; 1/3.2 in. Progressive Scan CMOS sensor; day/night operation with automatic IR cut filter removal in night mode; dual video streaming up to HDTV 1080p at 15 fps; H.264, MPEG-4 SP, and MJPEG compression; PoE power support.

Key Features

• 2MP video resolution for indoor surveillance applications
• 26x optical zoom for detailed viewing of selected areas
• Day/night operation with automatic IR cut filter control
• H.264, MPEG-4 SP, and MJPEG compression support
• Motion detection in three image regions and local flash-card recording

Technical Context

The camera uses a 1/3.2 in. Progressive Scan CMOS sensor and supports two video streams for flexible monitoring and recording. Video can be transmitted at up to HDTV 1080p resolution at 15 fps, while selectable compression formats allow the system to balance image quality, bandwidth use, and storage requirements.

Installation Notes

The KCM-5401 is intended for indoor installations where zoom capability and day/night monitoring are required. PoE support allows power and network data to be delivered through a single Ethernet cable, simplifying camera placement and cabling.
