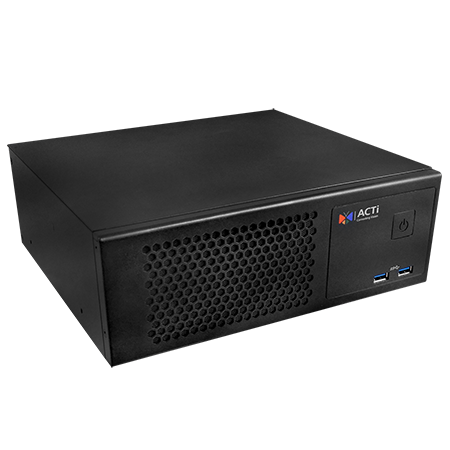

ACTI - MMS-100 - 150-Channel 1-Bay Media Management Station with HDMI, DVI and Display port, 4-channel free license included
Part number:
MMS-100
Price:
MMS-100 is a standalone Media Management Station (MMS) which can send contents to several display servers remotely and show helpful information with one click of a button.
150-Channel 1-Bay Media Management Station with HDMI, DVI and Display port, 4-channel free license included, Supports External Storage (eSATA, iSCSi), 1-Bay (Storage Disks not included), Audio, AC 100-240V
Features:
- 1-bay Standalone Media Management Server
- Intel Core i5-6500TE, 8GB
| Device | |
| Product Type | Media Management Server |
| Maximum Number of Devices | 150 Media Display Servers |
| Hardware | |
| CPU | Intel Core i5-6500TE |
| RAM | 8GB |
| License | |
| License required | Yes |
| Free License | 4 |
| Market Application Suite Features | |
| Dashboard | Yes |
| Device Management | Yes |
| Remote Sync to Device | Yes |
| Customized Layout | Yes |
| Schedule Display | Daily, Weekly, Monthly, Yearly, By Priority |
| Playlist Support | Yes |
| Media Content Management | |
| Video Type | MP4 |
| Image Format | MJPEG, PNG |
| Other Media Content | Web page |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-out |
| Network | |
| Ethernet Port | Total ports: 2 port(s) |
| Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector | |
| System | |
| Server Operating System | Windows 10 IoT |
| USB | 6-Port USB 3.0 |
| Storage | |
| System Drive | M.2 SSD, 256GB |
| Storage Bay | SATA, Max. 1 Disk(s) (Optional for project request) |
| HDD Size | 3.5" |
| Interface | |
| Serial Port | 2 x RS-232 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| External Storage Interface | eSATA, iSCSI |
| Expansion Slots Available | 1 x PCIe 3.0 (x16) |
| Local Display Interface | HDMI x 1, DVI x 1, Display Port x 1, |
| General | |
| Power Source | AC 100-240V |
| Power Supply | 250W |
| Weight | 3172g (6.993lb) |
| Dimensions | (W x H x D): 255mm x 88mm x 230mm (10" x 3.5" x 9.1") |
| Bundled Accessories | Power cord |
| Fan | Yes |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 0% - 85% RH |
| Approvals | CE, FCC |
| Color | Black |
| Warranty | 3 Year(s). For extended warranty offering. |
