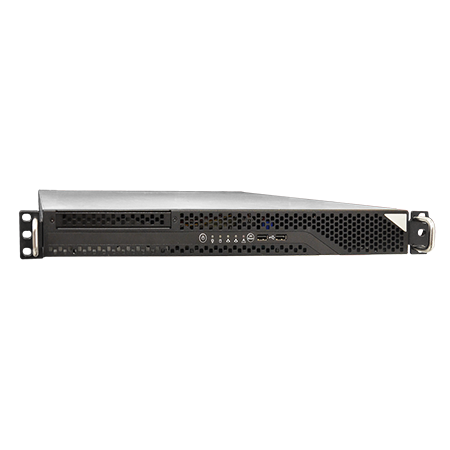

ACTI - PCR-204 - 4-Bay 1U Rackmount Server with Intel Core i7-8700K Processor
Part number:
PCR-204
Price:
4-Bay 1U Rackmount Server with Intel Core i7-8700K Processor, Windows 10, 128GB SSD system drive, HDMI, 4-Bay (Storage Disks not included), USB, AC 100-240V
Features:
- 1-bay 1U Rackmount Server
- Rack Space: 1U
- Intel Core i7-7700, 16GB
| Device | |
| Product Type | Server |
| Hardware | |
| CPU | Intel Core i7-7700 |
| RAM | 16GB, DDR4, 2666MT/s |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Network | |
| Ethernet Port | 2 x Ethernet (1000 Base-T), RJ-45 connector |
| System | |
| Server Operating System | Windows 10 IoT |
| USB | 4-Port USB 2.0, 4-Port USB 3.0 |
| Storage | |
| System Drive | SSD, 256GB |
| Storage Bay | SATA, Max. 1 Disk(s) (without storage disks) |
| HDD Size | 3.5" |
| Interface | |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Expansion Slots Available | 3 x PCIe 3.0 (x1) |
| 2 x PCIe 3.0 (x16) | |
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, DVI x 1, Display Port x 1 |
| General | |
| Power Source | AC 100-240V |
| Power Supply | 315W |
| Dimensions | (W x H x D): 393.2mm x 43.5mm x 430mm (15.48" x 1.71" x 16.93") |
| Rack Space: 1U | |
| Bundled Accessories | Power cord |
| Mount Type | Rack mounts |
| Fan | Yes |
| Color | Silver |
| Warranty | 3 Year(s). For extended warranty offering. |
