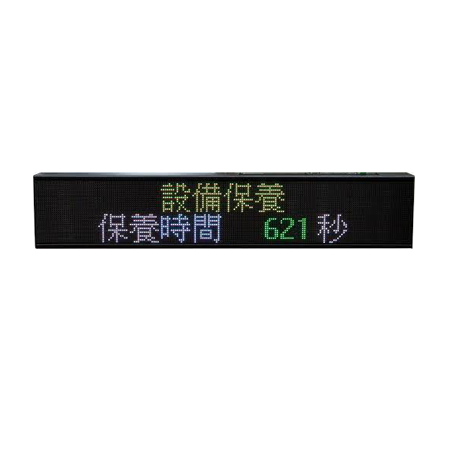

LED Display AC110V / AC220V
| Product Profile | |
|---|---|
| Original Manufacturer | SEASON |
| Product Type | Dot Matrix Display |
| Original Model | L15F-E2-S-I |
| Application Environment | Indoor |
| Description | LED Display AC110V / AC220V |
| Pixel Pitch | 5 mm |
| Brightness | ≥ 2800 cd/㎡ |
| Text Color | 7 colors (Red, Green, Yellow, Blue, Purple, Light Blue, White) |
| LED Resolution | 128(W) x 32(H) |
| Character Set | ASCII, Big5, GBK |
| Supported Protocols | Modbus TCP/IP |
| Network | |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| General | |
| Power Source | AC 110V, AC 220V |
| Dimensions | (W x H x D): 640mm x 200mm x 120mm (25.20" x 7.88" x 7.42") |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Material | Aluminum extrusion |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
PDIS-0002_Datasheet_20251102.pdf
0.1mb
