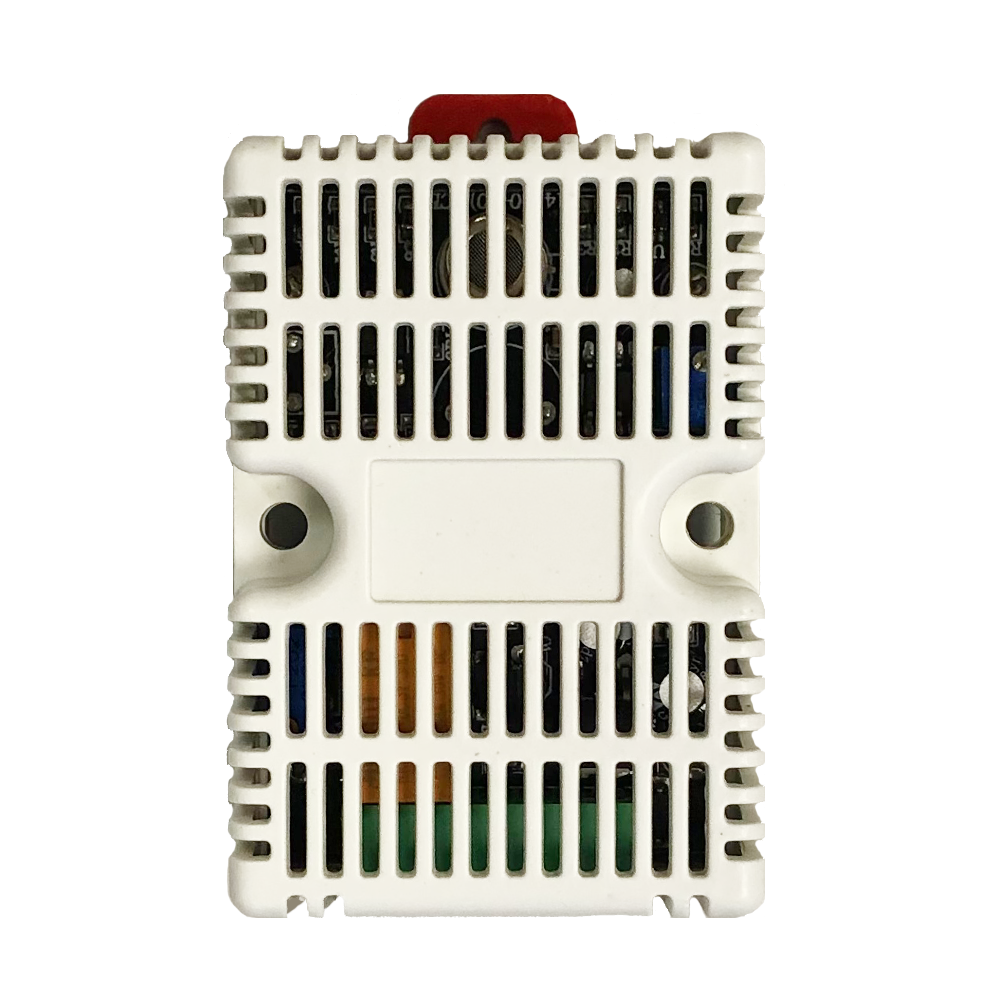

ACTi - PDTR-0001 - Cigarette Smoke Detector DC 7-12V
Part number:
PDTR-0001
Price:
Cigarette Smoke Detector DC 7-12V
| Device | - |
| Product Type | Smoke Detector |
| Description | Cigarette Smoke Detector DC 7-12V |
| Gas Detected | hydrogen, alcohol, carbon monoxide, smoke of cigarette |
| Gas Detection Range | hydrogen: 10-1000 ppm |
| alcohol: 10-1000 ppm | |
| carbon monoxide: 10-500 ppm | |
| Interface | - |
| Relay Output | Relay Output (3A) x 1 |
| General | - |
| Device Sensitivity | ≥3% |
| Response Time | ≤300ms |
| Output Contact | N.C., N.O., COM |
| Power Source | DC 7-12V (adapter not included) |
| Working Current | 120mA |
| Preheating Time | 3-5 Minutes |
| Weight | 40g (0.08lb) |
| Dimensions | (W x H x D): 65mm x 45mm x 28mm (2.56" x 1.77" x 1.10") |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | ≤95% RH |
| Expected Life | 5 years |
| Warranty | 1 Year(s) |
