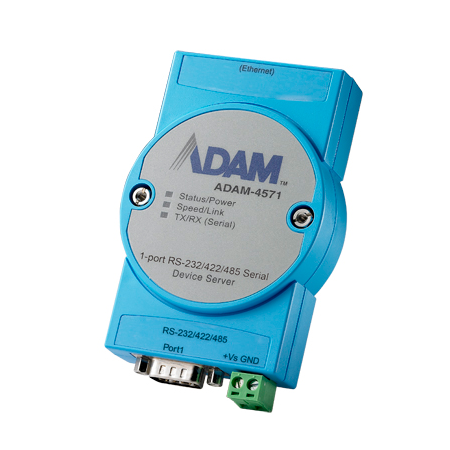

ACTi - PIOB-0200 - Advantech ADAM-4571 1-Port RS-232/422/485 Network I/O Module
Part number:
PIOB-0200
Price:
Advantech ADAM-4571 1-Port RS-232/422/485 Network I/O Module
| Device | - |
| Original Manufacturer | Advantech |
| Product Type | Network IO Module |
| Original Model | ADAM-4571-CE |
| Description | 1-Port RS-232/422/485 Network I/O Module |
| Network | - |
| Network Protocol & Service | ARP, ICMP, IP, TCP, UDP, Telnet, SNMP, HTTP, DNS, SMTP, BOOTP, DHCP Client, Auto IP |
| Ethernet Port | Non-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector |
| Interface | - |
| Serial Port | 1 x RS-485/RS-422/RS-232 |
| Digital Input/Output | 06-Jun |
| General | - |
| Power Source | DC 10-30V |
| Weight | 135g (0.298lb) |
| Dimensions | (W x H x D): 130mm x 30mm x 70mm (5.11" x 1.18" x 2.75") |
| Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Storage Temperature | -20 °C ~ 80 °C (-4 °F ~ 176 °F) |
| Approvals | CE, FCC |
| Warranty | 1 Year(s) |
