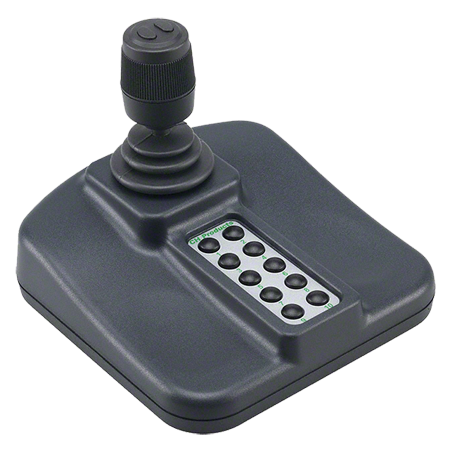

Apem 100-550-BLK-RF Joystick for PTZ Control (for all ENR, INR, and MNR Series).
Features:
- 3 axis joysticks for PTZ control
- USB 1.1 HID compliant controller
- Programmable pushbutton switches
- Easy to use and operate
- Compatible with ACTi's video management system
| Device | |
| Original Manufacturer | APEM |
| Product Type | Joystick |
| Original Model | 100-550-BLK-RF |
| Application Environment | Indoor |
| Description | Joystick for PTZ Control (for all ENR, INR, and MNR Series) |
| Joystick Performance | Hall effect three axis joystick; X/Y/Z for positioning control |
| Joystick Travel | 36˚ for X and Y axis; 60˚ f or Z axis |
| Centering | Single spring, Omni-Directional |
| Pushbutton performance | 10 tactile pushbuttons on housing; Two tactile pushbuttons on joystick; 3,000,000 cycles |
| Supported Protocols | USB HID 1.1 controller, Direct X, Joystick: Three HID axes, Pushbuttons: 12 HID buttons, Standard DirectX HID drivers |
| System |
| Operating System | Windows 7, Windows XP, Windows 8, Mac OS, Linux |
| Integration |
| Unified Solution | Fully compatible with ACTi video management system |
| Interface |
| Joystick Connectors | USB Type A Male; Cable Length: 2m (6.8") |
| General |
| Power Source | DC 5V, via USB interface |
| Power Consumption | 32mA |
| Weight | 440g (0.970lb) |
| Dimensions | (W x H x D): 156.46mm x 127.76mm x 168.66mm (6.15" x 5.02" x 6.64") |
| Operating Temperature | -25°C ~ 85°C (-13°F ~ 185°F) |
| Approvals | EN 55024:1998, EN 55022, CE, FCC Class B, RoHS compliant |
| Color | Black |
| Material | Joystick shaft: Stainless Steel Joystick boot: Neoprene Joystick handle: Glass filled nylon Desktop housing: High impact ABS |
| Warranty | 1 Year(s) |
