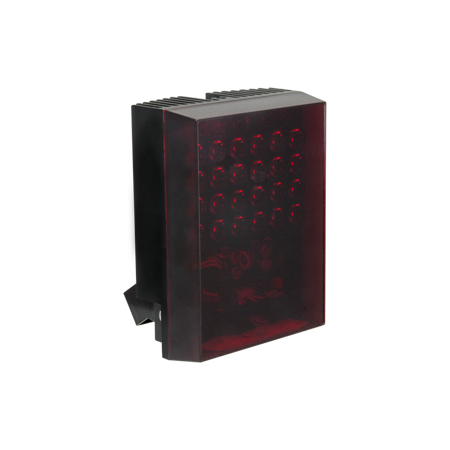

ACTi - PLED-0201 - IR Illuminator 25° Angle, with 50m Approx. Range
Part number:
PLED-0201
Price:
SPINLUX (SL-A2IRXX25-24CL) IR Illuminator 25° Angle with 50 m approx. range
| Device | |
| Original Manufacturer | Spinlux |
| Product Type | IR LED Illuminator |
| Original Model | SL-A2IRXX25-24CL |
| Description | IR Illuminator 25° Angle , with 50 m approx. range |
| IR Working Distance | 50m |
| General |
| Wavelength | 850 nm |
| Illuminating Angle | 25° |
| Power Source | DC 12V |
| Weight | 940.5g (2.073lb) |
| Dimensions | (W x H x D): 105mm x 54mm x 154mm (4.1" x 2.1" x 6") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Operating Temperature | -50°C ~ 50°C (-58°F ~ 122°F) |
| Approvals | CE, FCC, VCCI, C-Tick, IP66, IK10 |
| Color | Black |
| Material | Plastic Aluminum |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
