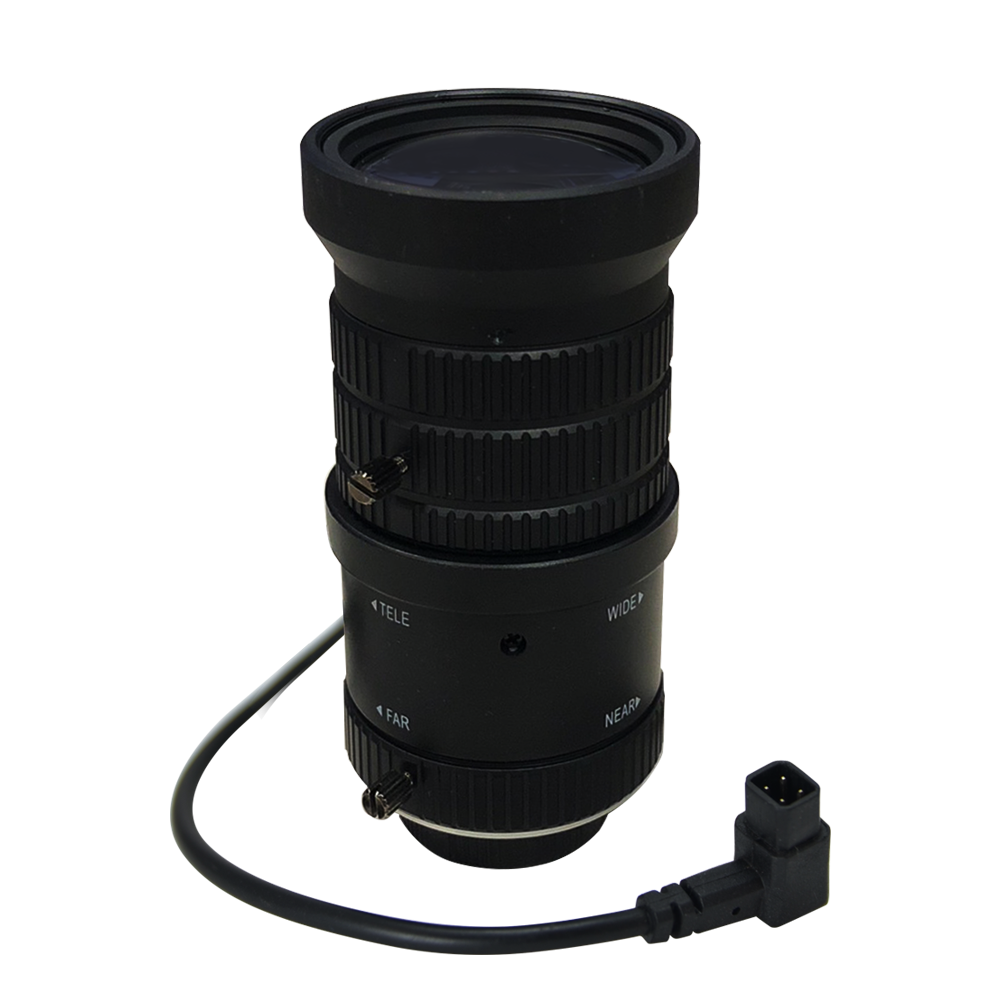

ACTi - PLEN-2213 - Vari-focal Lens

Product Overview

The PLEN-2213 is a vari-focal lens designed for security camera applications requiring adjustable focal coverage. It supports day/night operation and uses a 1/2.7 in. sensor format, making it suitable for camera installations where manual framing and focus adjustment are needed.

Key Configuration

Vari-focal lens product type; 1/2.7 in. sensor size support; day/night operation; 5.0-50mm vari-focal focal length; F1.4 aperture with DC iris and CS mount.

Key Features

• Vari-focal 5.0-50mm focal length supports adjustable field-of-view setup
• F1.4 aperture supports light intake for surveillance imaging
• DC iris supports automatic iris control with compatible cameras
• Manual focus allows precise scene adjustment during installation
• CS mount supports compatibility with cameras using CS lens mounting

Technical Context

The lens provides adjustable focal length from 5.0mm to 50mm, allowing installers to tune the field of view from wider monitoring to more focused long-range framing. The DC iris helps regulate light entering the camera when paired with compatible camera hardware.

Installation Notes

The PLEN-2213 uses a CS mount and manual focus adjustment. The lens weighs 204.5g / 0.451 lb and carries a 1-year warranty.
