ACTI - PMAX-0204 - Heavy-Duty Outdoor Camera Housing with Bracket
Part number:
PMAX-0204
Price:

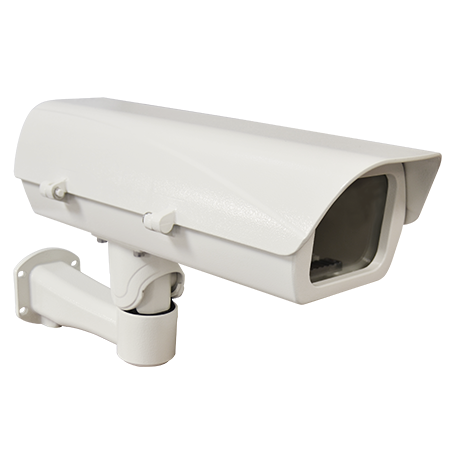

The PMAX-0204 is a heavy-duty outdoor box camera housing with an integrated heater and fan (110V) and an included bracket. The housing features an IP68 weatherproof rating and an IK10 vandal-resistant metal casing. It is constructed of aluminum and operates in temperatures from -30°C to 50°C. Heater and fan enable operation in low-temperature environments. Approvals: CE, IP68, IK10. Warranty: 1 year.
Key Configuration
- • Product type: box camera housing
- • Power source: AC 110V
- • Dimensions (W × H × D): 462.7 × 171 × 256 mm (18.22" × 6.73" × 10.08")
- • Weight: 3061.5 g (6.75 lb)
- • Material: aluminum
• Color: white
| Description / Bracket | Heavy Duty Outdoor Housing with Heater and Fan (110V) and Bracket |
| General | |
| Power Source | AC 110V |
| Weight | 3061.5 g (6.75 lb) |
| Dimensions (W x H x D) | 462.7 mm × 171 mm × 256 mm (18.22" × 6.73" × 10.08") |
| Environmental & Protection | |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Fan | Yes |
| Heater | Yes |
| Operating Environment | |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Certifications & Physical | |
| Approvals | CE, IP68, IK10 (metal casing) |
| Color | White |
| Material | Aluminum |
