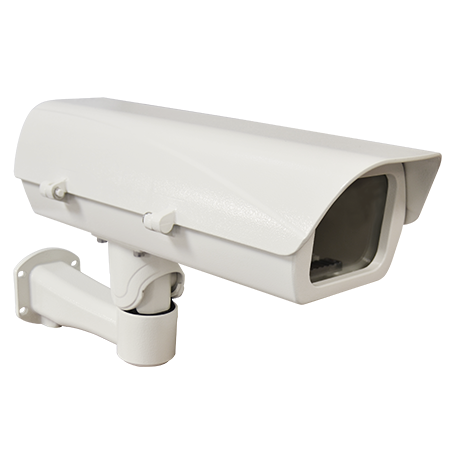

ACTi - PMAX-0206 - PoE Heavy Duty Outdoor Housing with Heater, Fan, Defogger and Bracket
Part number:
PMAX-0206
Price:
PoE Heavy Duty Outdoor Housing with Heater, Fan, Defogger and Bracket
| Device | |
| Product Type | Box Camera Housing |
| Description | PoE Heavy Duty Outdoor Housing with Heater, Fan, Defogger and Bracket |
| Video |
| Image Enhancement | Defogging |
| General |
| PoE Standard | IEEE 802.3at |
| PoE Output | Maximum 60 Watts per port |
| PoE Power Budget | Maximum 60 W |
| Power Source | High PoE |
| Weight | 3145g (6.93lb) |
| Dimensions | (W x H x D): 462.7mm x 171mm x 256mm (18.22" x 6.73" x 10.08") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Fan | Yes |
| Heater | Yes |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Approvals | CE, IP68, IK10 (metal casing) |
| Color | White |
| Material | Aluminum |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
File
Quick Installation Guide
0.2mb
