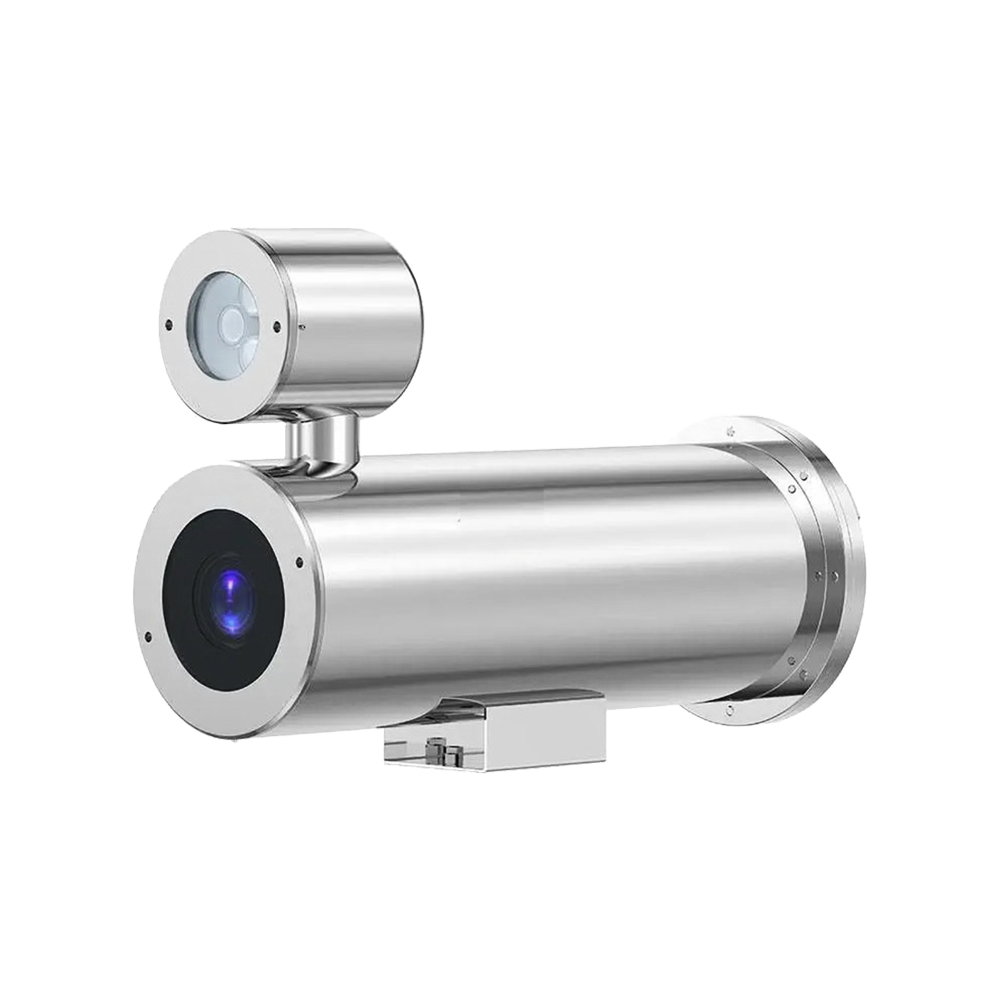

PoE Explosion Proof Housing with Heater, IR and Fan for E2X, B2X, A2X.
| Product Profile | |
|---|---|
| Product Type | Box Camera Housing |
| Description | PoE Explosion Proof Housing with Heater, IR and Fan (for E2X, B2X, A2X) |
| IR LED | IR LED (850 nm) |
| IR Working Distance | 100m |
| General | |
| Power Source | PoE Class 4 (IEEE802.3at) |
| Power Consumption | 25.5 W (PoE, heater, fan and IR on) |
| Weight | 13000g (28.66lb) |
| Dimensions | (L x W x H): 484mm x 172mm x 286mm (19" x 6.7" x 11.3") |
| Environmental Casing | Weatherproof (IP68) |
| Fan | Yes |
| Heater | Yes |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 6KV |
| Approvals | IP68, ATEX Ex II 2G Ex db op is ⅡC T6 Gb, ATEX Ex II 2D Ex tb op is ⅢC T80ºC Db, Ex db IIC T6 Gb, Ex tb IIIC T80℃ Db |
| Color | Silver |
| Material | Stainless Steel 316 |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
PMAX-0233_Dimension_Diagram_20250624.pdf
0mb
File
PMAX-0233_PMAX-0234_QIG_20250804_0.pdf
0.9mb
